INSTALLATION AND OPERATION GUIDE
19
MOUNTING THE UNIT
The MODEL TR&TC units require the following minimum physical clearances:
• Front: 24˝ (61 cm)
• Back: 0˝ (0 cm)
• Sides: 1˝ (2.5 cm)
• Top: 10˝ (25.4 cm) [18˝ (45.7 cm) recommended]
• Bottom: 15.5˝ (39.4 cm) [24˝ (61 cm) recommended]

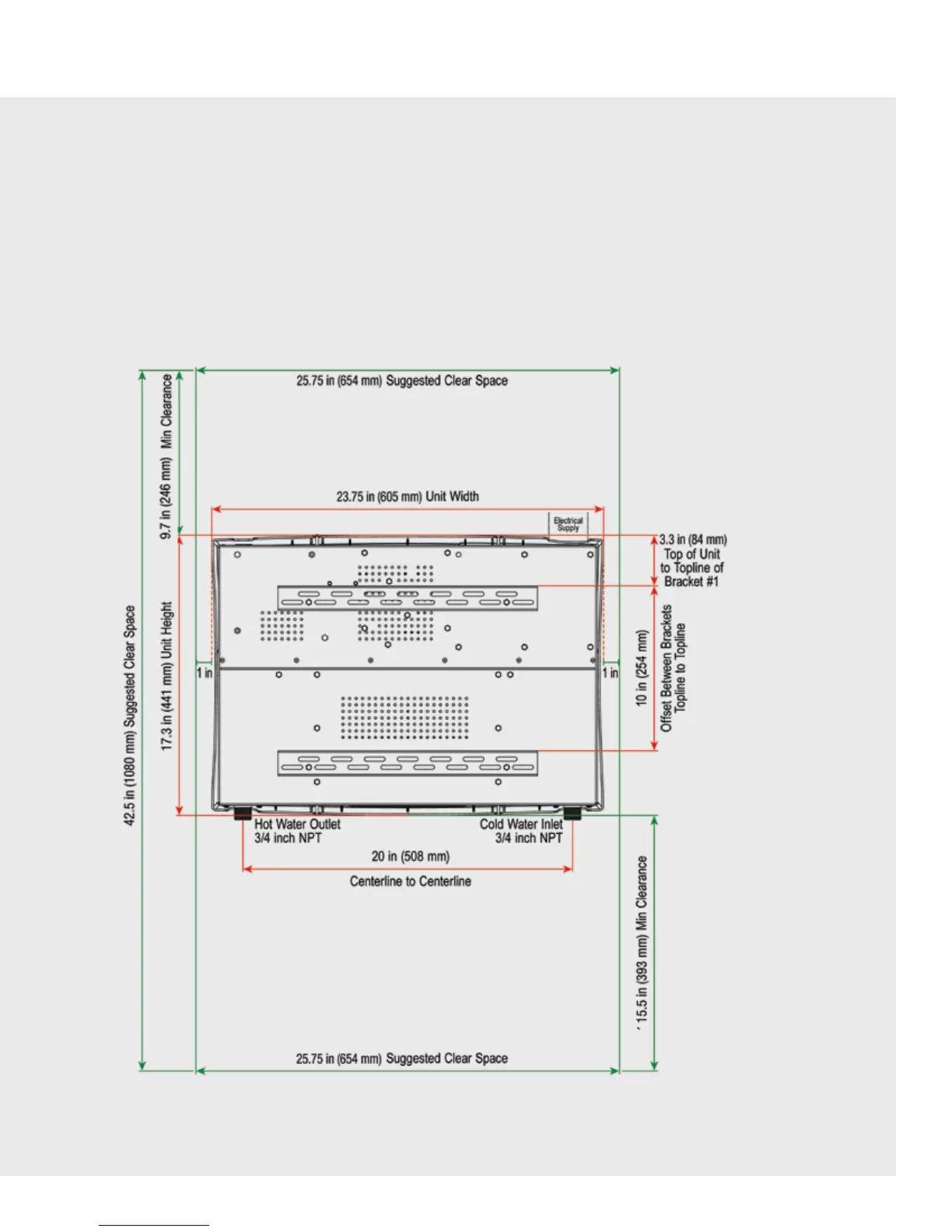

Figure 1. Physical Clearances
