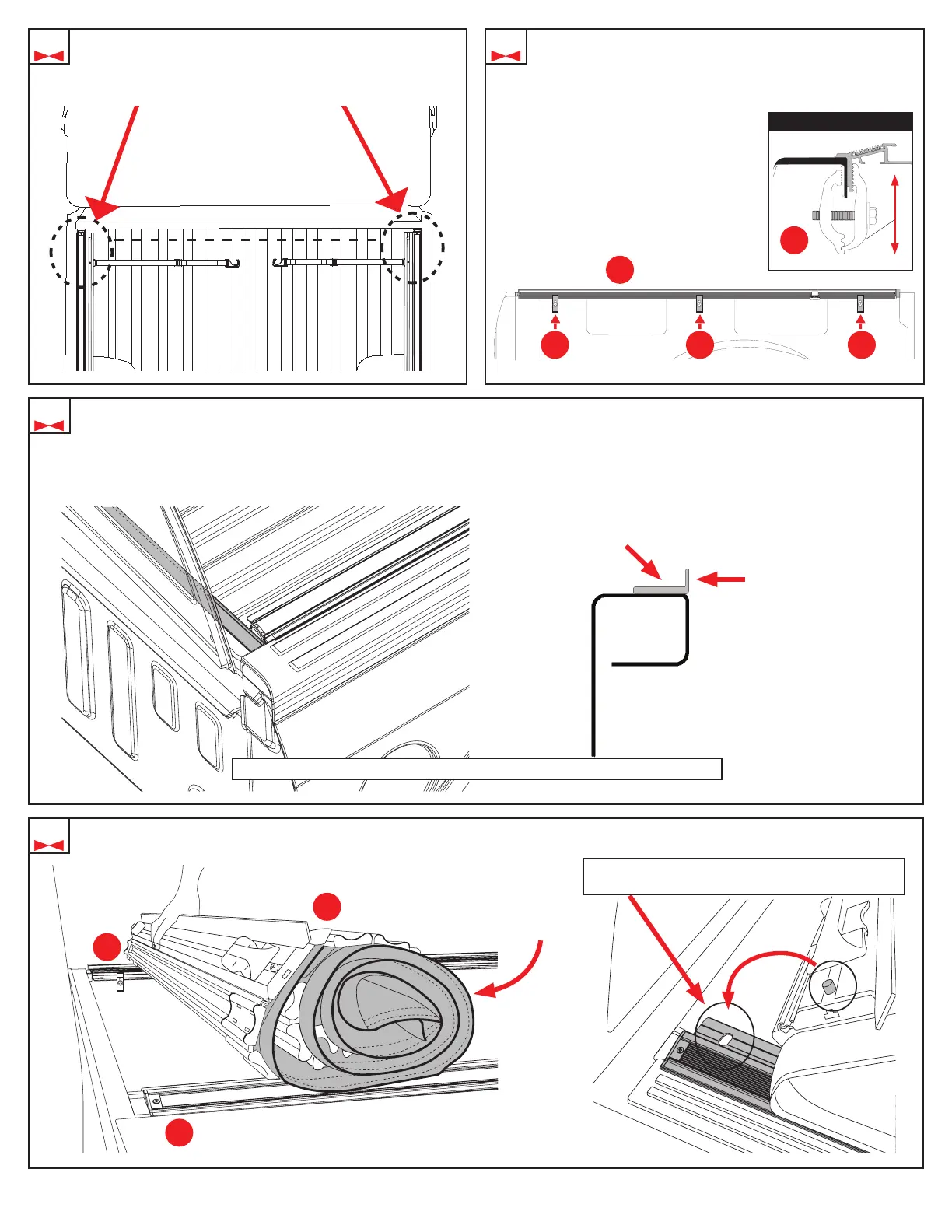

To ensure cover assembly (A) is square for proper
operation, make sure attachment holes on the driver
and passenger side rails rails (B & C) are lined up across
from each other.
B
LEVEL
D
Place the cover assembly (A) on the side rails (B & C) towards the front of the truck bed (near the cab).
D
4 5
7
D D
A
B
C
NOTE: The rail may need to be forced upward
slightly to allow the screw head to drop in the slot.
Attach clamps (D) starting in the middle. Evenly space
3 clamps along the driver side rail (B), leaving
approximately 8” on each end. Finger tighten to make sure
the teeth of the clamp engage with the grooves of the side
rail. Then tighten all clamps with a
1/2” socket or wrench. Repeat steps
3-6 on the passenger side rail (C).
6
If your pickup has factory bed caps you will need to install the bulkhead seal (E) provided. Clean the area where the seal
will go with soap and water to remove dirt and debris. Then clean the area with isopropyl alcohol to remove wax or
grease and to evaporate any remaining water, allow the surface to dry. Peel the backing paper o and adhere the seal from
one bed rail edge to the other. Remove any excess with scissors or a utility knife. Then apply pressure to the entire seal to
make sure the adhesion is good.
NOTE: Position bulkhead seal tight against rail endplug seal and bedcap.
Cab
Bulkhead Seal
Inside of
Truck Bed
Position bulkhead seal
ush with the inside edge
of bulkhead.
