 BOX

Description

This command draws rectangles on the label.

Syntax

BOX x,y,x_end,y_end,line thickness[,radius]

Parameter

Description

Specify x-coordinate of upper left corner (in dots)

Specify y-coordinate of upper left corner (in dots)

x_end

Specify x-coordinate of lower right corner (in dots)

y_end

Specify y-coordinate of lower right corner (in dots)

line thickness

Line thickness (in dots)

radius

Optional. Specify the round corner. Default is 0.

*Since V5.28 EZ

Note:

 200 DPI: 1 mm = 8 dots

300 DPI: 1 mm = 12 dots

 Recommended max. thickness of box is 12 mm at 4” width. Thickness of box larger than 12

mm may damage the power supply and affect the print quality. Max. print ratio is different

for each printer model. Desktop and industrial printer print ratio is limited to 20% and 30%

respectively.

Example

Sample code

SIZE 4,1.1

CLS

BOX 60,60,610,210,4

BOX 80,80,590,190,4

BOX 100,100,570,170,4,20

BOX 120,120,550,150,4,20

PRINT 1

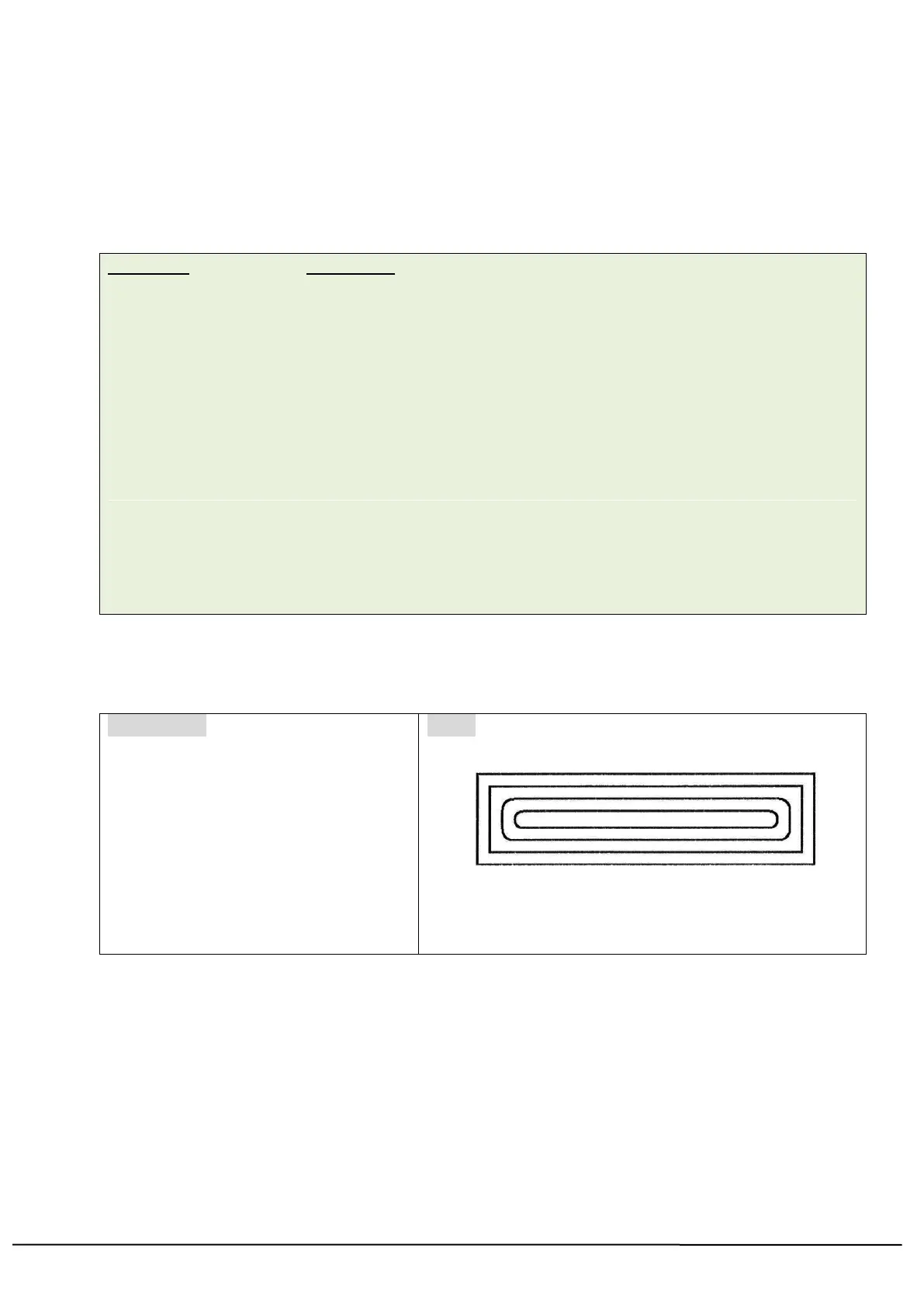

Result

TSC M23 Programming Manual
