TSC Printronix MB240 Series User Manual

35

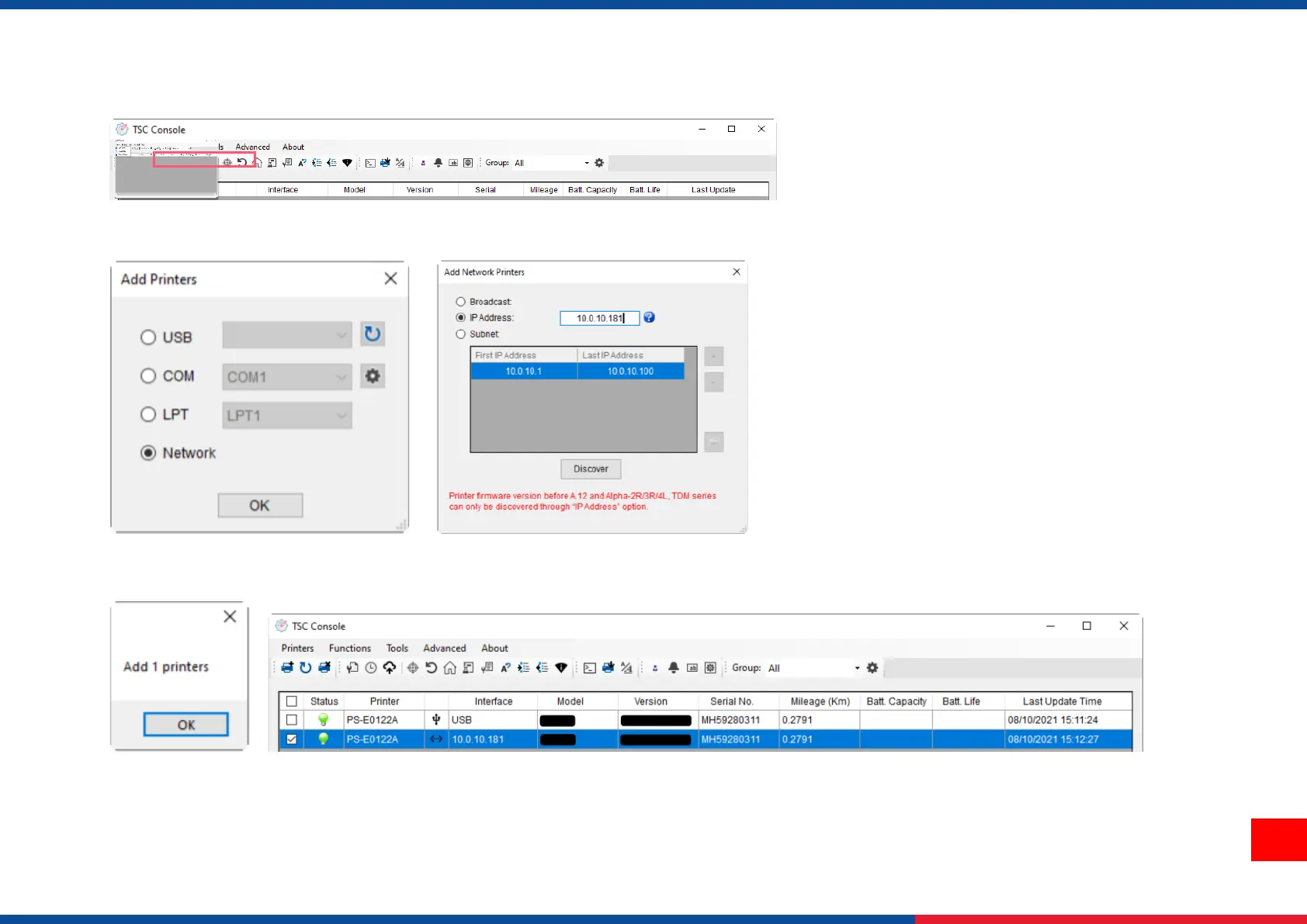

◼ Return to TSC Console main page > Click Add Printer on the top left of the window.
◼ Choose Network > Key in the IP Address > Click Discover to establish the Ethernet interface.
◼ The notification will pop up > Click OK to close the window > The Ethernet interface will be shown on TSC Console.

TSC Printronix MB240 Series Specifications

General

Type	Industrial Barcode Printer
Resolution	203 dpi (8 dots/mm)
Media Type	Direct Thermal, Thermal Transfer
Communication Interface	USB, Serial, Ethernet
Interface	USB 2.0, RS-232, Parallel, Ethernet 10/100
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, PDF417, QR Code, Data Matrix
Scanning Method	Thermal Transfer/Direct Thermal
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
