TSC Printronix MB240 Series User Manual

29
4.2 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
Ribbon wrinkle is related to the media width, thickness, printhead pressure balance, ribbon film characteristics, print darkness
setting…etc. In case the ribbon wrinkle happens, please follow the instructions below to adjust the printer parts.

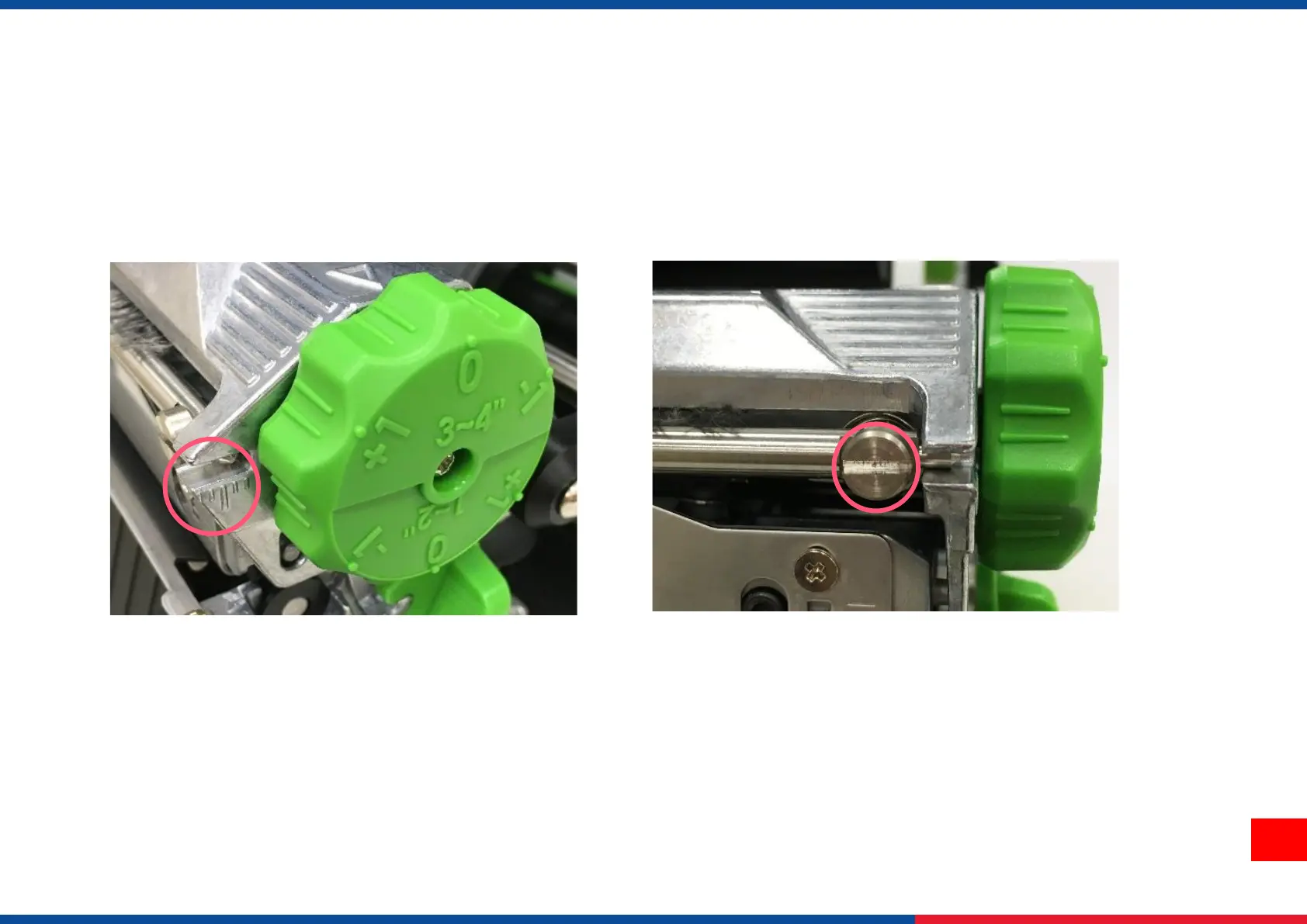

Ribbon Tension Adjustment Knob has 5 indexes for adjustment. Use flat screw driver to change the ribbon tension.

TSC Printronix MB240 Series Specifications

General

Type	Industrial Barcode Printer
Resolution	203 dpi (8 dots/mm)
Media Type	Direct Thermal, Thermal Transfer
Communication Interface	USB, Serial, Ethernet
Interface	USB 2.0, RS-232, Parallel, Ethernet 10/100
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, PDF417, QR Code, Data Matrix
Scanning Method	Thermal Transfer/Direct Thermal
Operating Temperature	41°F to 104°F (5°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
