TSC Printronix MB240T User Manual

25

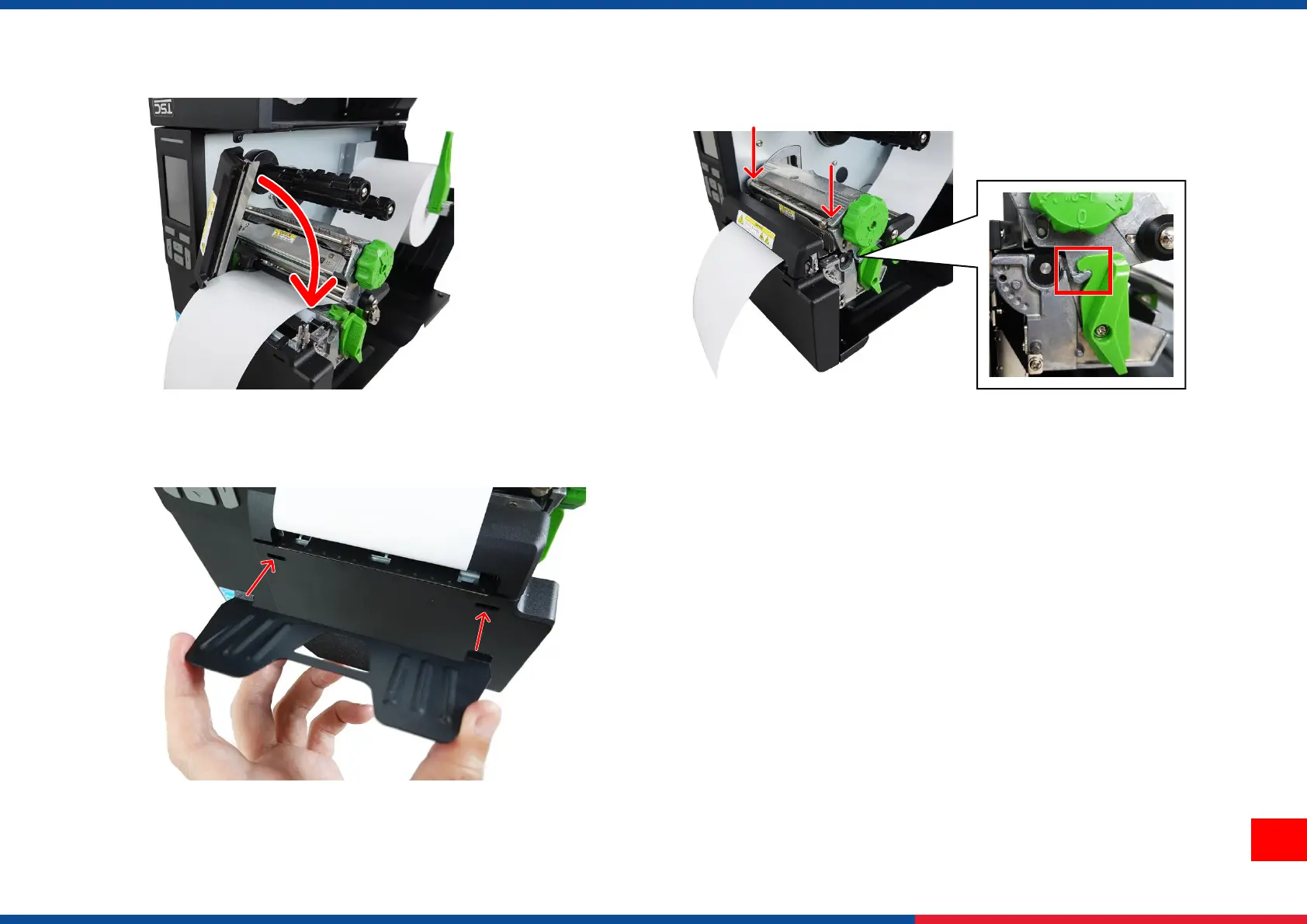

8. Close the cutter until it clicks in place.
9. Close the printhead ensuring that the printhead is correctly
locked by the printhead release lever.
10. (For cutter module only) Insert the ribs on the label tray into
its corresponding opening on the front panel of the cutter
module.
11. Close the media cover.
For models shipped with the linerless cutter module, you
can start using the printer.
For models shipped with the linerless tear-off module, you
need to configure the printer before using it. For how to
configure the printer, please refer to 6.9.1 Configuring the
Printer and Setting Options for the Linerless Media.

TSC Printronix MB240T Specifications

General

Type	Industrial Barcode Printer
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Max. Print Speed	6 ips
Max. Print Width	4.09" (104 mm)
Media Type	Label, Tag, Ticket
Media Core Diameter	1" (25.4 mm)
Ribbon Core Diameter	1 inch
Interface	USB, Serial, Ethernet
Power	100-240 VAC, 50/60 Hz
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET, PDF417, QR Code, Data Matrix, MaxiCode
Operating Temperature	41°F to 104°F (5°C to 40°C)
