TSC Printronix MB240T User Manual

35

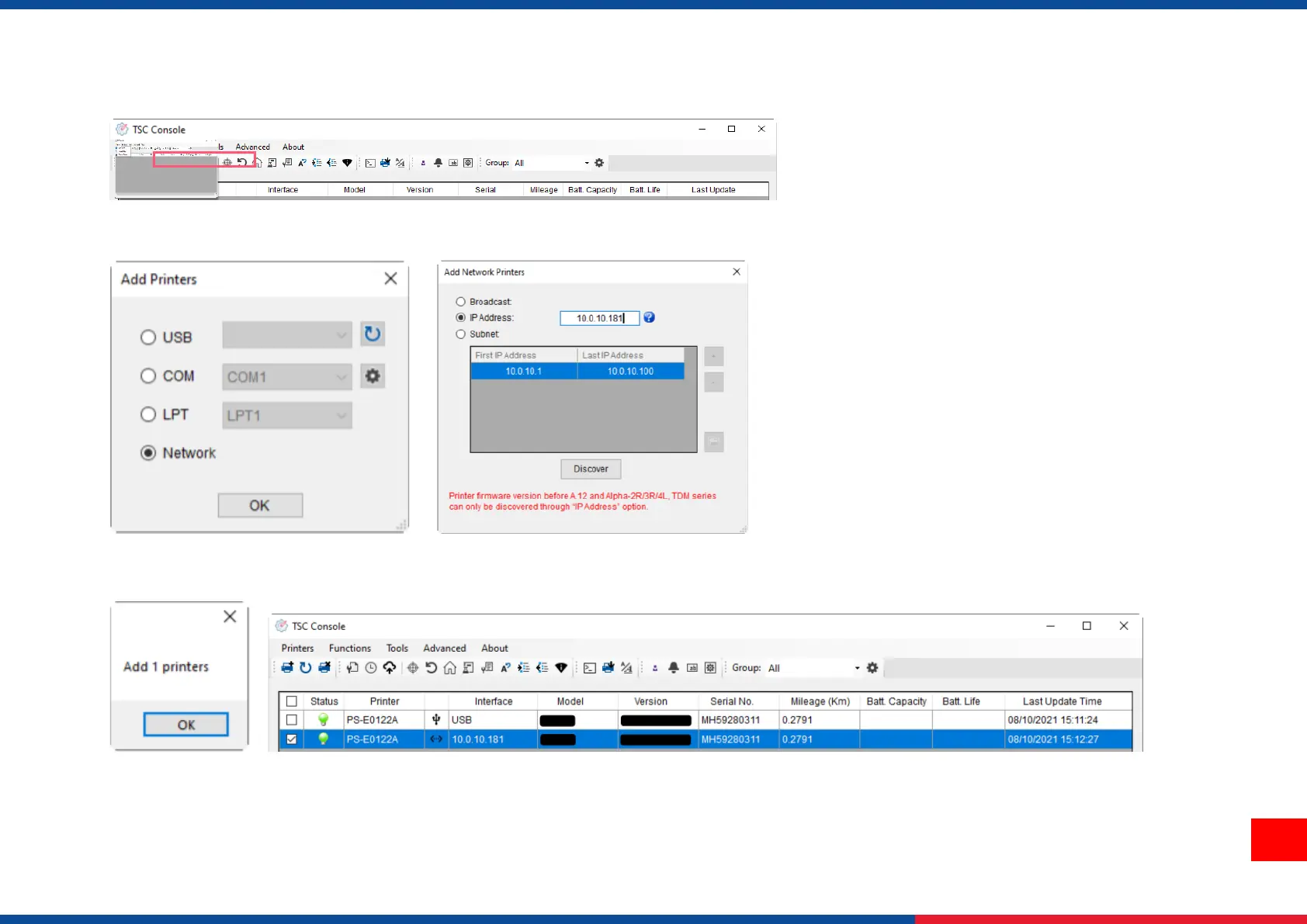

◼ Return to TSC Console main page > Click Add Printer on the top left of the window.
◼ Choose Network > Key in the IP Address > Click Discover to establish the Ethernet interface.
◼ The notification will pop up > Click OK to close the window > The Ethernet interface will be shown on TSC Console.

TSC Printronix MB240T Specifications

General

Type	Industrial Barcode Printer
Print Method	Thermal Transfer/Direct Thermal
Resolution	203 dpi
Max. Print Speed	6 ips
Max. Print Width	4.09" (104 mm)
Media Type	Label, Tag, Ticket
Media Core Diameter	1" (25.4 mm)
Ribbon Core Diameter	1 inch
Interface	USB, Serial, Ethernet
Power	100-240 VAC, 50/60 Hz
Supported Barcodes	Code 39, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, Interleaved 2 of 5, Codabar, POSTNET, PDF417, QR Code, Data Matrix, MaxiCode
Operating Temperature	41°F to 104°F (5°C to 40°C)
