2.2 Printer Overview

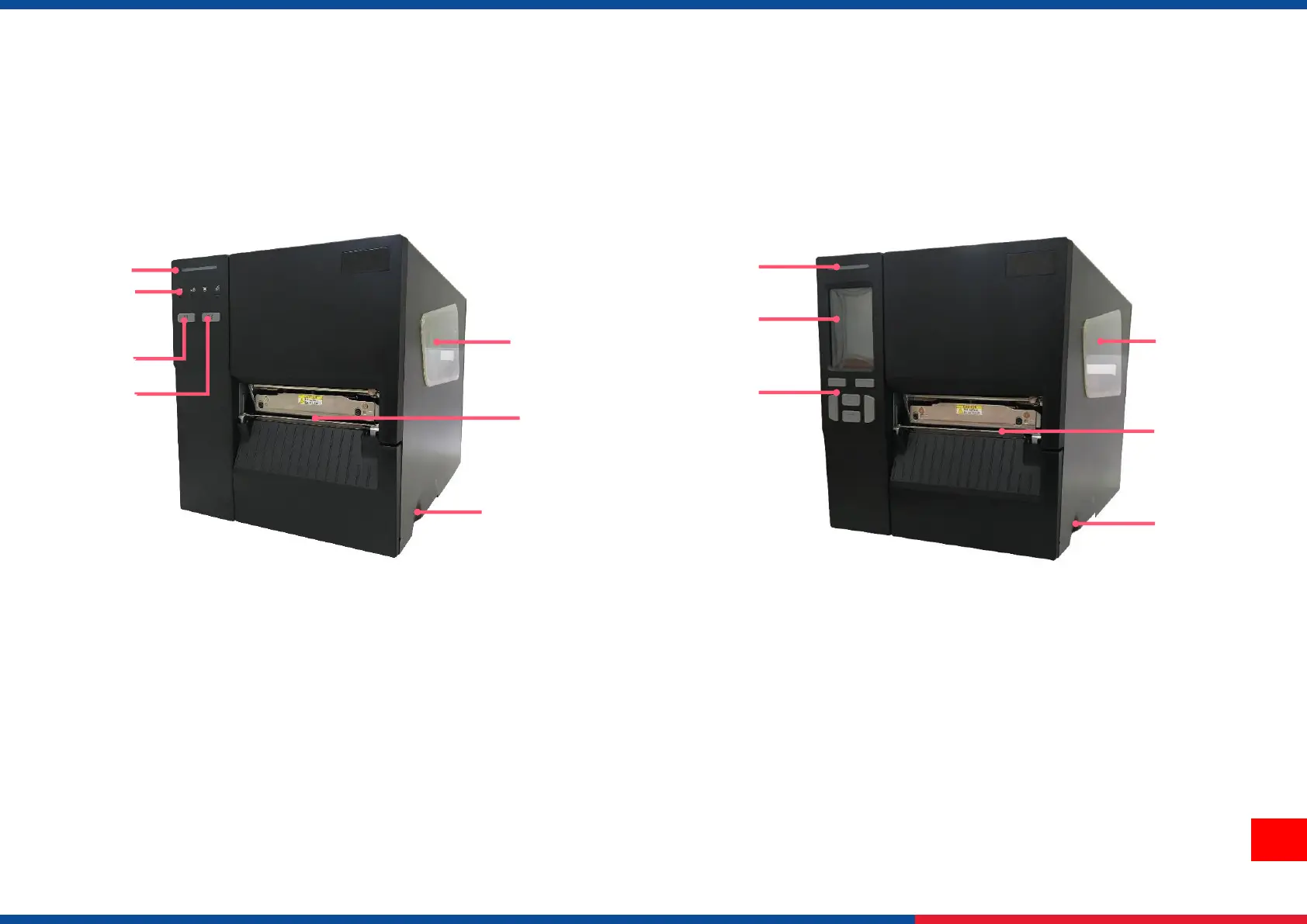

2.2.1 Front View
MB240/MB240T Series
1. LED indicator
2. Icons and LED indicators
3. Pause button
4. Feed button
5. Media view window
6. Paper exit chute
7. Media cover handle
1. LED indicator
2. LCD touch display
3. Front panel buttons
4. Media view window
5. Paper exit chute
6. Media cover handle
1
4
2
5
3
6
1
5
6
3
7
2
4
