TSI Instruments 5200 Series Quick Start Guide

4 Gas Flow Multi-Meter 5200 Series
Setup Basics

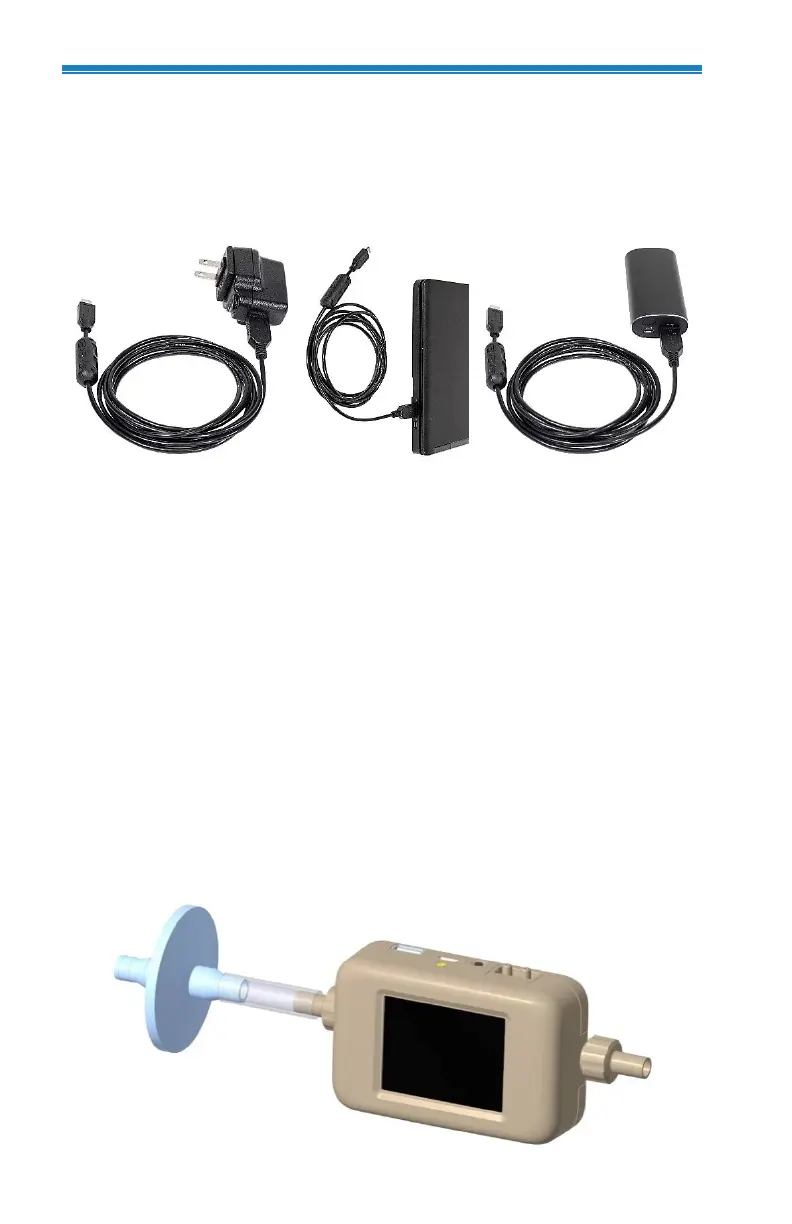

Supplying Power
Connect the USB cable from the USB-C port on the meter to the
USB-A port of: 1) the 5000 Series power supply, 2) a computer, or
3) other USB sources that can provide 5 VDC.
USB Hub Cable
Some computer USB ports are not capable of sufficiently powering up
the Meter. If you are unable to power your Meter from the computer,
connect the USBC-A power cable to the provided USB hub cable and
plug the hub cable into the computer.
Turning Meter ON/OFF
The Meter may power itself on when connected to a power source. If
not, press the power button to turn the Meter on. To turn the meter off,
press and hold the power button for 5 seconds.
Connect Inlet Filter
TSI
®
recommends an inlet filter be used at all times while operating the
Flow Multi-Meter.
