Setting-up 5
Connecting Ventilation or IAQ Probes
The ventilation and IAQ probes have a overmolding on the
mini-DIN connector which must align with the connector at the base of
the 9565 series meter. This will ensure the probe is properly
connected and remains so during use. Once connected and turned
on, refer to the DISPLAY SETUP for displaying the desired
measurements.
Using the Telescoping Thermoanemometer Probes
The telescoping probe contains the velocity, temperature, and
humidity sensors. When using the probe, make sure the sensor
window is fully exposed and the orientation dimple is facing upstream.
For temperature and humidity measurements, make sure that at
least 3 inches (7.5 cm) of the probe is in the flow to allow the
temperature and humidity sensors to be in the air stream.
Extending the Probe
To extend the probe, hold the handle in one hand while pulling on
the probe tip with the other hand. Do not hold the cable while
extending the probe as this prevents the robe from extending.
Retracting the Probe
To retract the probe, hold the handle in one hand while gently
pulling the probe cable until the smallest antenna section is
retracted.

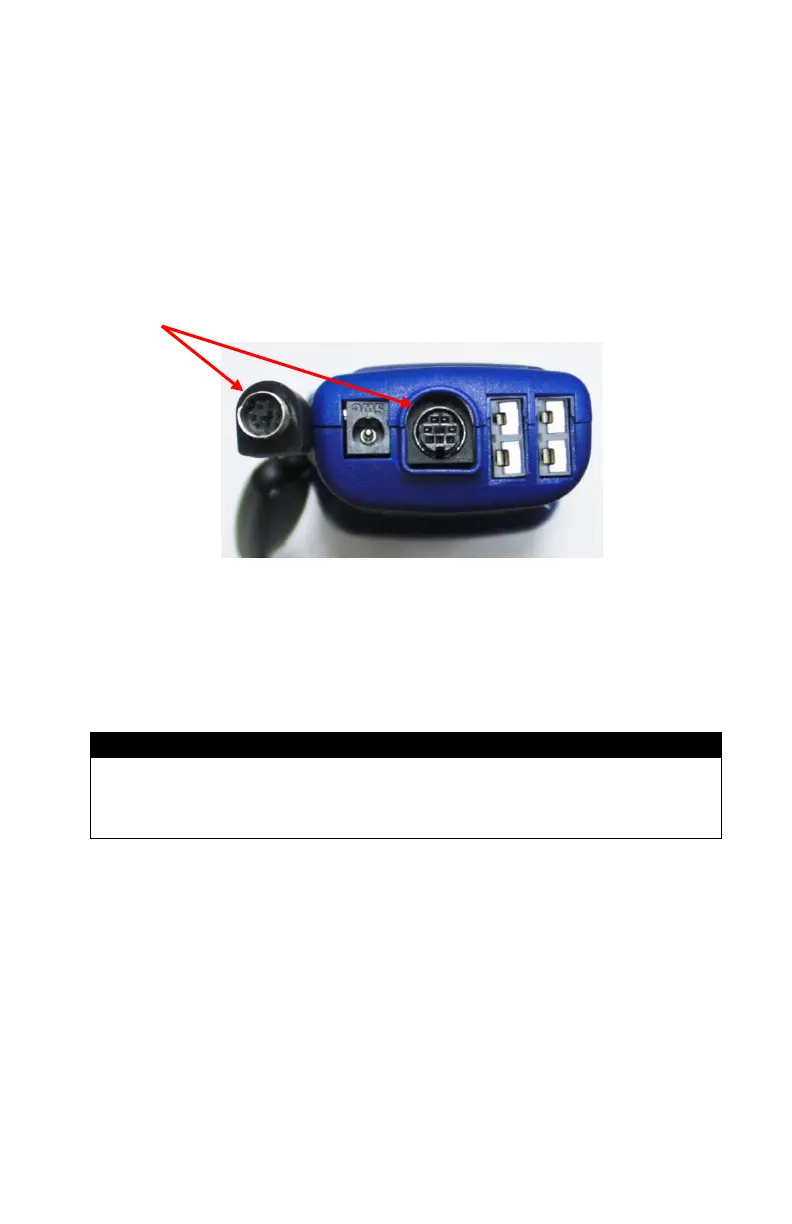

“D” Shaped
mini-DIN connector
