p. 10 of 16

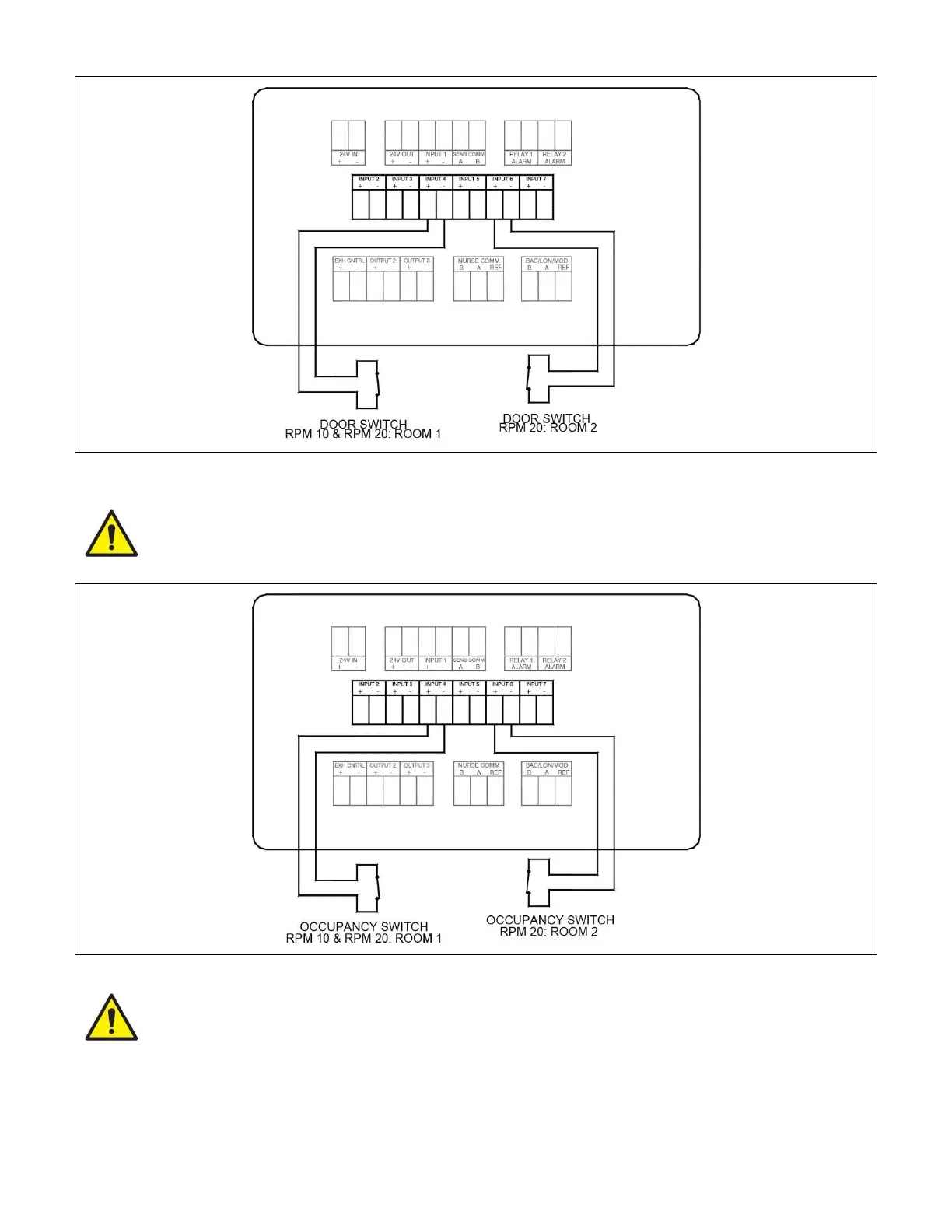

Figure 14. Optional Door Switch Wiring to Model RPM10 / RPM20

NOTE: Model RPM10 does not support Room 2 Door Switch.

RPM20-CC does not support Door Switch when configured for use with Remote with

Pump Particle Counter.

Figure 15. Optional Occupancy Sensor Wiring to Model RPM10 / RPM20

NOTE: Model RPM10 does not support Room 2 Occupancy Sensor.

Model RPM20-CC does not support Occupancy Sensors when configured for use with

Remote with Pump Particle Counter
