TSL AMU2-8HD+ - 3 Pin-Out Details

AMU2-8HD+/3G 8 Issue 1
3.0 Pin-out Details
3.1 Line output
XLRS PIN FUNCTION
ANALOG 1 1 GND
ANALOG 1 2 1 IN+
ANALOG 1 3 1 IN-
ANALOG 2 1 GND
ANALOG 2 2 2 IN+
ANALOG 2 3 2 IN-

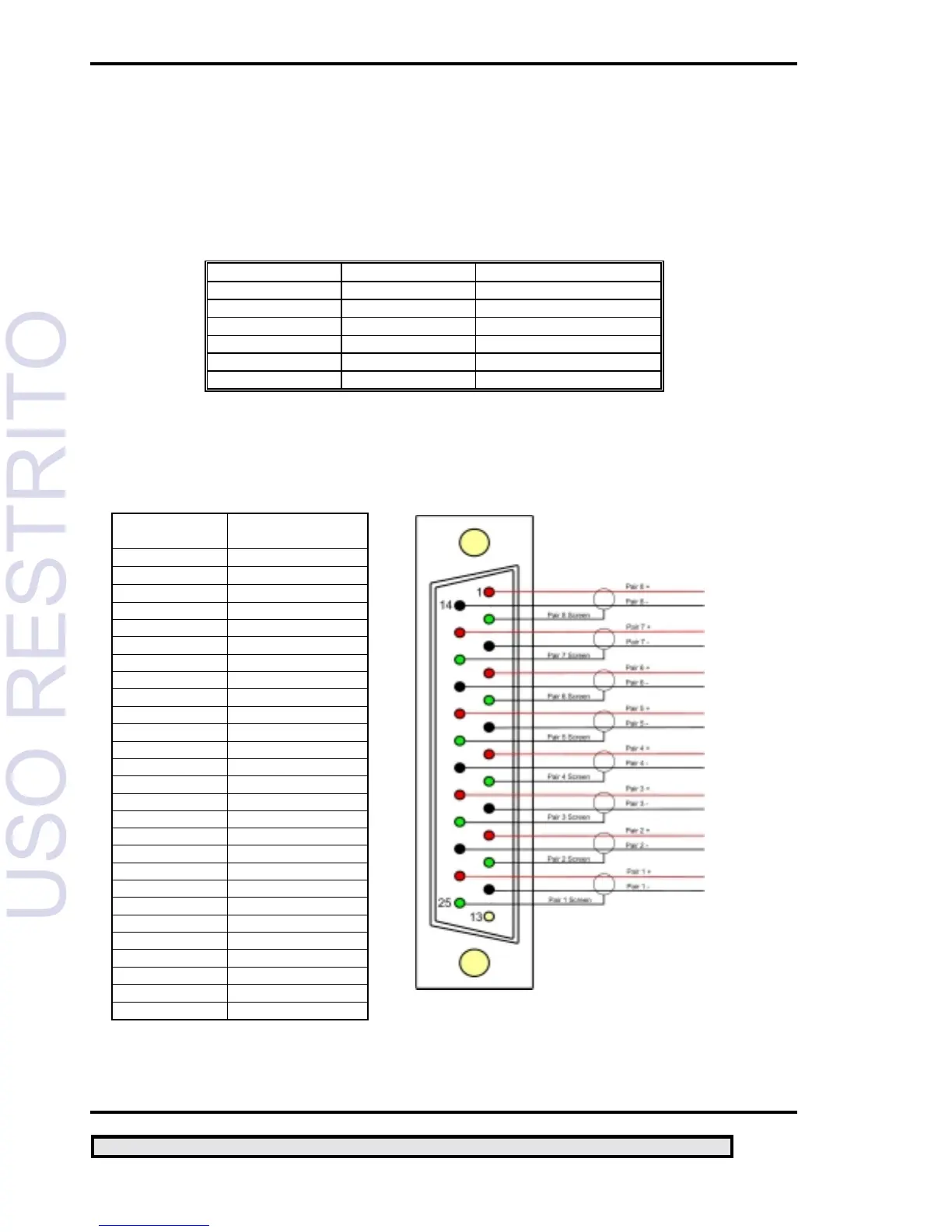

3.2 D25 Socket, Analogue output connector
D 25 SOCKET
ON AMU
AUDIO OUTPUTS
PIN NO FUNCTION
1 A8+ (7.1)
14 A8- (7.1)
2 Ground
15 A7+ (7.1)
3 A7- (7.1)
16 Ground
4 A6+ (RS)
17 A6- (RS)
5 Ground
18 A5+ (LS)
6 A5- (LS)
19 Ground
7 A4+ (LFE)
20 A4- (LFE)
8 Ground
21 A3+ (Centre)
9 A3- (Centre)
22 Ground
10 A2+ (FR)
23 A2- (FR)
11 Ground
24 A1+ (FL)
12 A1- (FL)
25 Ground
13 N/C
