TSL AMU2-8HD+ - Control Connector - D9 Socket

AMU2-8HD+/3G 9 Issue 1

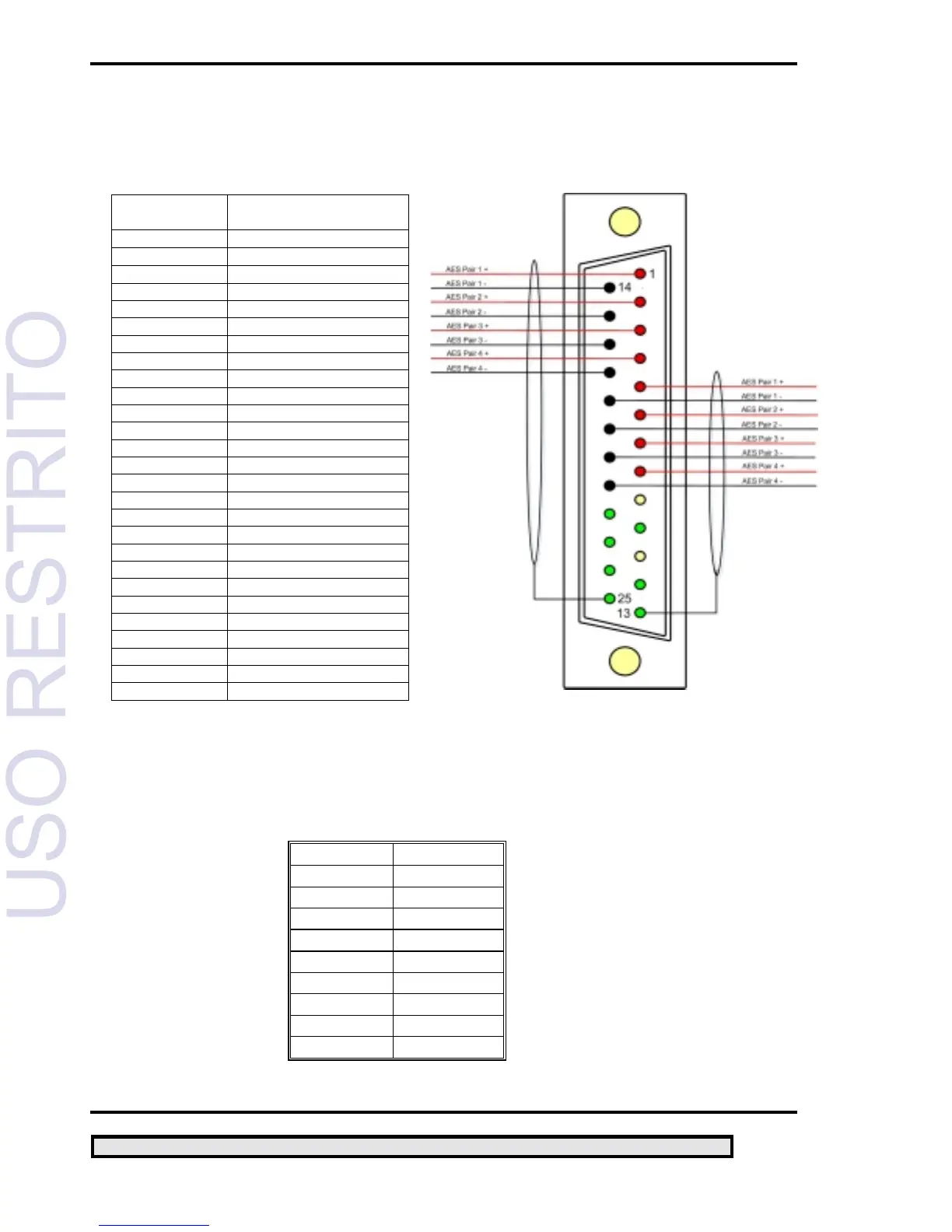

3.3 D25 Socket, AES Input/Output connector
D 25 SOCKET
ON AMU
AES INPUTS/OUTPUTS
PIN NO FUNCTION
1 Ch1&2 Input 1+
14 Ch1&2 Input 1-
2 Ch3&4 Input 2+
15 Ch3&4 Input 2-
3 Ch5&6 Input 3+
16 Ch5&6 Input 3-
4 Ch7&8 Input 4+
17 Ch7&8 Input 4-
5 Ch1&2 Output 1+
18 Ch1&2 Output 1-
6 Ch3&4 Output 2+
19 Ch3&4 Output 2-
7 Ch5&6 Output 3+
20 Ch5&6 Output 3-
8 Ch7&8 Output 4+
21 Ch7&8 Output 4-
9 N/C
22 Ground
10 Ground
23 Ground
11 N/C
24 Ground
12 Ground
25 Ground
13 Ground
3.4 Control Connector - D9 Socket
This is wired for RS422.
D9 CONTROL
1 0V
6 0V
2 TX-
7 TX+
3 RX+
8 RX-
4 0V
9 0V
5 N/C
