TSL Tallyman TM1 - Pin out Details

TallyMan V1.81 on
|
Installation
22
Pin out details
Ethernet

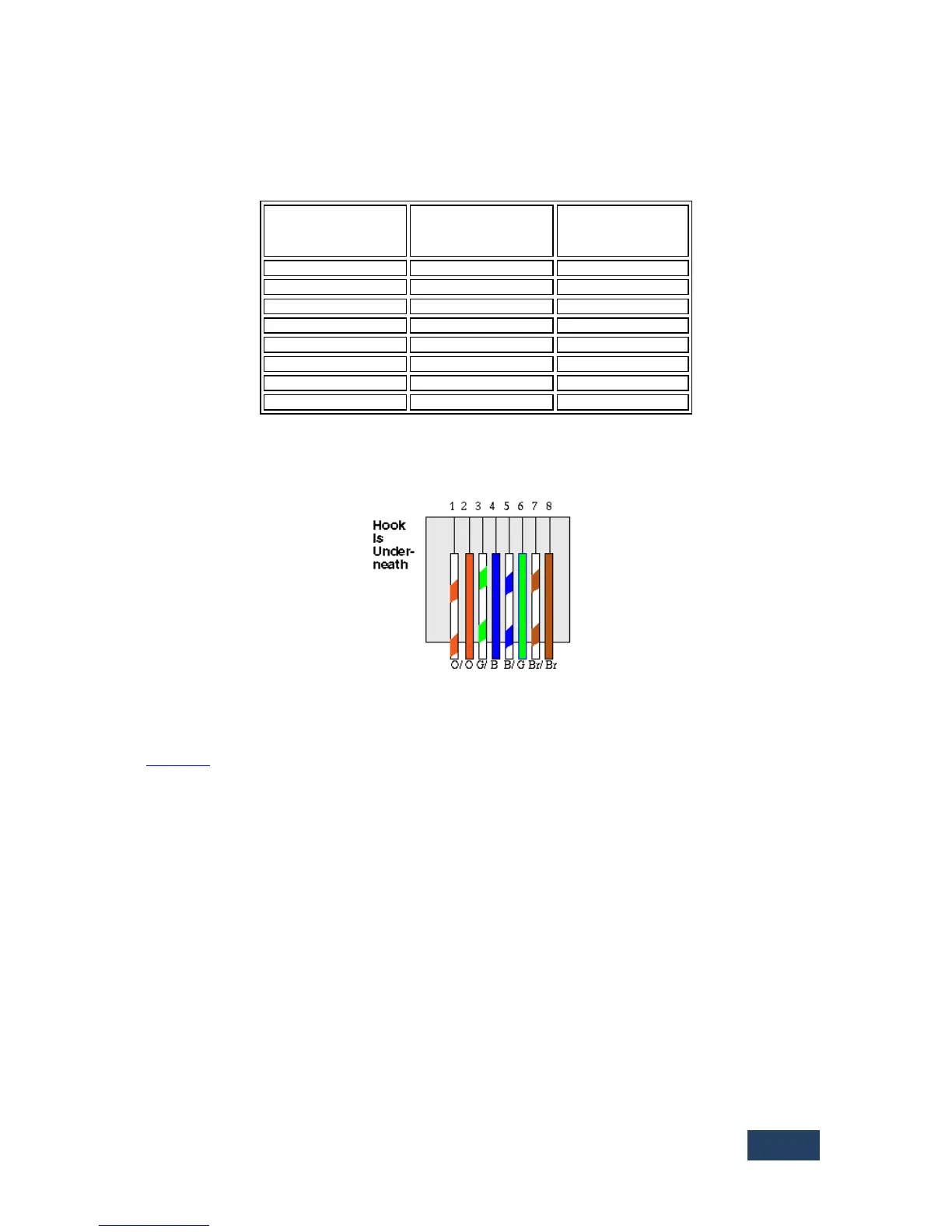

The cable required to connect the TM2+ controller with the configuring computer is as follows:
Signal Name
RJ
-
45 Ethernet Pin
Numbers
Crossover Cable
Pinouts
TX +
1
3
TX
-
2
6
RX +
3
1
EPWR + Power
4
4
EPWR + Power
5
5
RX
-
6
2
EPWR
-
Power
7
7
EPWR
-
Power
8
8
For a hub connection, use a straight-through cable. For TallyMan Controller to Computer, use a
crossover cable
