Tsonic TUF-2000 Series - TUF-2000 F2 Installation and Wiring Diagram; 4.3 Module type

>> Ultrasonic Flow meter User Manual
9

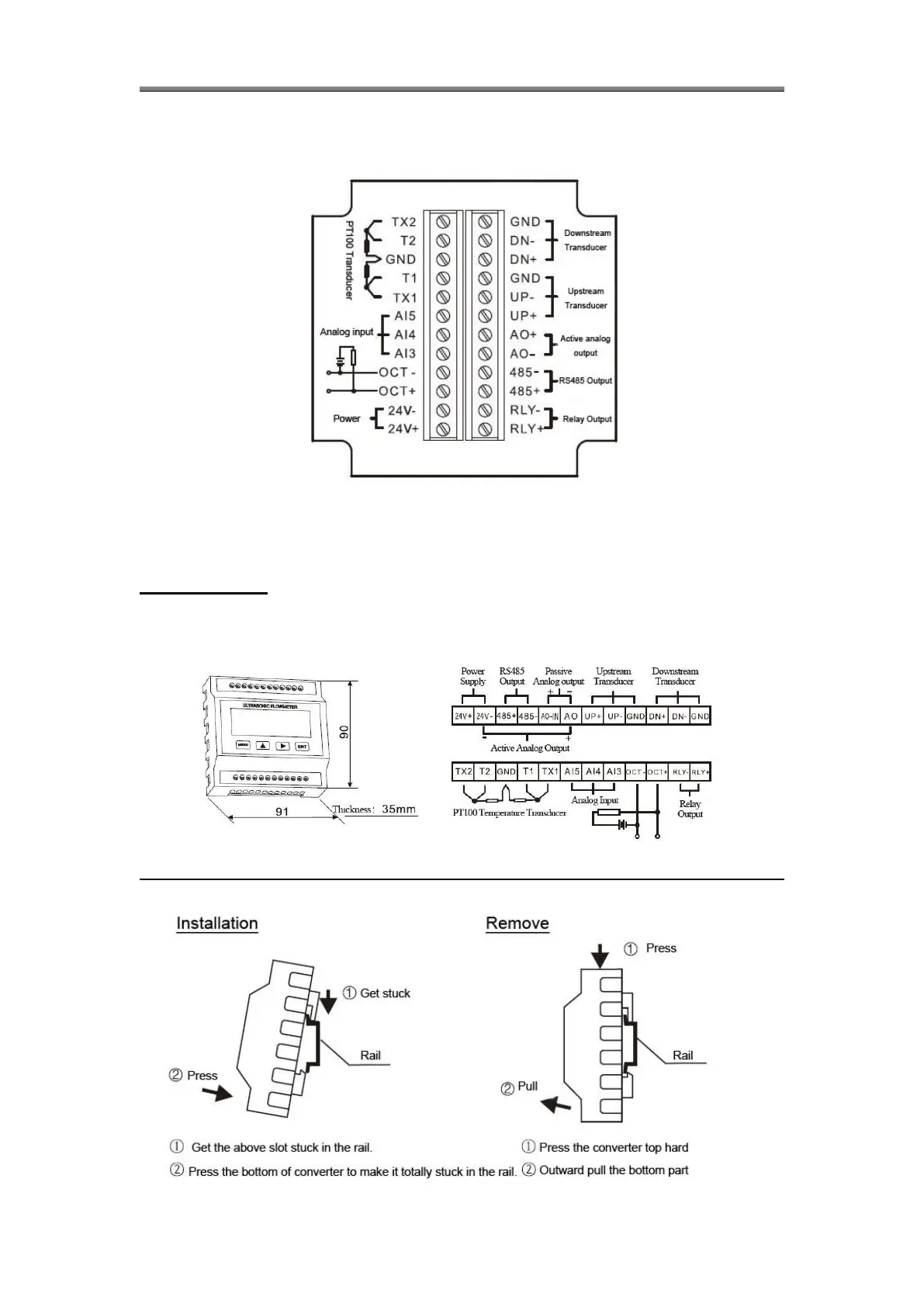

 TUF-2000F2 Wiring Diagram
Open the flip cover and complete the wiring. To avoid leaking, please tighten the water joint and
screws of the back cover after wiring, then pot gel inside to reach IP68 protection class.
4.3 Module type
