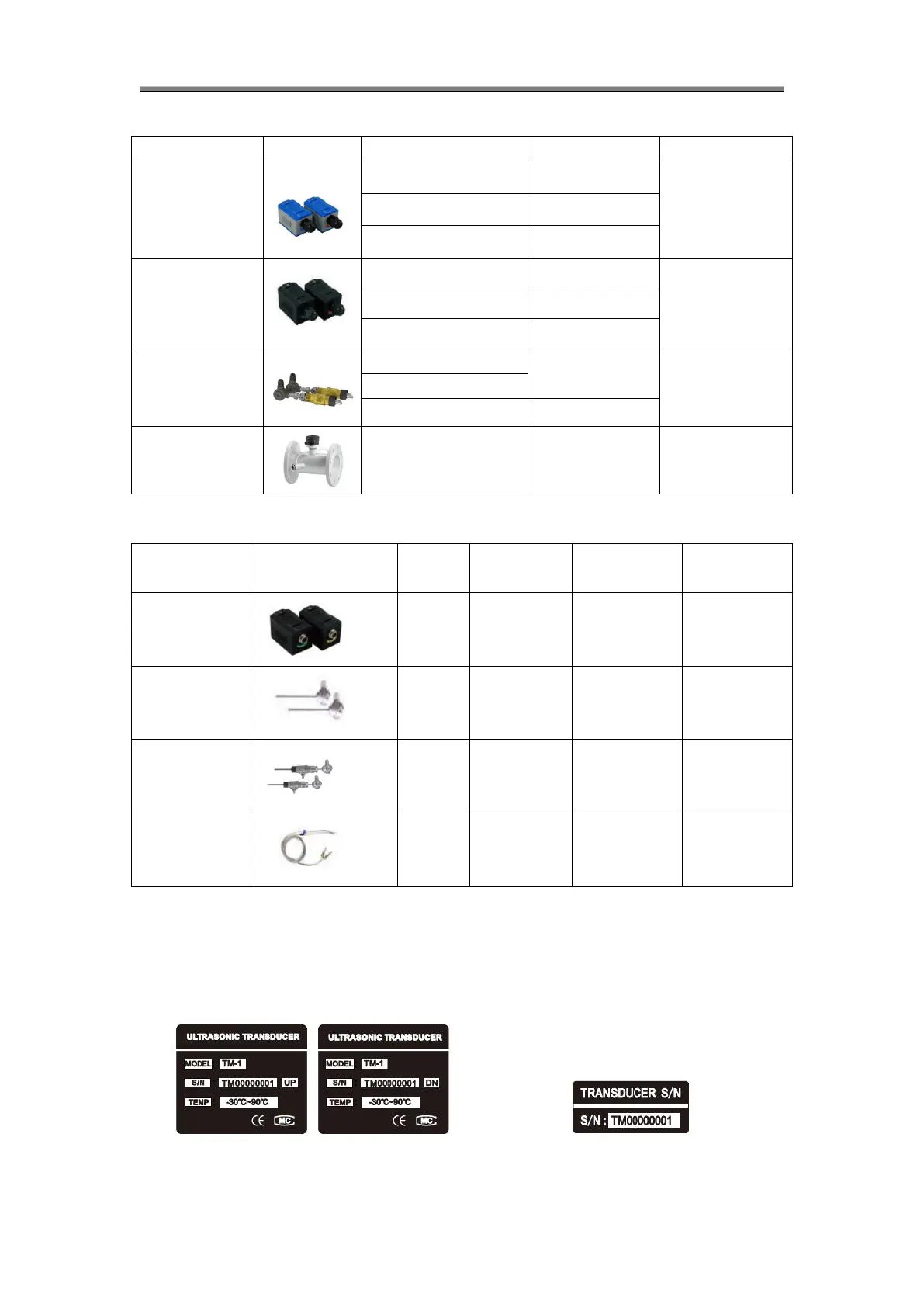

1.3 Types of Flow/Temperature transducers
Flow transducer
Model
Measuring range
Temperature
Clamp on
TS-2 (small)
DN25-100
-30 ~ 90℃
TM-1 (medium)
DN50-700
TL-1 (large)
DN300-6000
High temp.
Clamp on
TS-2-HT (small)
DN25-100
-30 ~ 160℃
TM-1-HT (medium)
DN50-700
TL-1-HT (large)
DN300-6000
Insertion
TC-1 (standard)
DN50-6000
-30 ~ 160℃
TC-2 (extended)
TP-1 (parallel)
DN80-6000
Inline
Standard
DN15-1000
-30 ~160℃
Temperature
transducer
Model
Measuring
range
Temperature
Cutoff water
Clamp on
CT-1
DN50-6000
-40 ~ 160℃
No need
Insertion
TCT-1
DN50-6000
-40 ~ 160℃
Need
Insertion
under pressure
PCT-1
DN50-6000
-40 ~ 160℃
No need
Insertion
small sizes
SCT-1
< DN50
-40 ~ 160℃
Need
2. Check Components
1. Please check you have all the components in the order.
2. All codes on the converter and transducers should be matched. They are used in sets.
