>> Ultrasonic Flow meter User Manual
7.2 Clamp on transducer Installation
△
!
Before installation, please verify the parameters of pipeline and liquid. To ensure the
installation accuracy.
1) Installation procedure
Select an installation method → Input the measuring parameters → Clean pipe surface →
Install transducers → Check the installation
2) Select an installation method

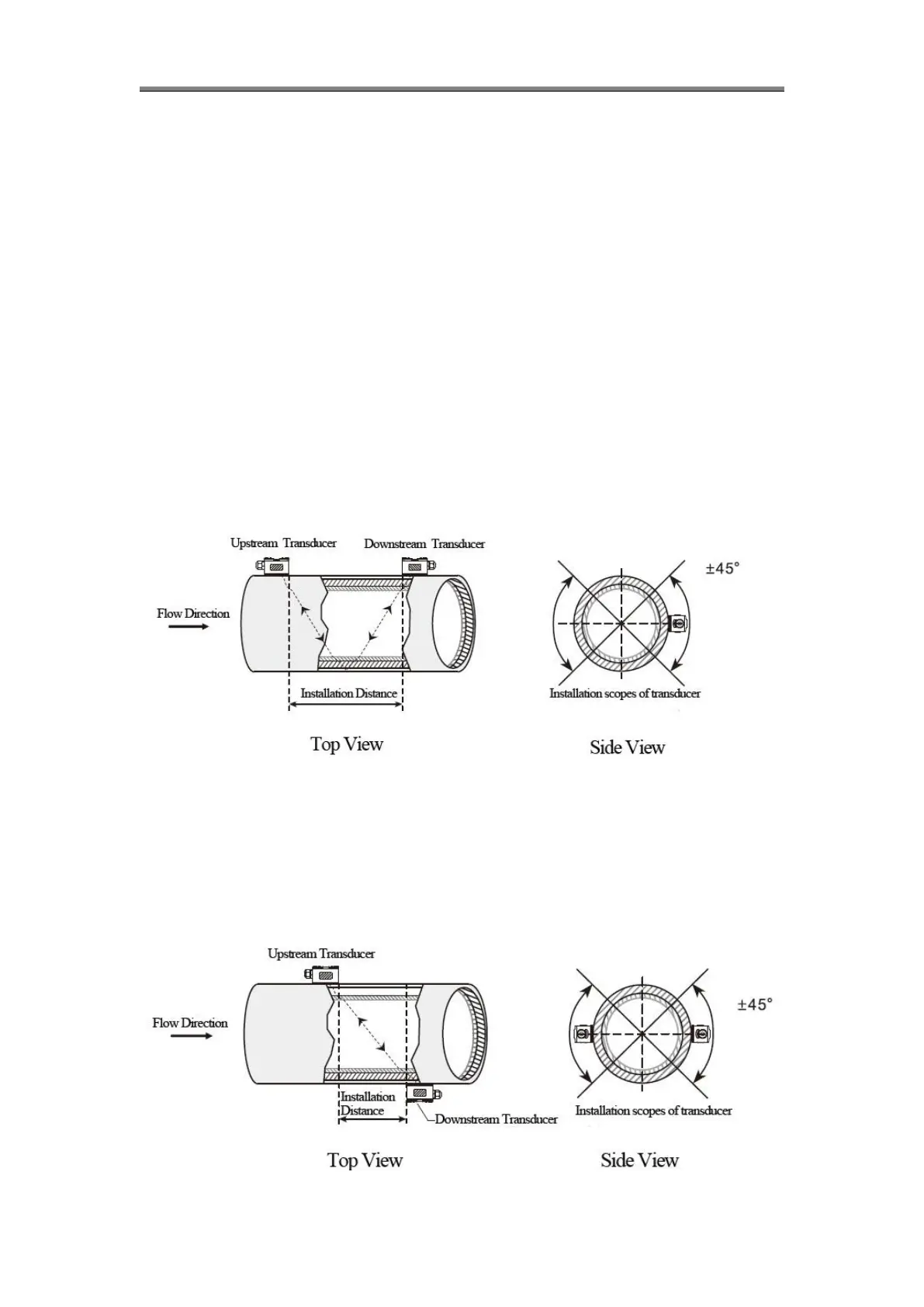

There are two different methods for clamp on transducers: V method and Z method.
>> V method
V method should be priority selected for pipe sizes DN25 - DN200. Let the pair of transducers
horizontal alignment, the central line in parallel with the pipeline axis.
>> Z method
Z method should be priority selected for pipe sizes DN200 - DN6000. Also can be used when V
method doesn’t work well. Make sure the vertical distance of two transducers equals to the
installation distance, and the two transducers are on the same axis surface.
