>> Ultrasonic Flow meter User Manual
7.3 Insertion type transducer installation
△
!
Before installation, please verify the parameters of pipeline and liquid. To ensure the
installation accuracy.
1) Installation procedure
Select an installation method → Input the measuring parameters → Positioning installation points
→ Fix ball valve base →Open hole under pressure →Install transducers → Check the installation
2) Select installation method and positioning installation points
Insertion type transducers are suitable for pipe sizes > 50mm.
Two different installation methods: V method and Z method. Generally use Z method, only use V
method for lack of space.

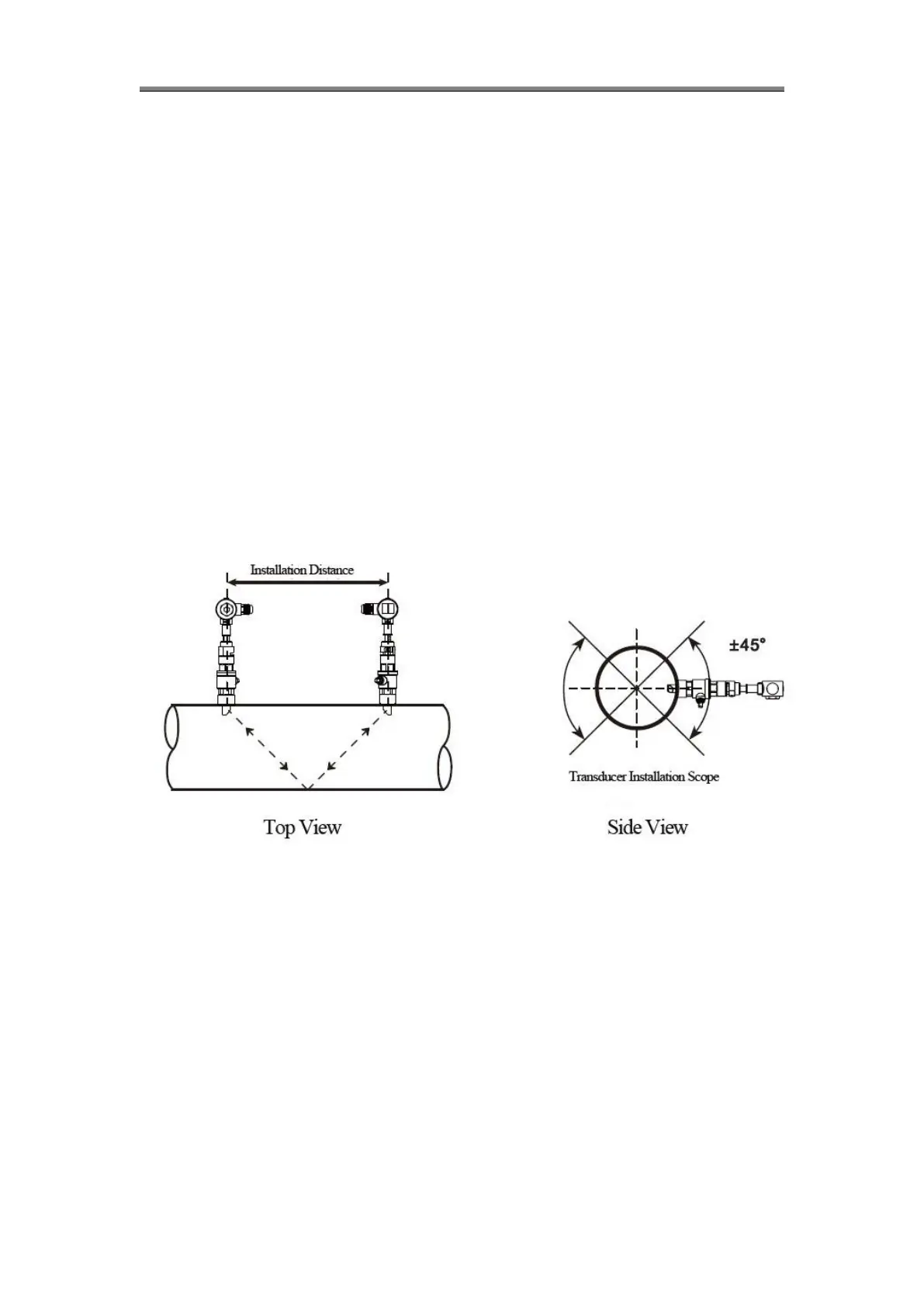

>> V method
V method can be used for DN50mm - 300mm. Let the pair of transducers horizontal alignment,
the central line in parallel with the pipeline axis, and the transmit direction mush be opposite.
