Tsonic TUF-2000 Series - 7.4 In-line type transducer installation

>> Ultrasonic Flow meter User Manual
35
7.4 In-line type transducer installation
After choosing the installation point, install the transducer in the pipeline with companion flanges.
Then connect the transducer to converter with special signal cable. Installation is complete.

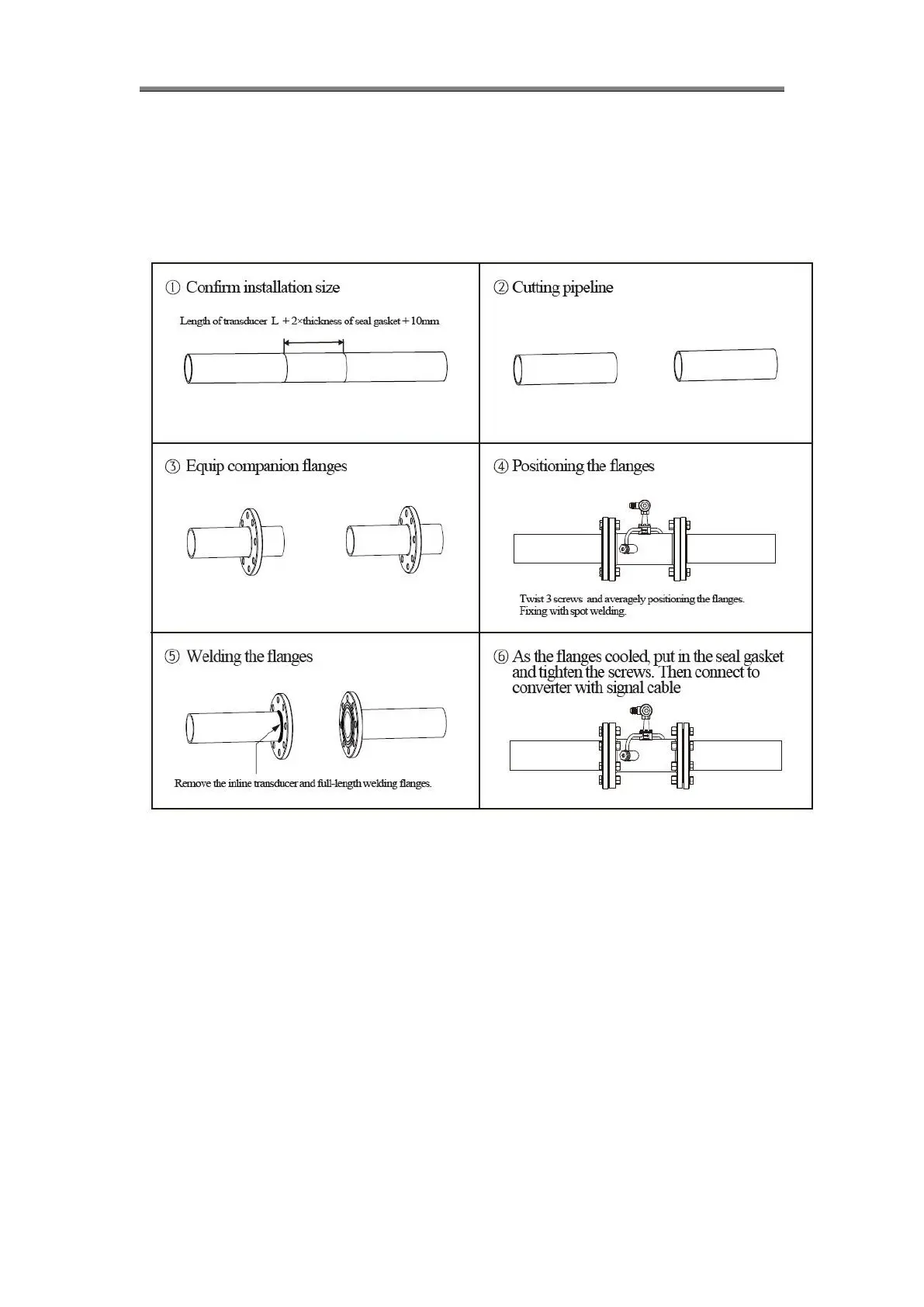

1) Installation method
2) Check installation
Please see details in Chapter 7.5
