Tsonic TUF-2000 Series User Manual

>> Ultrasonic Flow meter User Manual
2
Welcome to use the new generation ultrasonic flow meter made of our patented technology.
TUF-2000 Series Ultrasonic Flow/Heat Meters utilize the transit-time principle to measure the
velocity of relatively clean liquids in full pipes.
The purpose of this guide is to provide installation procedures and basic operating instructions for
TUF-2000 Series Ultrasonic Flow/Heat Meters.
Installation Procedure
1. Products Categories
1.1 Composition of Ultrasonic flow meter
Ultrasonic Flow meter = Converter + transducer
Ultrasonic Heat meter = Converter + transducer + Temperature transducer
1.2 Types of Converters
Model
Wall Mount
TUF-2000B
Wall Mount
TUF-2000S
Wall Mount
TUF-2000S(Grey)
Explosion proof
TUF-2000D
Model
Panel mount
TUF-2000U
Module
TUF-2000M
Fix Mount
TUF-2000F2

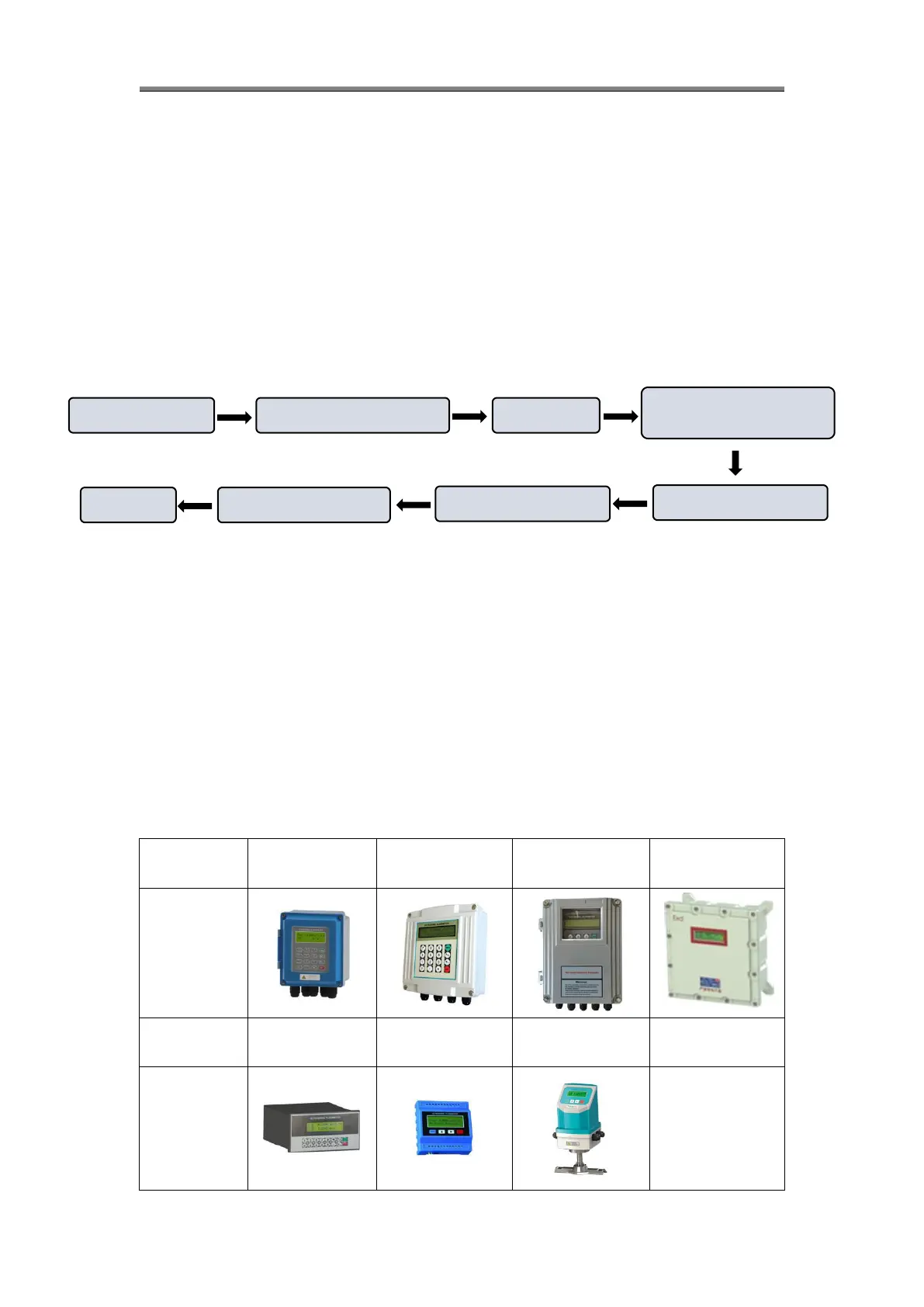

Check Components
Choose Installation Points
Set Parameter
Connection of
Converter and transducer
transducer Installation
Check the installation
Converter Installation
Complete

Tsonic TUF-2000 Series Specifications

General

Brand	Tsonic
Model	TUF-2000 Series
Category	Measuring Instruments
Language	English
