Tsonic TUF-2000 Series - TUF-2000 S and TUF-2000 D Installation Instruction

>> Ultrasonic Flow meter User Manual
7

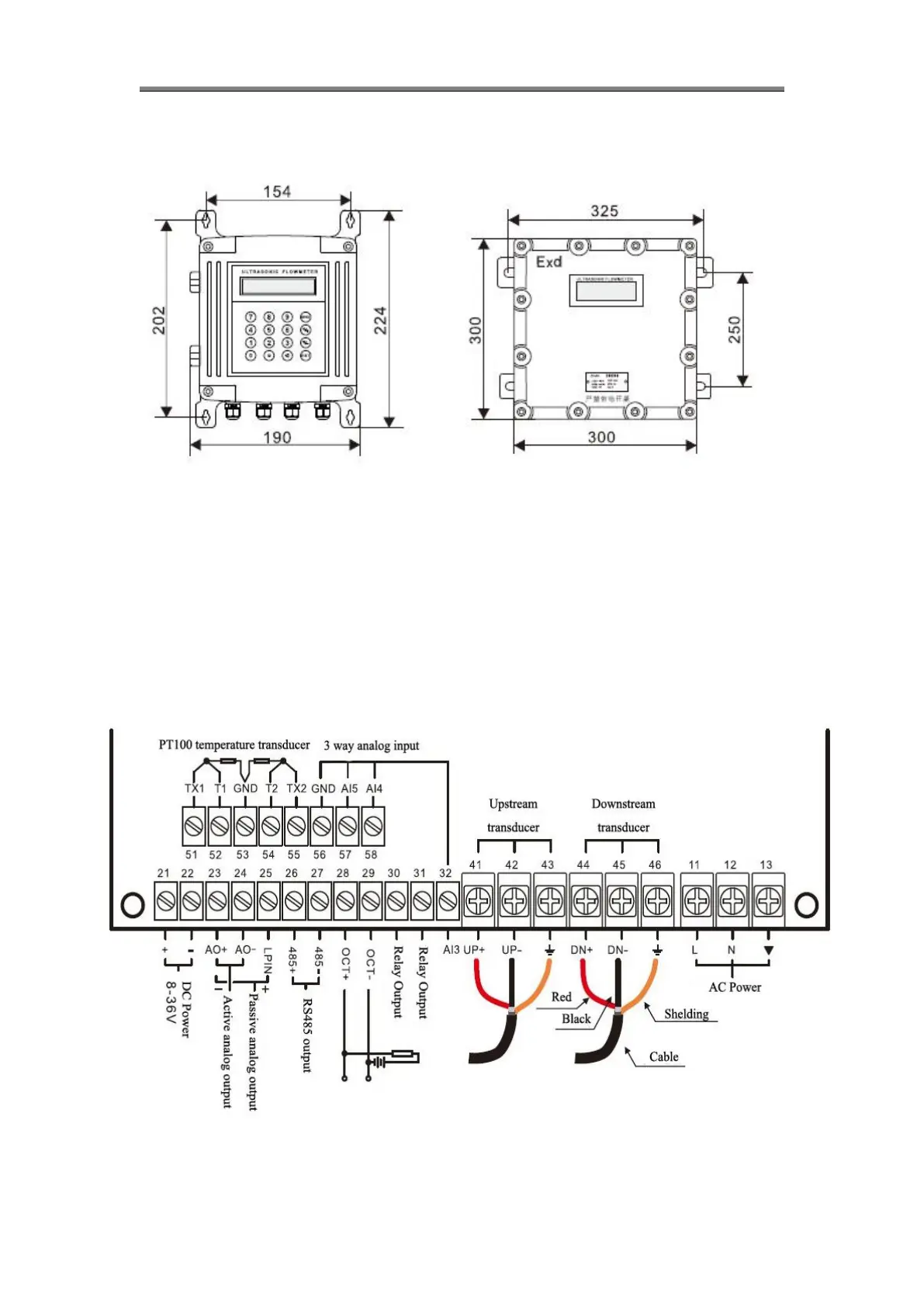

 TUF-2000S and TUF-2000D Installation Instruction(TUF-2000S(Grey) is the same
way)
Thickness: 75mm Thickness: 165mm
 TUF-2000S and TUF-2000D Wiring Diagram
Explosion-proof grade: DⅡBT5
Fix the converter with 4
Φ8
expansion bolts.
Wall mounting: Fix the converter
with 4 Φ6 expansion bolts.
