TSPROF K03 - Installation of the Clamp; Full Flat Grind Clamping

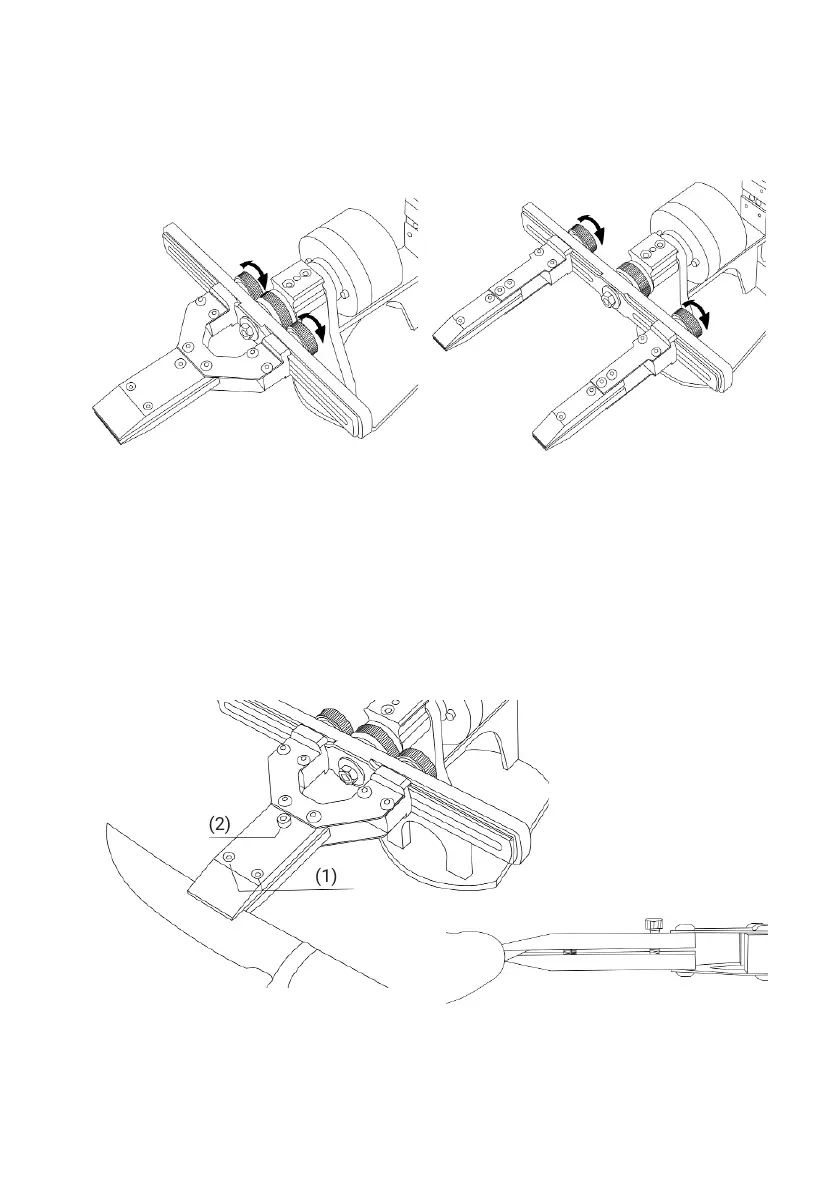

4. Install the clamp on the frame and tighten the thumbscrews. * You can use TSPROF
clamps of any conguration. Locate the clamps at the needed distance from each other
depending on the length and the blade geometry.
5. Install the knife, loosening the far (2) and near (1), clamping screws.
* The example of a knife with a full at grind.
Stick a piece of the leather or masking tape on the place of contact with the jaws in order
to avoid damage to polished or coated knives. Tighten near clamping screws (1) with a small
effort, nally tighten far clamping screw (2). Jaws should be parallel. To release the knife, loos-
en the screws in the reverse order.
(2)
(1)
