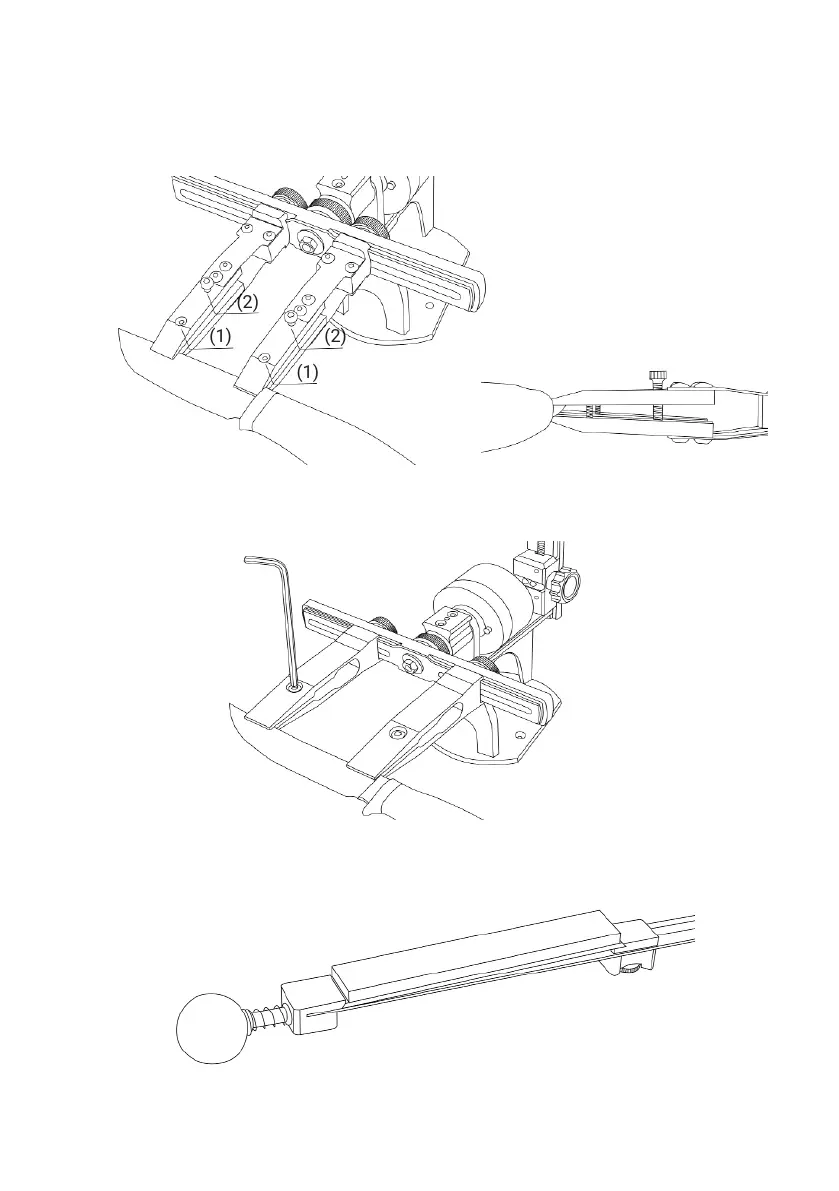

If the knife blade has a tappered blade, tighten rst near clamping screws with a little effort
(1), then a far (2) weakening the closest screws while tighten far screw. The jaws thus should
be at an angle to each other. If the length of the far clamping screw is not enough, replace it
with a longer M4x16 (14G) from the spare parts package.
When you are working with the wholemilled clamps, you need to tighten only one screw, use
4mm hex key. Try not to over-tighten!
(2)
(1) (2)
(1)
6. Place the abrasive, loosen the far xing thumbscrew on the moving thrust bar. The dis-
tance between thrust bars should be 10 - 12mm less than the abrasive length. Tighten
the xing thumbscrew on the far thrust bar.
11
