Assembly
3.

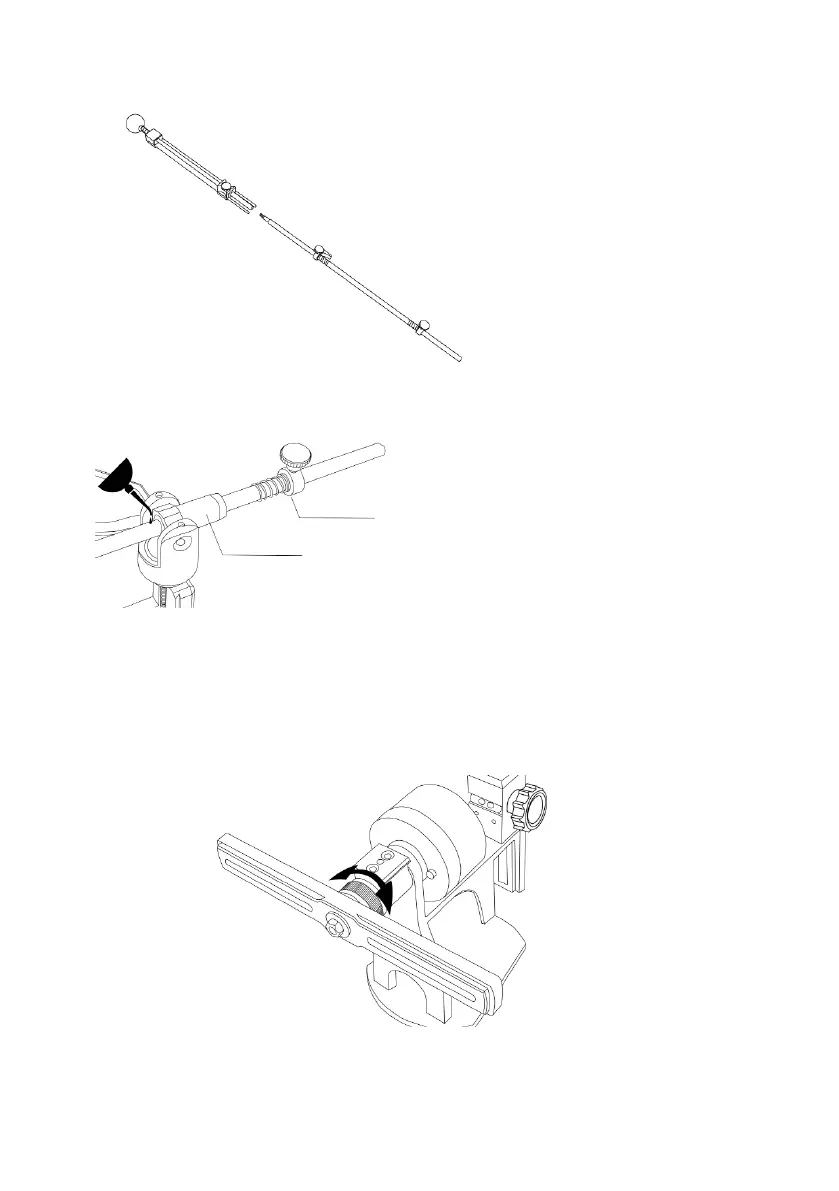

3. Set the rotary mechanism retention force.
For K03 by turning of the calibration wheel, set a necessary rotary gear xation effort
Choose an effort so it doesn’t ip during the process of sharpening.
1. Assemble the abrasive holder, and remove the
stopper together with the amortization spring.
2. Install the abrasive holder in sleeve hub (1),
apply a drop of liquid lubricant. then set
spring and amortization limiter (2).
9
(1)
(2)
