TTK FG-SYS - Page 30

30

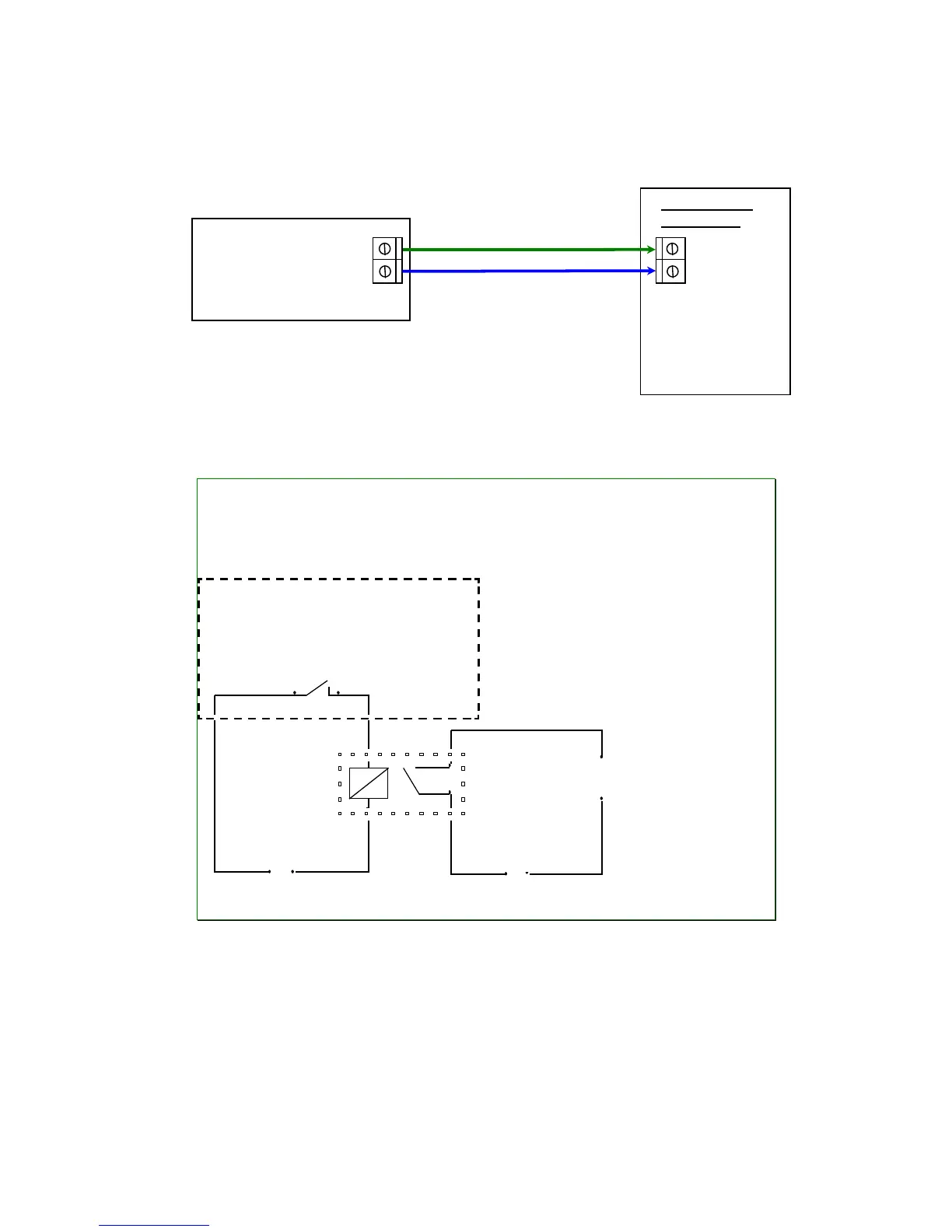

CONNECTIONS TO OPTIONAL POWER SUPPLY SUPERVISOR
(These applications were not evaluated by UL)
POWER SUPPLY
(24VAC for ex.)
POWER
RELAY
RELAY
CONTACT (N.O.)
POWER RELAY CONNECTIONS
~ 220 V
EXTERNAL POWER
DEVICE
(SOLENOID VALVE, ETC.)
FG-A or FG-SYS Unit
Power
Transformer
FG-SYS general
relay terminal
connector
Relay Contact
Always N.C.
Supervisor
Supervisor input for
volt-free dry contact
