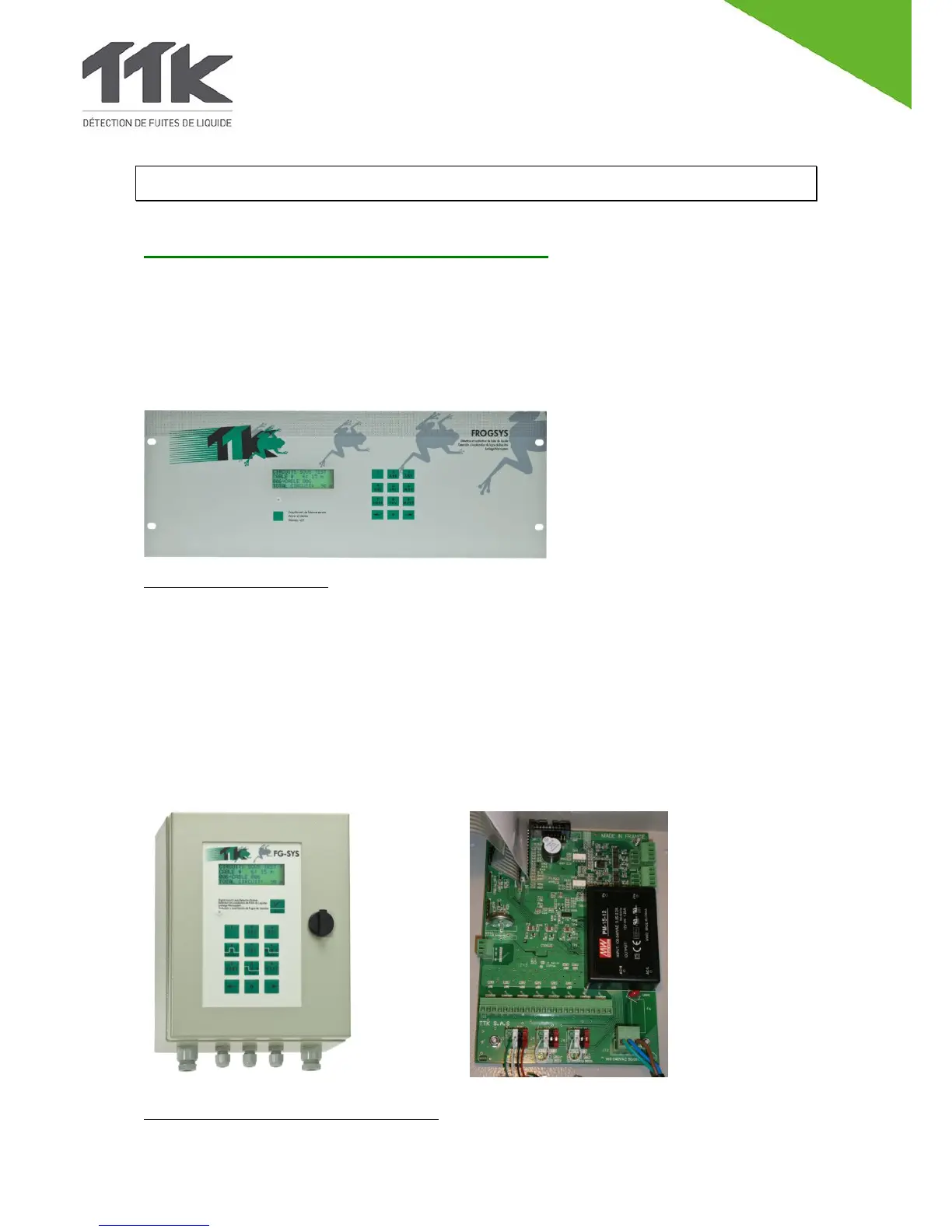

I. FG-SYS DIGITAL UNIT INSTALLATION
1. FIXING THE DIGITAL UNIT FG-SYS (E) OR (F)
Digital Unit FG-SYS E is used in Rack Mounted Version, in a bay or a cupboard 19 '''. It is advised
to envisage a site with height of the eyes to facilitate the reading of the display.
The dimensions are the following:
Height: 4U
Deep: 60 mm
FG-SYS (E) Rack Mounted Version
FG-SYS F Digital Unit is used in wall mounted version, with a metal enclosure. It is necessary to
open the front face of the unit, to get access to the electronic chart.
Use the accurate template included in the FG-SYS F box, in order to fix the digital Unit at the wall.
The dimensions are the following:
Wide: 200 mm
High: 250 mm
Deep: 100 mm
FG-SYS (F) Wall Mounted Version, with Metal Enclosure
