II SENSE CABLE AND ACCESSORIES INSTALLATION
FG-SYS System is modular. All the sense cables and accessories are pre-terminated with both male
and female connectors. This makes the installation quick, easy, and safe.
We recommend drawing a precise map of all zones to be fitted with sense cables, ensuring that all
installation zones are clean and dry before installation.
1. SENSE CABLE INSTALLATION
1.1 Installation: Hold Down Clips with Adhesive
The sense cables are fixed on the ground by fixing clips, type CFC-100.
The first stage of the installation consists in sticking these clips on the ground using the provided
adhesive (3M cold Glue).
Recommendations:
1. Ensure the cable sticks correctly to the earth, alternate the direction of the clips on the earth.
2. The clips must follow the drawing of the sense cables and be spaced approximately 1 metre apart.
3. Wherever there is a curve of the trajectory, stick 1 clip the entry point and a second at the exit point
of curve.
4. Please wait for the clips to be completely dry (three to four hours), before installing the sense
cables.
5. When fixing the sense cables into the clips, keep a length of approximately 10 cm between the
connector and the clip.

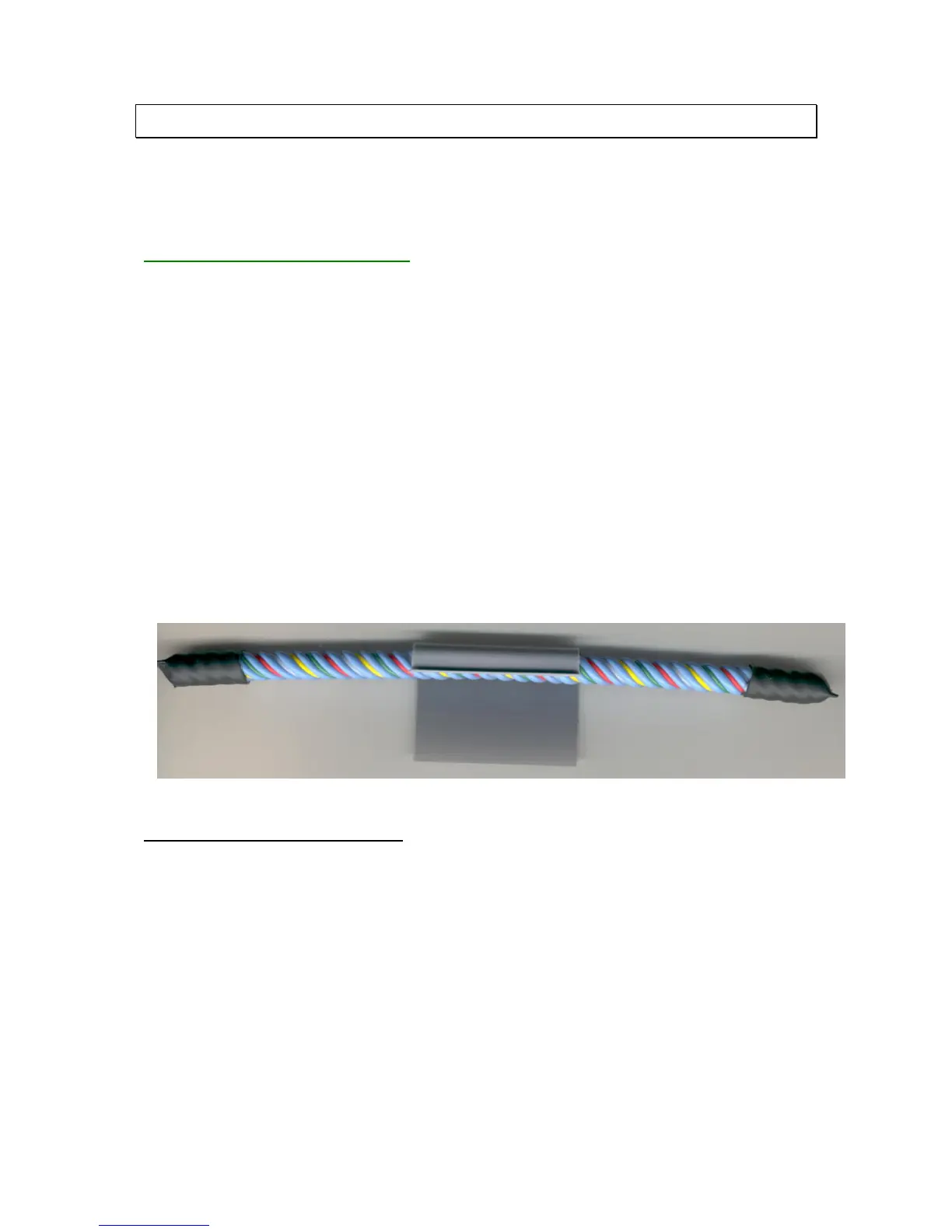

Hold Down Clips with Adhesive (ref.: CFC-100)
