TurboChef 1618 User Manual

1
HCT- 4201 / Rev S / January 2024
HhC 1618 Dimensions
Exterior
Height: 13.0” (330 mm)
With Legs: 17.0” (432 mm)
Width: 36.0” (914 mm)
Depth: 31.7” (805 mm)
Conveyor
Length: 31.7” (805 mm)
Width: 36.0” (914 mm)
Electrical Specifications
North America
1 Phase
208/240 VAC
50/60 Hz
37 amp current draw
Max Input: 7.5 kW
3-wire supply
NEMA 6-50P plug
50-amp max circuit breaker protection
Europe/Asia (220-240 VAC)
3 Phase
220/240 VAC
50/60 Hz
23 amp current draw
Max Input: 7.5 kW
4-wire supply
IEC60309 4-pin plug
30-amp max circuit breaker protection
Europe/Asia (380-415 VAC)
3 Phase
380-415 VAC
50/60 Hz
12 amp current draw
Max Input: 7.5 kW
5-wire supply
IEC60309 5-pin plug
30-amp max circuit breaker protection

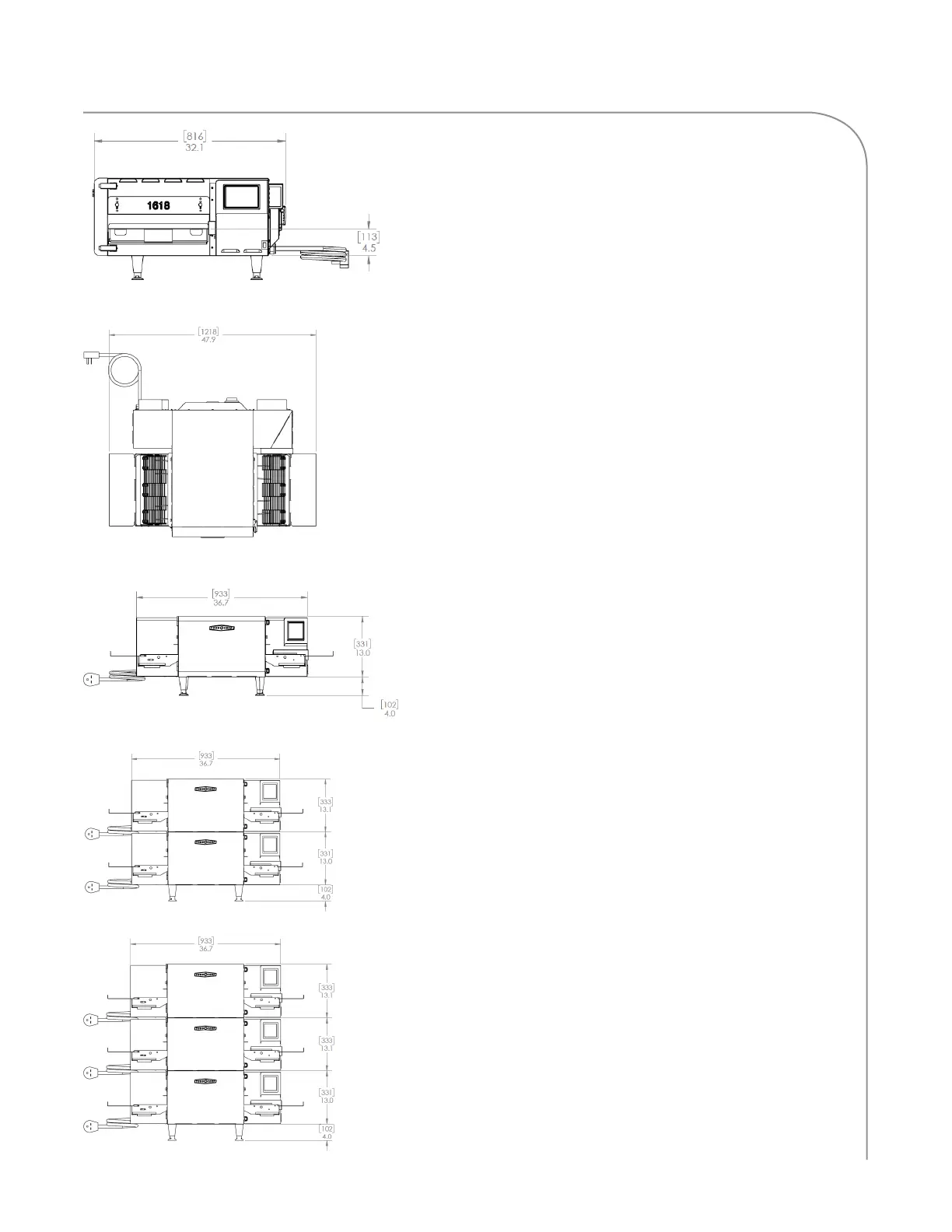

Figure 1: HhC 1618 Oven Dimensions - Side
Figure 2: HhC 1618 Oven Dimensions - Top
Figure 3: HhC 1618 Oven Dimensions - Front
Figure 4: HhC 1618 Oven Dimensions - Front (Double)
Figure 5: HhC 1618 Oven Dimensions - Front (Triple)
SPECIFICATIONS AND INSTALLATION
