ONETOUCH CONTROLLER OPERATION
HCT- 4201 / Rev S / January 2024
HhC 2620 Dimensions
Exterior
Height: 13.0” (330 mm)
With Legs: 17.0” (432 mm)
Width: 48.3” (1227 mm)
Depth: 42” (1066 mm)
Conveyor
Length: 48.3” (1227 mm)
Width (Single): 26.0” (660mm)
Width (50/50): 12.5” / 12.5” (318 mm / 318 mm)
Width (70/30): 17” / 8” (431 mm / 203 mm)
Electrical Specifications
North America
3 Phase
208/240 VAC
50/60 Hz
40 amp current draw
Max Input: 14.4 kW
4-wire supply
NEMA 15-50P plug (4-pin IEC60309 available by
special order)
50-amp max circuit breaker protection
Europe/Asia (220-240 VAC)
3 Phase
220/240 VAC
50/60 Hz
40 amp current draw
Max Input: 14.4 kW
4-wire supply
IEC60309 4-pin plug
64-amp max circuit breaker protection
Europe/Asia (380-415 VAC)
3 Phase
380-415 VAC
50/60 Hz
20 amp current draw
Max Input: 14.4 kW
5-wire supply
IEC60309 5-pin plug
32-amp max circuit breaker protection

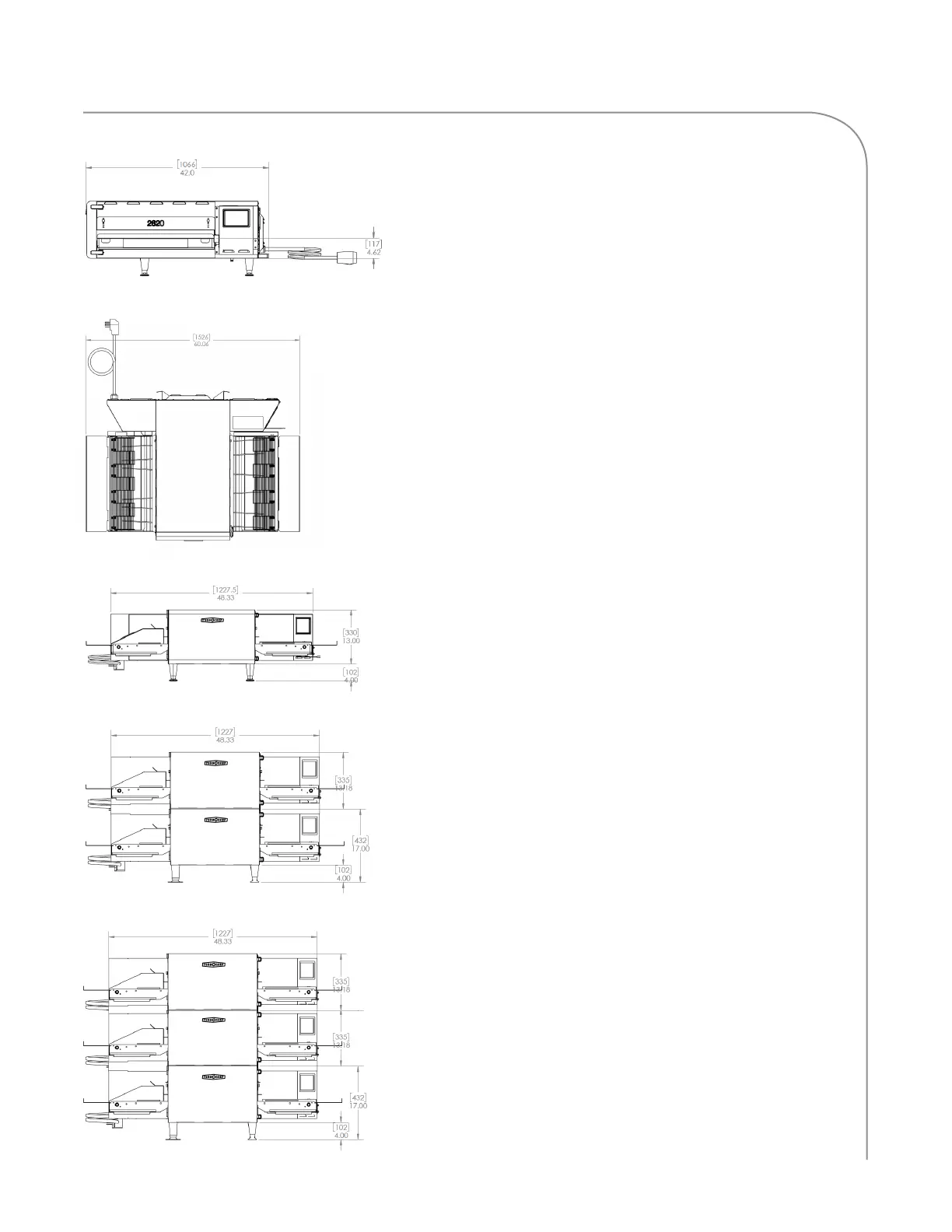

Figure 11: HhC 2620 Oven Dimensions - Side
Figure 12: HhC 2620 Oven Dimensions - Top
Figure 13: HhC 2620 Oven Dimensions - Front
Figure 14: HhC 2620 Oven Dimensions - Front (Double)
Figure 15: HhC 2620 Oven Dimensions - Front (Triple)
