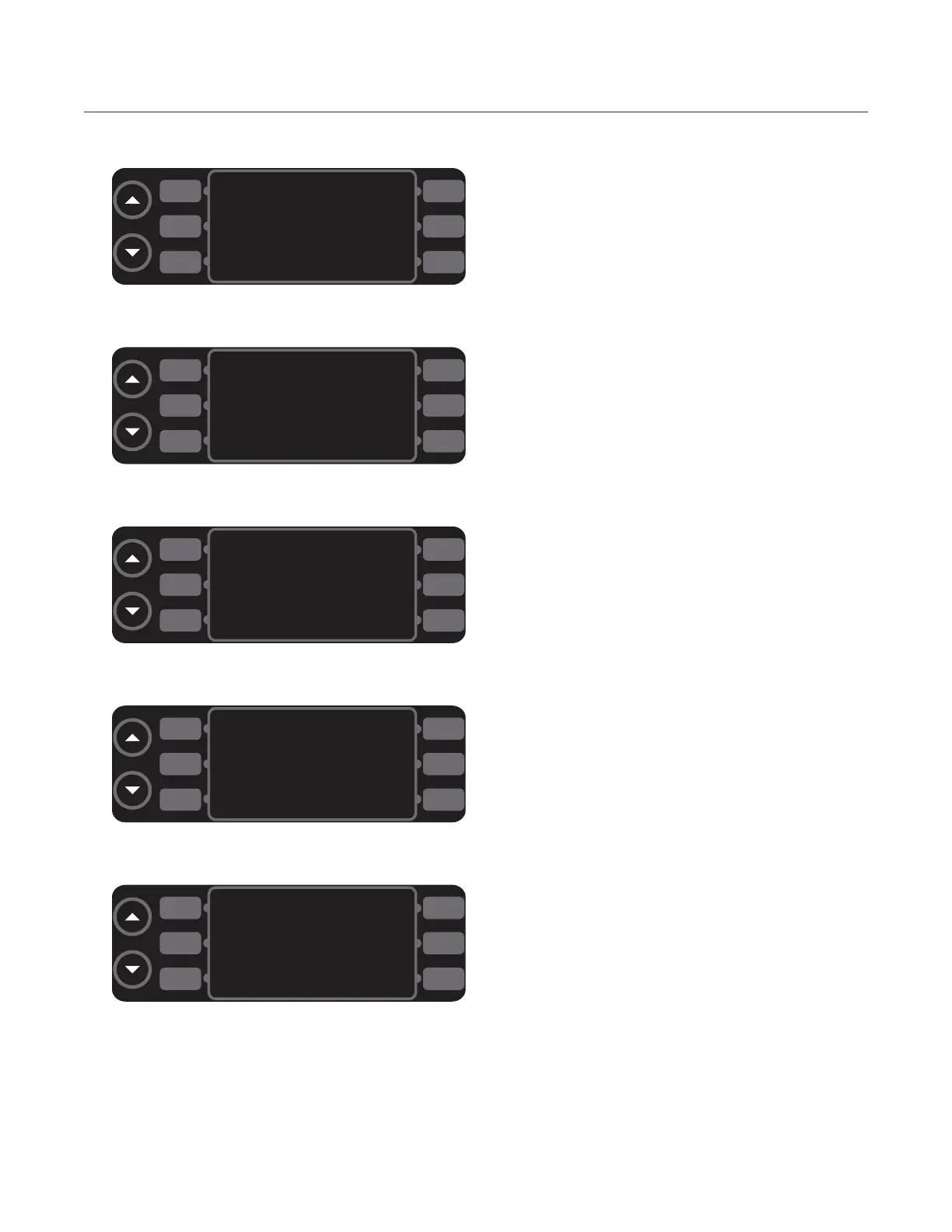

Figure 24: Info Screen
DEGS F
BELT L-R
EDIT/RIGID/FLEX
ENGLISH
SETUP MENU
VOL 3
INFO
Figure 21: Setup Mode
Changing the Display Temperature
The oven
can display the temperature in either
Celsius or Fahrenheit units. To change the display
temperature, touch L1 in setup mode (Figure
21).
Changing the Belt Direction
The oven’s belt(s) can travel from left to right or
right to left. To change the belt direction, touch
L2 in setup mode (Figure 21).
Edit Options Screen
The edit options screen (Figure 23) allows the
user to switch between full edit, rigid, and flex
options for profile name, belt speed, temperature,
and % air. For more information on the different
edit options, see Editing a Cooking Profile on
page 13.
To access
the edit options screen,
1. Touch L3 (Figure 21) to access the
password screen (Figure 22).
2. Input the password 6 6 3 3 by pressing the
soft keys adjacent to the numbers.
To change the edit option (Figure 23),
- Touch L1 to select full edit or rigid for
the profile name.
- Touch L3 to select full edit, rigid, or flex
for
the belt speed.
-
-
Touch R1 to select full edit, rigid, or flex
for the profile cook temperature setting.
Touch R3 to select full edit, rigid, or flex
for the % air setting.
Changing the Speaker Volume
Touch R2 (Figure 21) to change the volume of
the speaker. The volume can be set to either 0, 1,
2, or 3 (where 0 is mute and 3 is the loudest
setting).
F1: 0
F2: 0
F3: 0
F4: 0
F5: 0
F6: 0
F7: 0
F8: 0
F9: 0
F10: 0
FAULT COUNTS
Figure 20: Fault Counts Screen
1
2
3
4
5
<6633>
6
ENTER PASSWORD
Figure 22: Password Screen
NAME: FULL
BELT: RIGID
EDIT MODES
SELECT
TEMP: FLEX
AIR: FLEX
Figure 23: Edit Option Screen
L1
L2
L3
R1
R2
R3
L1
L2
L3
R1
R2
R3
L1
L2
L3
R1
R2
R3
L1
L2
L3
R1
R2
R3
L1
L2
L3
R1
R2
R3
