TurboChef TORNADO

OPTIONAL INSTALLATION ITEMS
Oven Restraint Kit (P/N TC3-0242)
The Oven Restraint Kit is an optional system
intended to hinder the oven from moving forward
during use and/or cleaning. It will not prevent the
oven from falling off a countertop if the legs are
allowed to slide off the edge or if the oven is inten-
tionally or forcefully pulled off.
Proper installation instructions are included with
the Oven Restraint Kit. If additional help is needed,
call Customer Service at
800.90TURBO (+1 214-
379-6000)
or your Authorized Distributor.
Fan
300 CFM (8.5 CMM)
Unobstructed
Airflow
Discharge
to Ambient
1: Must be included by contractor
Notes:
Unobstructed
Airflow
2.0" (51mm)
2.0" (51mm)
2.0" (51mm)
2.0" (51mm)
4.0"
(102mm)

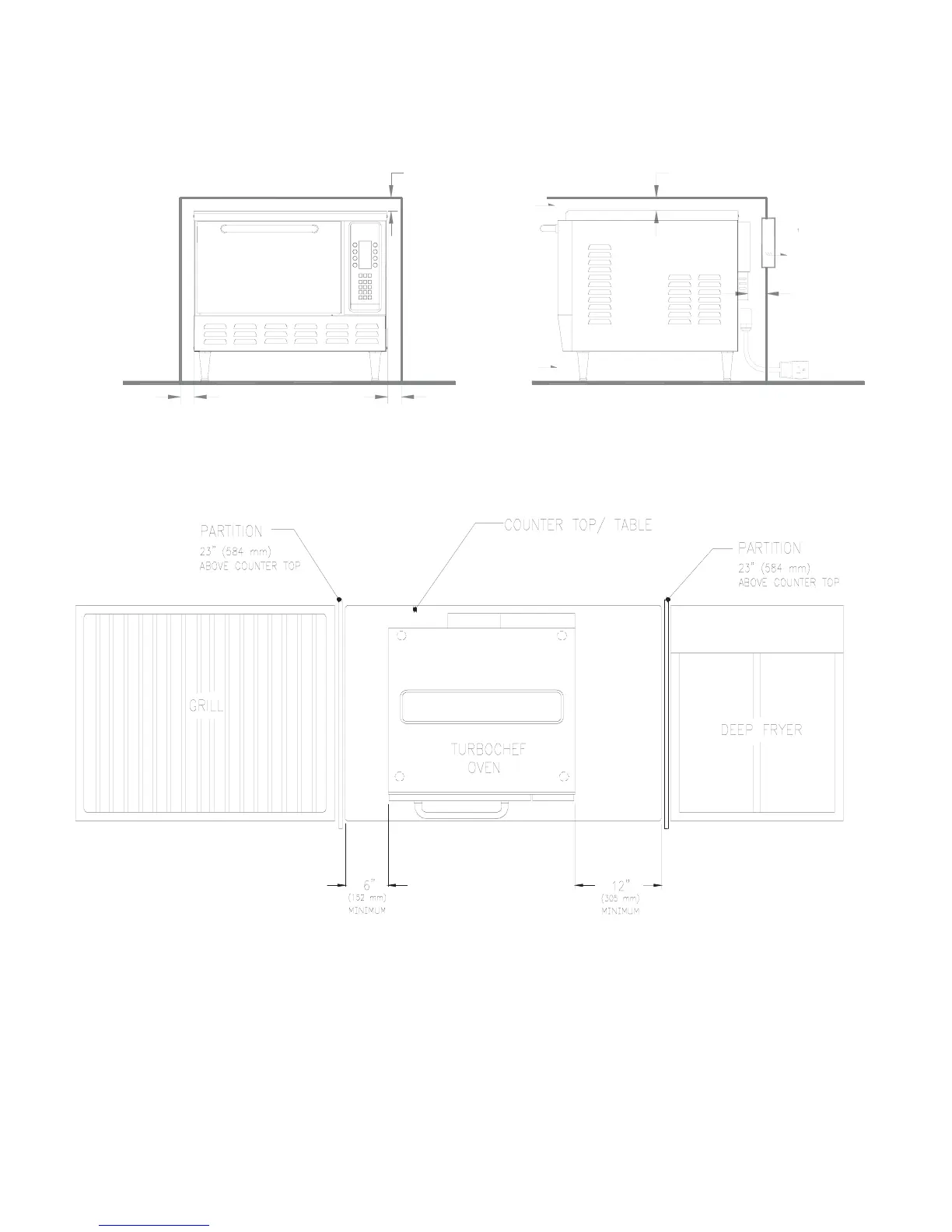

FIGURE 6: Installation Near Open Heat Source
FIGURE 5: Built-in Installation
7
ASSEMBLY AND INSTALLATION
