Installation
Electrical Connection
Each oven should be connected to an adequa
tely protected
power supply with an appropriate three wire power cord.
An isolation switch must be mounted adjacent to, but not
behind the oven and must be readily accessible to the
operator. This switch must be clearly marked and readily
accessible in case of fire.
Check the electricity supply is correct to as shown on the
Technical Data Plate on the front right hand corner of the
oven side panel.
NOTE: All electrical connections must only be carried
out by a suitably qualified person.
1. Remove oven right hand side panel.
2. Bring the supply cable up through the grommet at the
back of oven and through the compression gland on the
electrical switchgear panel.
3. Connect the mains supply to the appropriately marked
terminals on the terminal block.
Water Connection - Optional -
(Not required for Main Oven Operation)
1. If the manual addition of water into the oven for
humidification or steaming effect on baked product is
required, the unit’s water connection can be used.

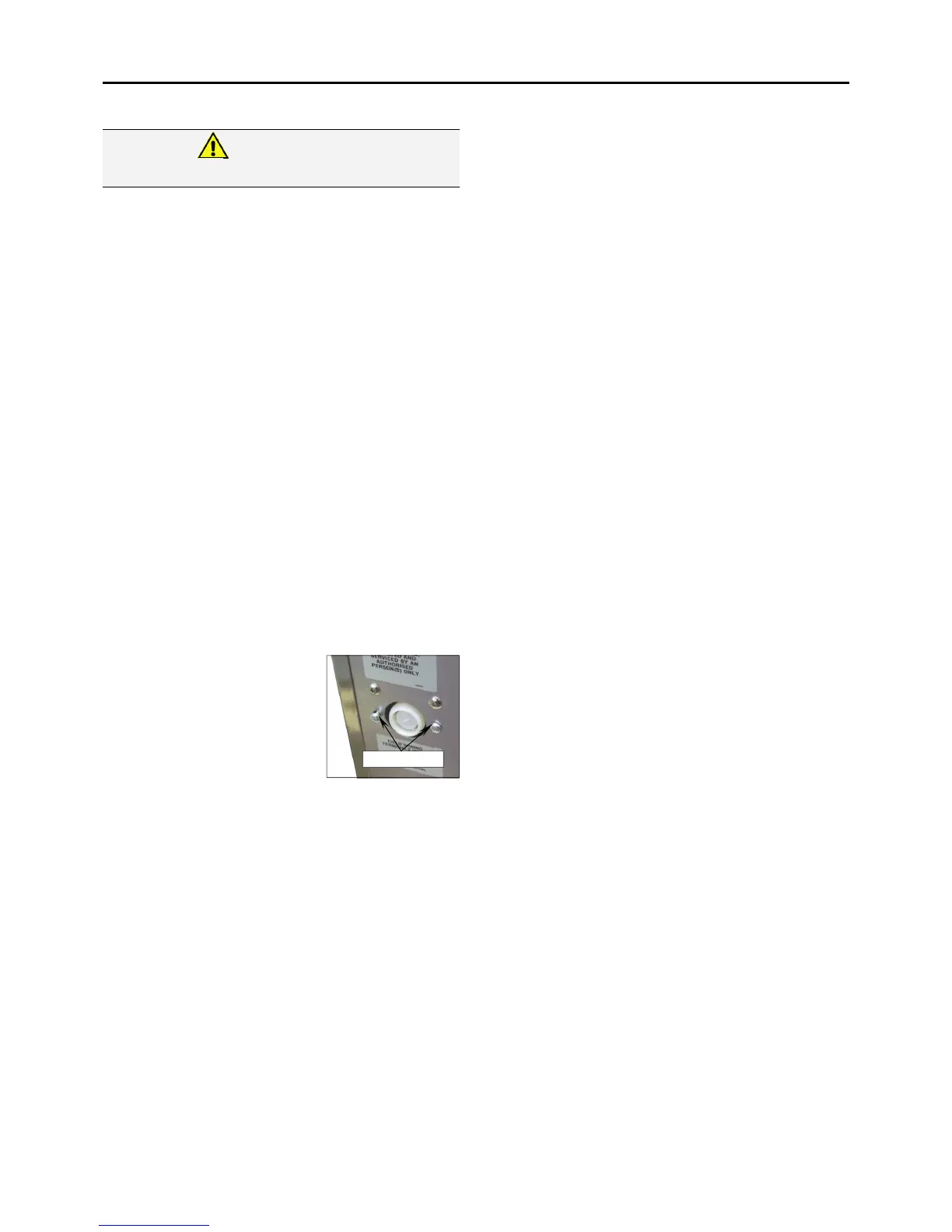

2. Tighten the 2 screws securing
the water connection to the rear
of the oven. (These have
purposely been left loose to
prevent damage to the water
connection during transit).
3. A cold water supply should be
fitted to the water inlet (¾” BSP hose connection)
which is located on the rear of the right hand side of
the oven.
4. Connect to the water supply.
- Max Inlet Pressure 80psi / 550kPa.
5. Turn
‘On’ the water supply and check for leaks.
Thi
s
ove
n
must be earthed / grounded.
Warning
Positioning and Levelling of Oven
1. Correctly locate the oven into its final operating position
and using a spirit level, adjust the oven feet so that the
oven is level and at the correct height.
Tighten Screws.
Any questions? Contact us at www.eventservicesgroup.co.uk
