| H-SERIES FUEL TRANSFER PUMPS
INSTALLATION AND OPERATION MANUAL
# Kit Description Parts
1 KIT120BD* BioDiesel Kit O-ring, inlet and bypass cap seals, bypass valve poppet
2 KIT120RGG Rotor and Vane Kit Rotor cover, rotor, vanes, rotor key, O-ring seal, attaching hardware
3 KIT120JCH Junction Cover Kit Junction cover, seal, fasteners
4 KIT120SL Seal Kit O-ring, shaft seals, retainer clip
5 KIT120BV Bypass Service Kit Bypass valve, valve spring, bypass cap, O-ring seal
6 KIT120NB Nozzle Boot Kit Nozzle boot, attaching hardware
7 KIT120BG Inlet Flange Kit Inlet flange (bung), attaching hardware, inlet seal, screen
8 KIT120SG Inlet Gasket and Screen Gasket for inlet (bung) and screen
9 KIT120SWH Switch Lever Kit Switch lever, mounting hardware
*KIT120BD not called out in diagram above

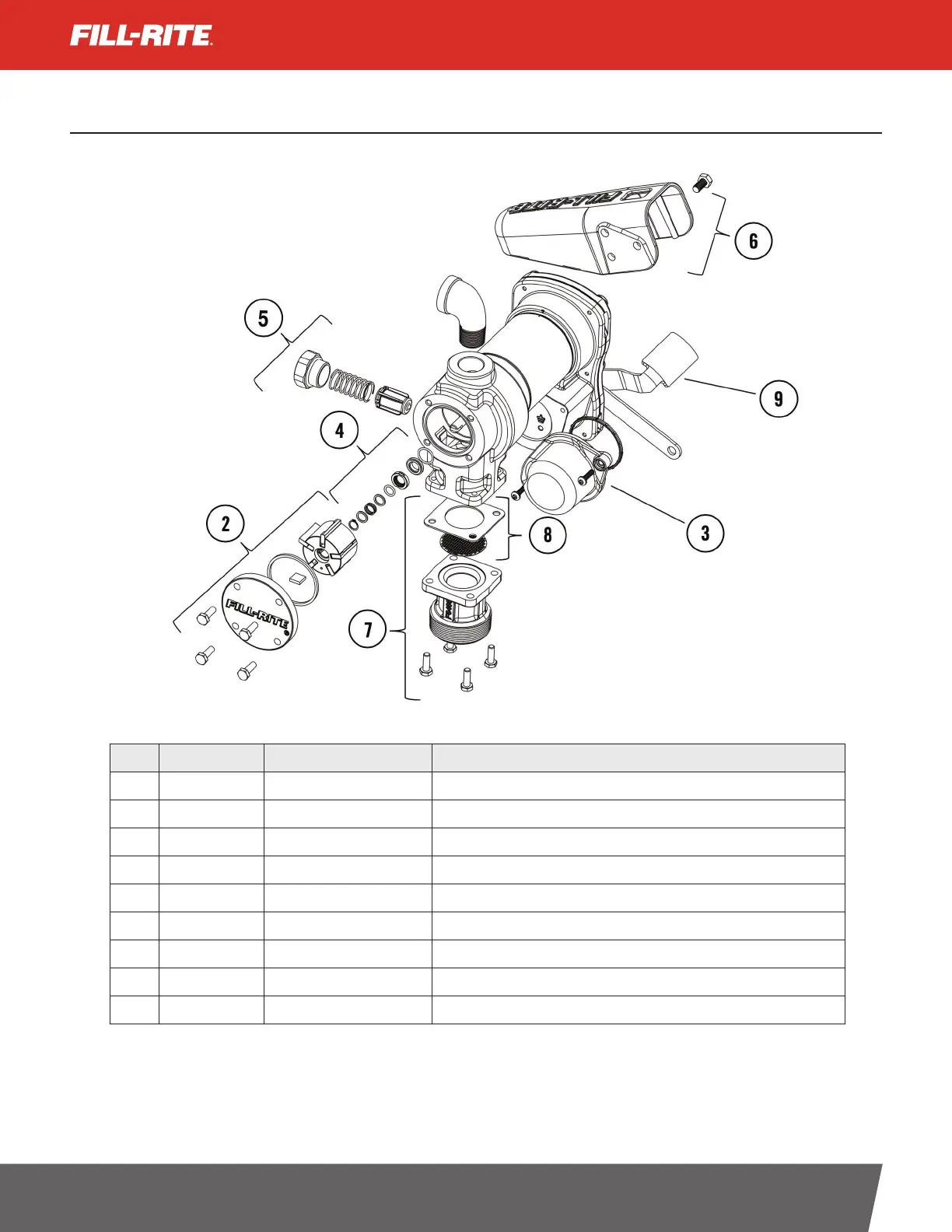

Pump Service Kits
