5. Menu Operations
● BRIGHT
- Used to set the brightness level from -100
to 100.
• Brightness can be adjusted by using the
control knob on the front of the monitor.
● CONTRAST
- Used to set the contrast level from -100 to
100.
• Contrast can be adjusted by using the
control knob on the front of the monitor.
● CHROMA
- Used to set the saturation level from -50 to 50.
• Chroma can be adjusted by using the control
knob on the front of the monitor.
● APERTURE
- Used to set the picture sharpness level from
0 to 25.
• Aperture can be adjusted by using the
control knob on the front of the monitor.
● ASPECT
- Used to change the various display ratio
between 4:3 and 16:9.
● 3G FORMAT
- Used to select input format of SDI 3G A/B
support. (NORMAL MODE(AUTO - A 422
10BIT_YCbCr 50/60P), A 444 10/12BIT_YCbCr,
A 444 10/12BIT_RGB, A 422 12BIT_YCbCr, B
444 10/12BIT_YCbCr, B 444 10/12BIT_RGB, B
422 12BIT_YCbCr, B 422 10BIT_YCbCr 50/60P).
- Automatically detects when Payload signal
appears in NORMAL MODE.
● VIDEO RANGE SELECT
- Used to set the VIDEO RANGE of input signal.
(FULL/NARROW)

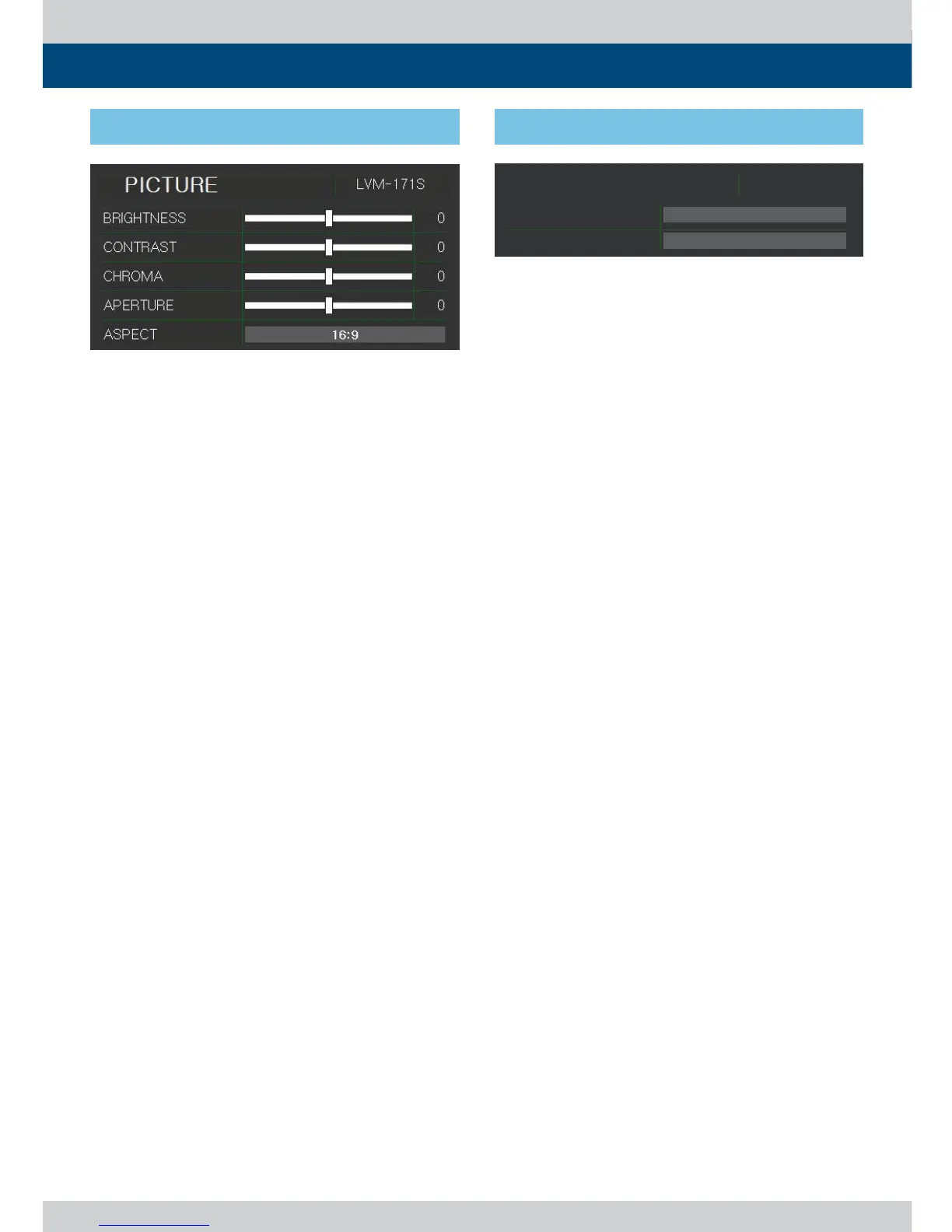

[1] PICTURE [2] VIDEO
ZnGmvyth{
}pklv
·ͺ͵Ͷ΀΃ͲͿ͸Ͷ΄ͶͽͶʹ΅
s}tTX^Xz
uvyths
m|ss
