TVLogic F-5A User Manual

FHD Viewnder Monitor 9
3. Controls & Functions
REAR REAR
• [HDMI IN]
- Signal input terminal for HDMI signal.
• [HDMI OUT]
- Signal output terminal for HDMI signal.
- Video source from SDI input terminal can be
converted to HDMI format.
• [HEADPHONE] (Phonejack)
- Used for Stereo Audio Output through Phone
Jack. (video signals with embedded audio
only)
• [REAR TALLY]
- Activates same as [SCREEN TALLY].

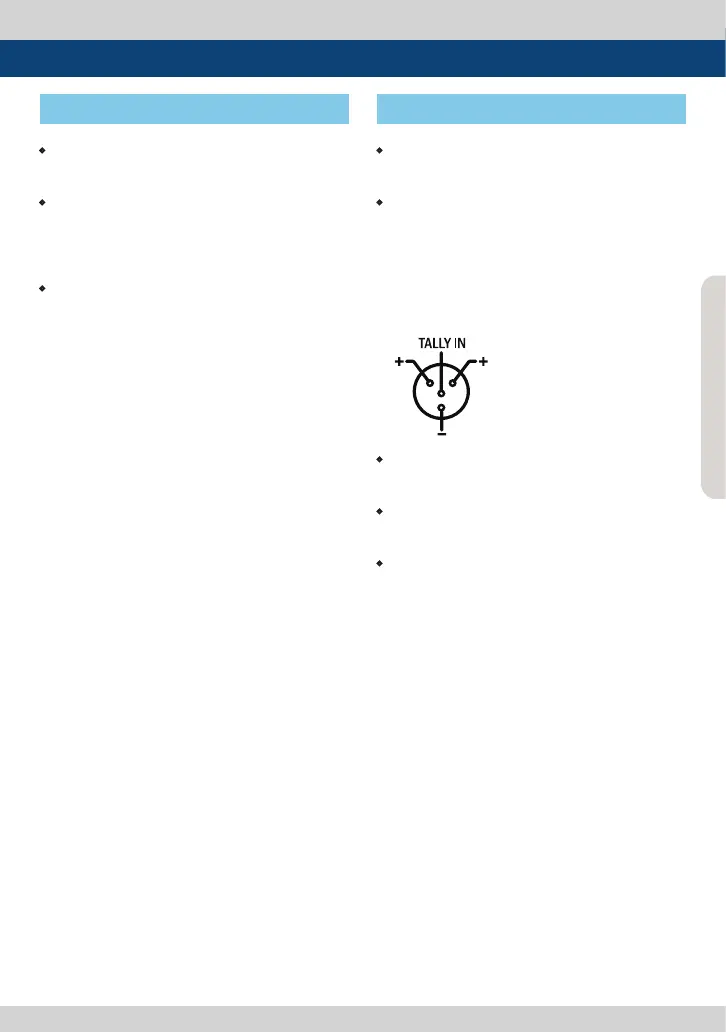

• [DC POWER / TALLY] (XLR 4P)
- Tally Signal In Level DC5V ±2V
- Battery Power Input terminal for DC 12V
- Rated Power Input : DC 12V 0.65A/34V 0.27A
* When using a DC Adapter other than the one
supplied by the manufacturer, please be
advised that the adapter with DC 12V/3A ~ 6A
can be compatible with the monitor.
• [Battery In]
- Battery Power Input : DC 6V 1.25A/34V 0.27A
• [SDI IN] (BNC)
- Signal input terminal for HD/SD/3G SDI signal.
• [SDI OUT] (BNC)
- Signal output terminal for HD/SD/3G SDI
signal.
- Video source from HDMI input terminal can be
converted to SDI format.
<Warning!!>
When using the product make sure to ground,
whenever possible, before connecting the
input signal cable in order to prevent any
possible damage to the product or connected
devices. The damage may include signal noise,
malfunction of main board or display panel.
And the connected devices such as camera
or video source player may also be inuenced
through signal cable. Please check if the AC
power source and the power extender or power
distributor is grounded.
