TVLogic F-7H - Audio

FHD High Bright Field Monitor 24
• VOLUME
- Used to control the output volume for the
[AUDIO OUT] on the back of the monitor.
- Control range is from 0 to 30.
• AUD LEFT
- Used to set embedded audio channel for
left audio out of [AUDIO OUT] terminal on
the back of the monitor.
- Available values are between CH1~CH16
and Ext..
* In the HDMI mode, Left is set to CH1.
• AUD RIGHT
- Used to set embedded audio channel for
right audio out of [AUDIO OUT] terminal on
the back of the monitor.
- Available values are between CH1~CH16
and Ext..
* In the HDMI mode, Right is set to CH2.
• LEVEL METER
- Used to set the Level Meter for the
embedded audio.
- Available options are :
SDI Input : [O ]-[16CH(Hor.)]-[16CH(Ver.)]
HDMI Input: [O ]-[2CH(Hor.)]-[2CH(Ver.)]
*
16 CH(HOR.) : Displays 8 channels on top
left and 8 channels on top right of the screen
horizontally.
*
16 CH(VER.) : Displays 8 channels on center
left and 8 channels on top right of the screen
vertically.
• LVM DISPLAY
- Used to set the display method for audio
level meter.
- Available modes are Group and Pair.
* In the HDMI mode, the mode is set to Pair.
• LVM REFERENCE
- Display the default audio level meter value,
- Available options are -18dB and -20dB.
- Audio level meter within selected value
turns to green and exceeded audio level is
displayed in yellow.
- Audio level exceeding -4dB is displayed in
red.
• LVM SIZE
- Used to control the size of the audio level
meters.
- Available options are NORMAL and LAGRE.
• PEAK DECAY TIME
- Sets the reduction time for max value
indication of audio signals.
- Control range is from MIN 0 to MAX 100.
Bigger number means a longer display time
for max value.

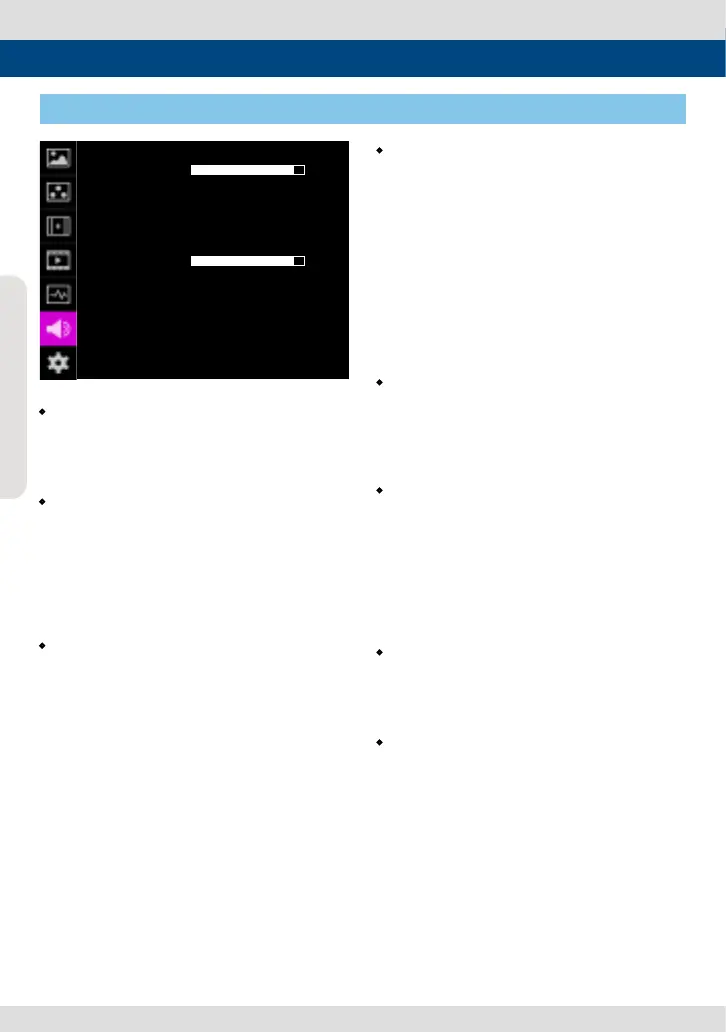

[6] AUDIO
5. Menu Operations
AUDIO F-7H
VOLUME
AUD LEFT
AUD RIGHT
LEVEL METER
LVM DISPLAY
LVM REFERENCE
LVM SIZE
PEAK DECAY TIME
OFF
FOF
OFF
PAIR
-18 dB
SMALL
+ 90
+ 90
