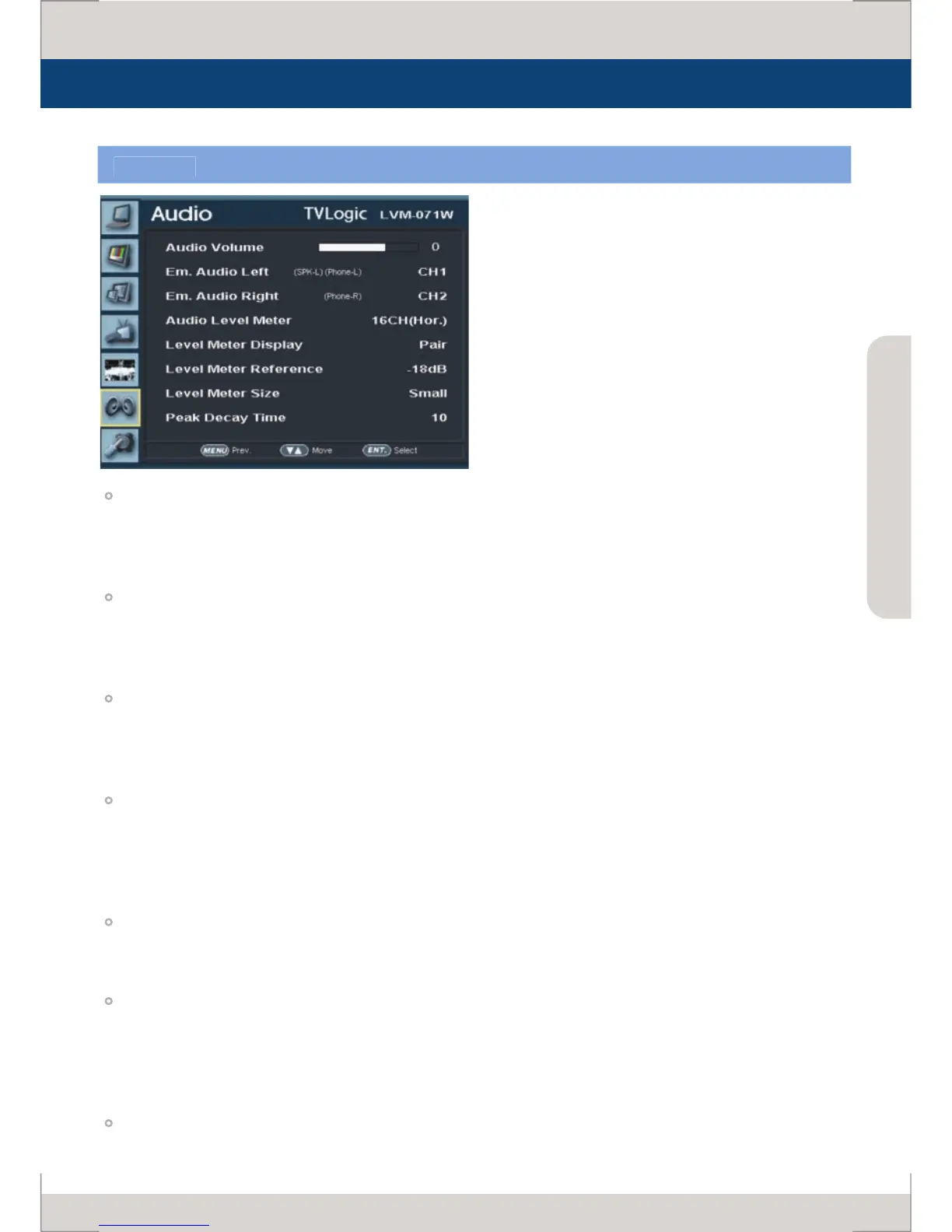

[7] AUDIO
AUDIO VOLUME
- This item controls the embedded audio output volume for the internal speakers and [AUDIO OUT]
on the back of the monitor.
- Available values are between 0 ~ 20
EM. AUDIO LEFT
- This item controls embedded audio channel for left audio out of internal speaker and [AUDIO OUT] in
the back of the monitor.
- Available values are between CH 1 ~ CH 16.
EM. AUDIO RIGHT
- This item controls embedded audio channel for right audio out internal speaker and [AUDIO OUT] in
the back of the monitor.
- Available values are between CH 1 ~ CH 16.
AUDIO LEVEL METER
- This item controls the audio level meters.
- Available modes are OFF, 16 CH(HOR.) and 16 CH(VER.)
* 16 CH(HOR.) : Displays 8 channels on top left and 8 channels on top right of the screen horizontally.
* 16 CH(VER.) : Displays 8 channels on center left and 8 channels on center right of the screen vertically.
LEVEL METER DISPLAY
- This item controls display method of audio level meter.
- Available modes are PAIR and GROUP.
LEVEL METER REFERENCE
- This item sets audio level default.
- Available values are -18dB and -20dB.
- Audio within selected value is displayed in green and exceeded audio level is displayed in yellow.
Audio exceeding -4dB is displayed in red.
LEVEL METER SIZE
- This item controls the size of the audio level meters.
- Available modes are NORMAL and LARGE.
