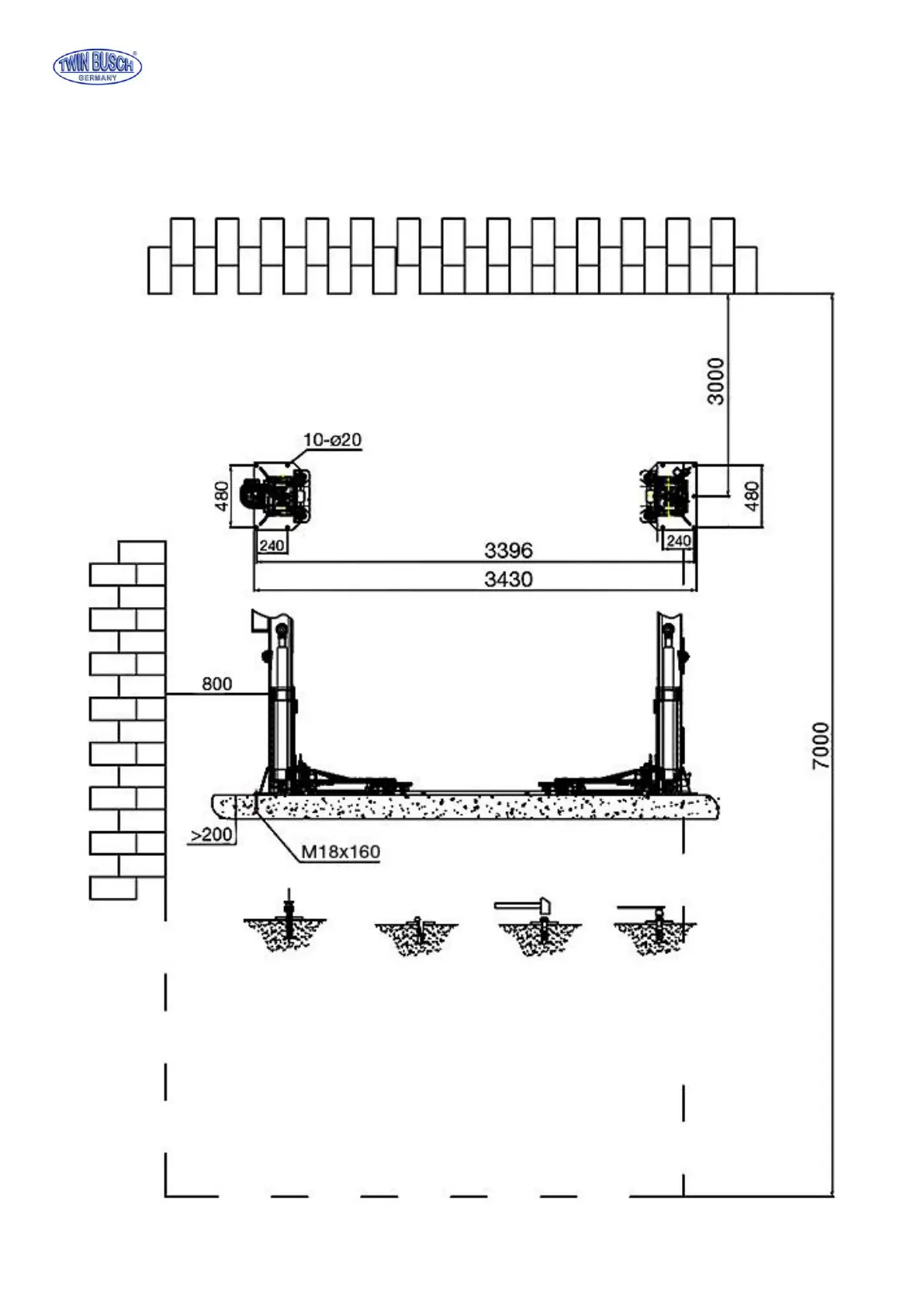

Attachment 3, Diagram for ground fixtures
New Concrete 28 days drying
Concrete thickness >200 mm
Expansion bolts: M18x10
Floor level <5 mm
