twin busch TW 242 E - Exploded Drawings

TWIN BUSCH GmbH
Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved.
page 31 of 45

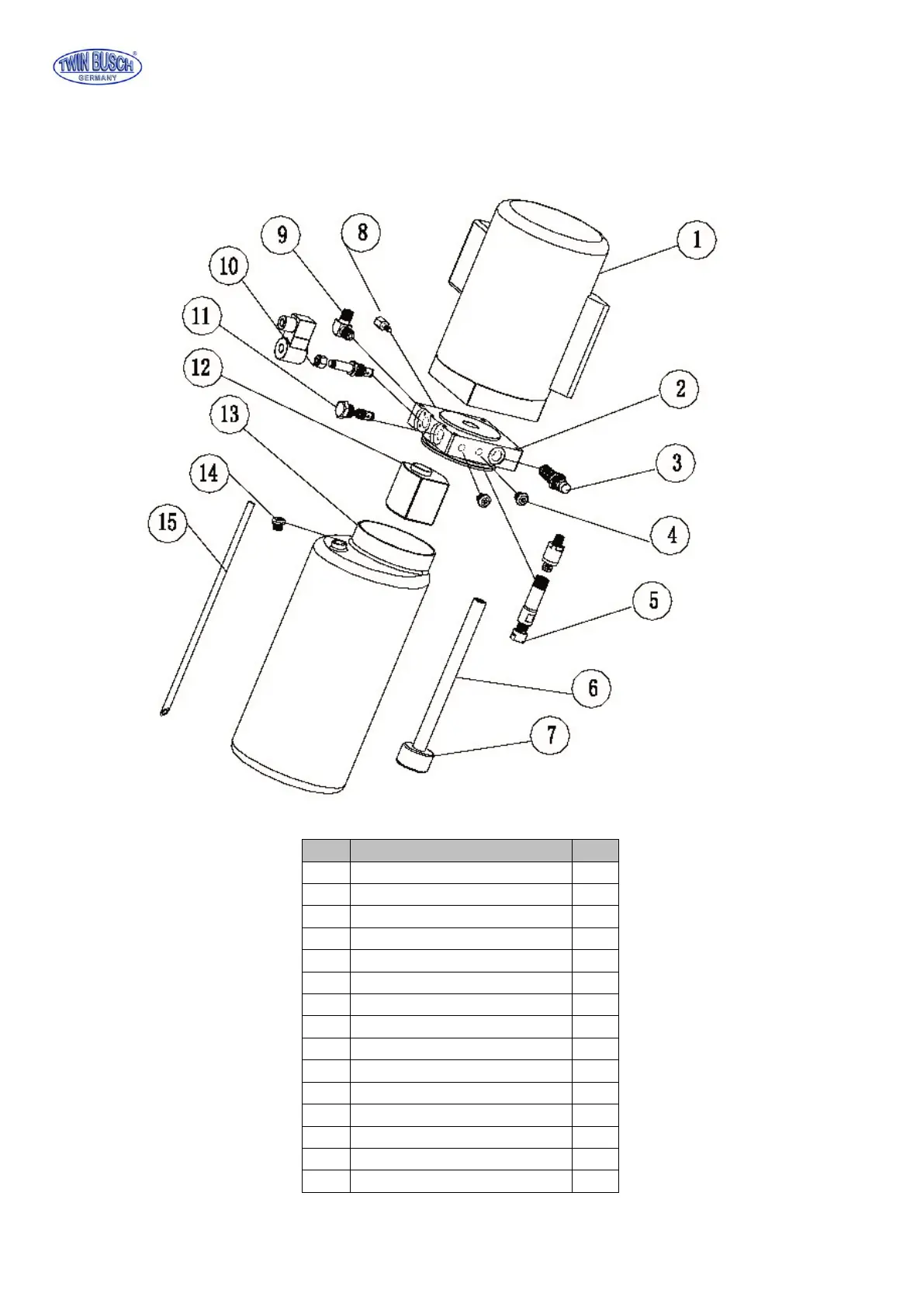

Attachment 6, Explosion drawings
S/N
Name
Qty
1
Motor
1
2
Hydraulic block
1
3
Overflow valve
1
4
Removable plug
2
5
Cushion valve
1
6
Oil absorbing pipe
1
7
Oil filter
1
8
Throttle valve
1
9
Oil pipe tie-in
1
10
E-magnetic unloading valve
1
11
One-way valve
1
12
Gear pump
1
13
Plastic oil tank
1
14
Oil tank cover
1
15
Oil back pipe
1
