twin busch TW 242 E - Page 32

TWIN BUSCH GmbH
Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved.
page 32 of 45
S/N
Material #
Name
Drawing#
Qty
Property
Note

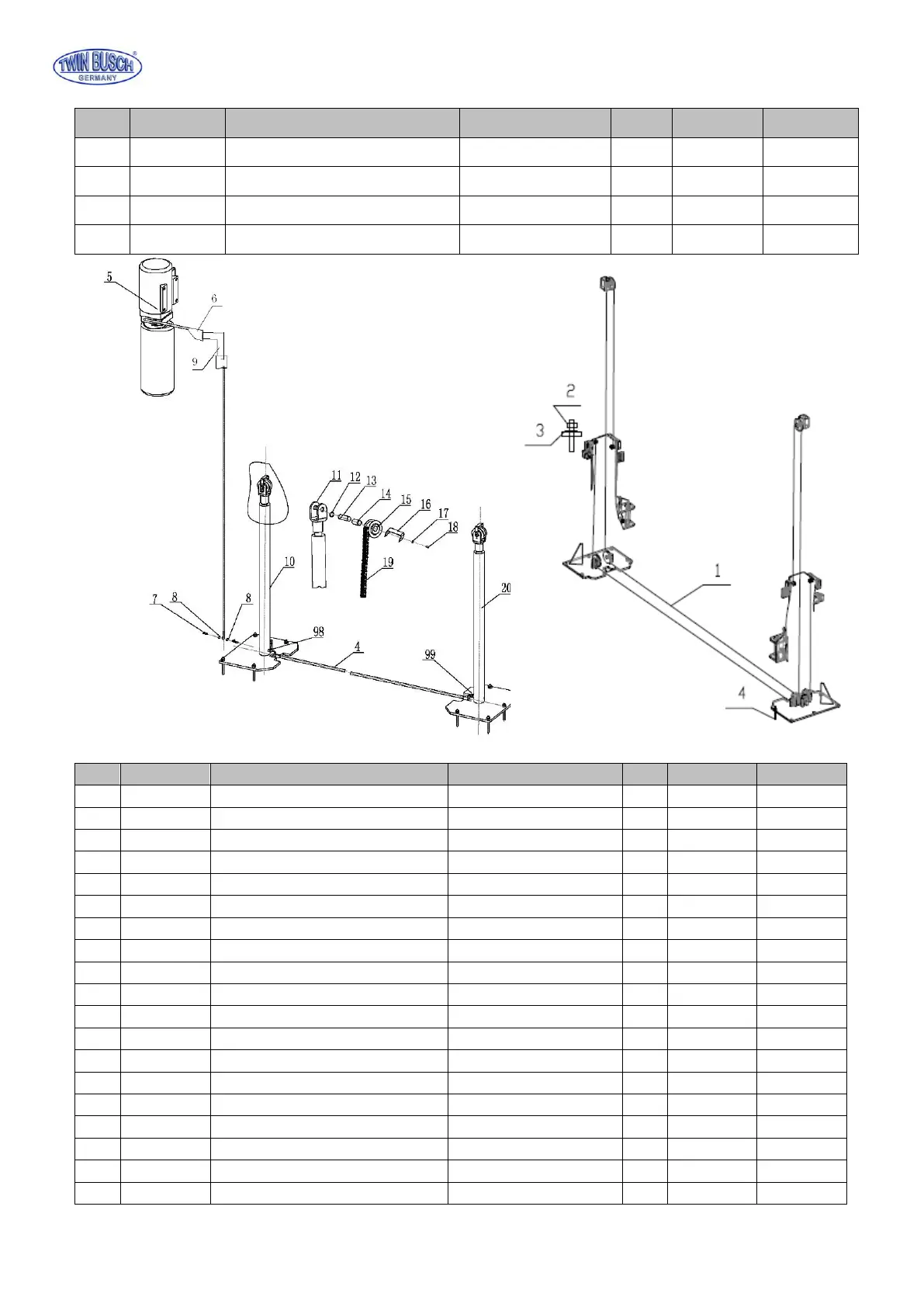

4
Rubber oil hose L=2900
1
Assembly
5
Power unit (electrical release)
1
Assembly
6
PU oil hose L=500
1
Assembly
7
Composite connector
2
Assembly
8
Composite washer
Match with 1/4connector
4
Standard
9
Square Connector
1
Assembly
10
Drive oil cylinder
FL-8224-A4-B2
1
Assembly
11
Chain wheel bracket
FL-8224-A4-B9
2
Zinc -plating
12
Type B circlip 25
GB/T894.2-1986
4
Standard
13
Chain wheel shaft
FL-8224-A4-B11
2
Zinc -plating
14
Bearing 2548
SF-1
2
Standard
15
Chain wheel
FL-8224-A4-B10
2
Zinc -plating
16
Baffle plate
FL-8224-A4-B12
2
Zinc -plating
17
Spring washer M6
GB/T93-1987
4
Standard
18
Inside hex cylinder head screw M6*10
GB/T70.1-2000
4
Standard
19
Chain
LH1234-127LGB/6074-1995
2
Standard
20
Assistant oil cylinder
FL-8224-A4-B3
1
Assembly
98
Main oil cylinder connector
FL-8224-A4-B4
1
Zinc -plating
99
Assistant oil cylinder connector
FL-8224-A4-B5
1
Zinc -plating
S/N
Material #
Name
Drawing#
Qty
Property
Note
1
Steel cable L=8820mm
FL8224-A6
2
Assembly
2
Hex nut M16
GB/T610-2000
8
Standard
3
Class C flat washer M16
GB/T95-1985
4
Standard
4
Expansion bolt M18*180
10
Standard
