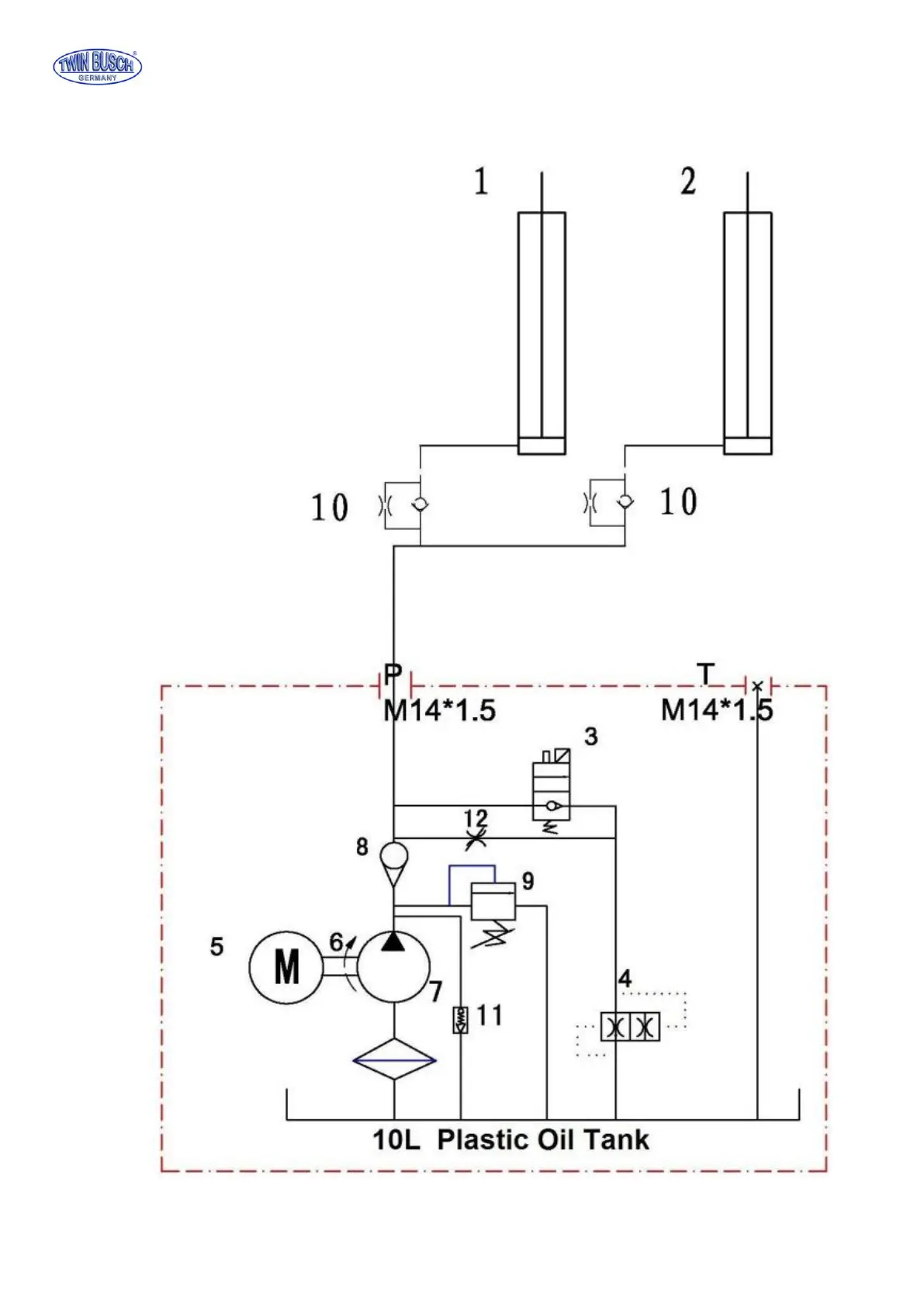

Attachment 4, Hydraulic system
Attachment 5, Wiring diagram
1. Main cylinder
2. Assistant cylinder
3. E-magnetic unloading valve
4. Throttle valve
5. Motor
6. Coupling
7. Gear pump
8. Single-way valve
9. Overflow valve
10. Anti-surge valve
11. Cushion valve
12. Emergent unloading valve
