twin busch TW 242 E - Spare Parts List

TWIN BUSCH GmbH
Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved.
page 37 of 45

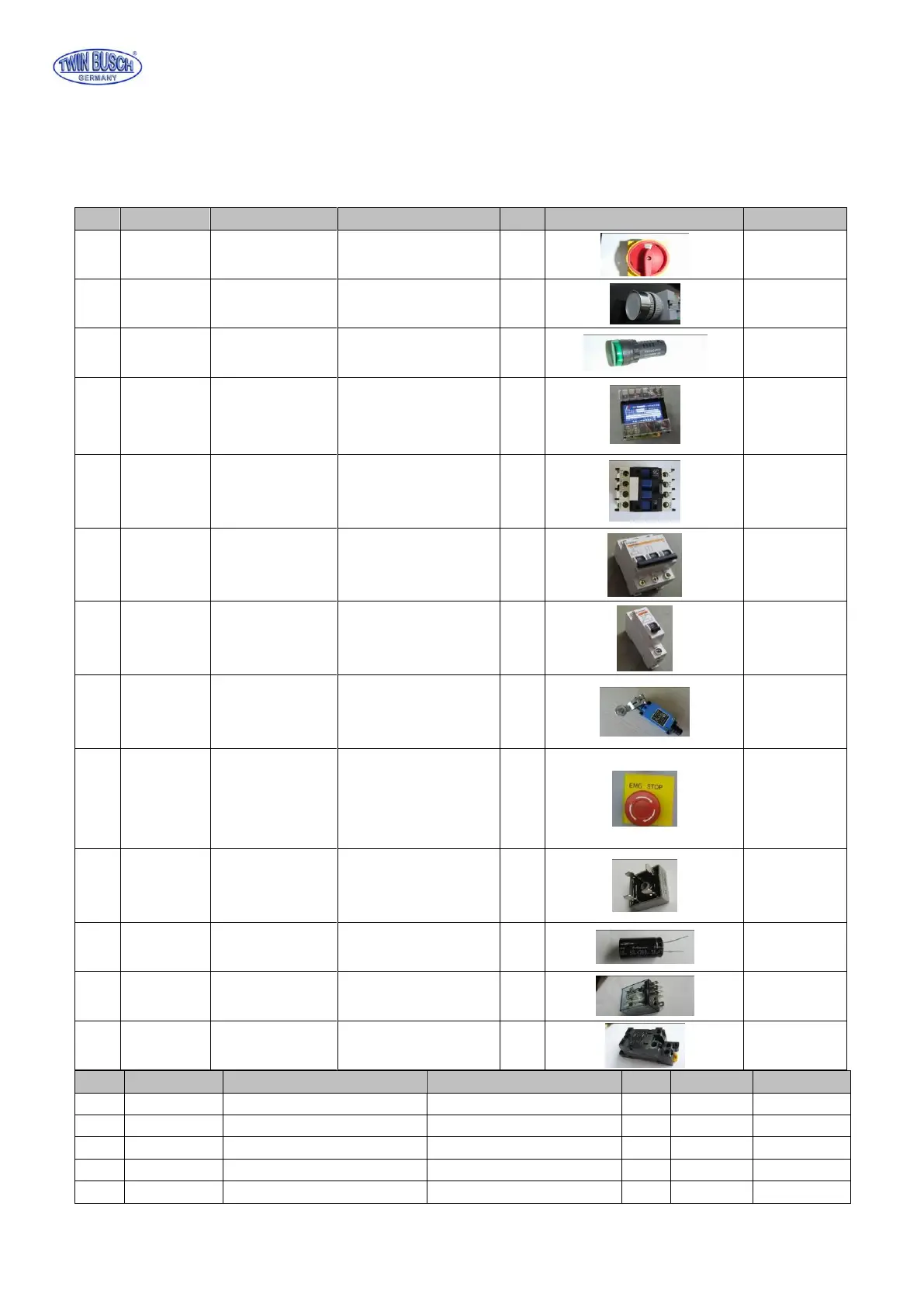

Attachment 7, Spare parts list
S/N
Material #
Name
Spec.
Qty
Pic.
Note
1
Power switch
LW26GS-20/04
1
2
Button
LAY711BN12
1
3
Power indicator
AD17-22G-AC24
1
4
Transformer
JBK3-160VA400V-24V
Bk 一 160VA110V 一
24V 一 60HZ
1
5
AC contactor
CJX2-1210/AC24V
CJX2-3210- AC24V
1
6
Circuit breaker
DZ47-63 C16/3P
DZ47-63 C32/2P
1
7
Circuit breaker
DZ47-63 C3/1P
1
9
Limit switch
ME8104
1
11
Emergency stop
LAY701ZS42
1
12
Bridge rectifier
KBPC5A-35A
1
13
Capacitor
4700UF/50A
1
14
Relay
LY2NJ/AC24
1
15
Relay holder
PTF-08A
1
S/N
Material #
Name
Drawing#
Qty
Property
Note
1
Slider
FL-8224-A3-B6
16
Nylon 1010
2
Rubber lifting pad
FL-8224-A7-B3-C4
8224E-A7-B4-C4
4
Rubber
3
Y-shape seal ring
KD 63*48*10
1
4
O-shape seal ring
(ID)23.6*3.55
1
5
Anti-dust ring
DHS 40*48*5/6.5
1
