TWIN BUSCH GmbH
Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved.
page 9 of 45

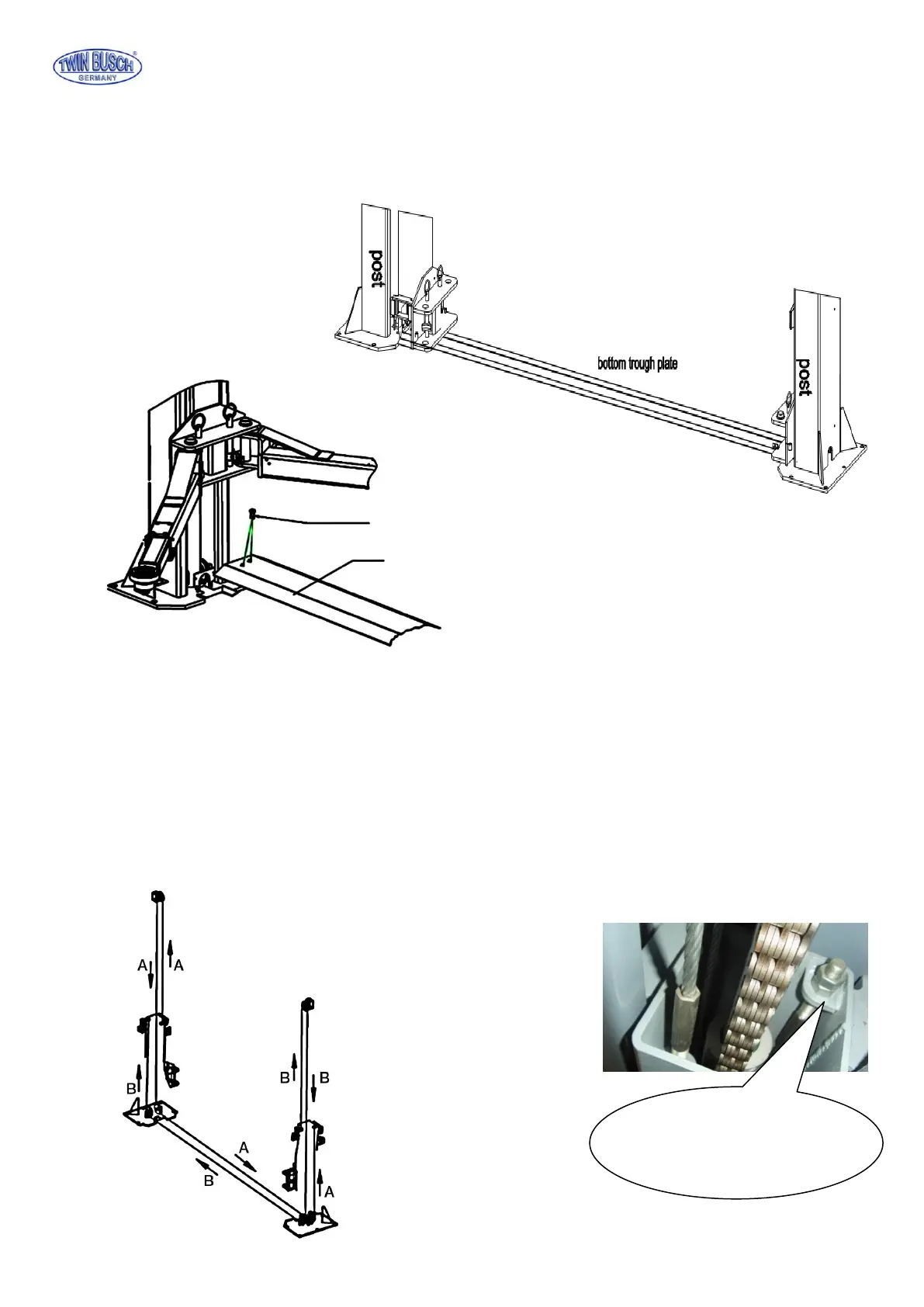

Step 7：Fitting the bottom protection plate.
Raise the lift to about 800mm and activate the safety locks, then mount the base plate
Screw/dowel
bottom trough plate
Step8: Connecting the steel cables.
1. Raise carriages on both sides approximately 800mm above the ground.
2. Make sure that the safety locks on each column are fully engaged before attempting to route the cables.
3. Carriages must have the same height from the floor before proceeding.
4. Fit the cables as shown in the diagram.
5. The cables should be so adjusted that the safety mechanism engages simultaneously when lifting.
6. The cables must be secured and lubricated.
Cable adjustment nut, make
sure both nuts are
tightened!
