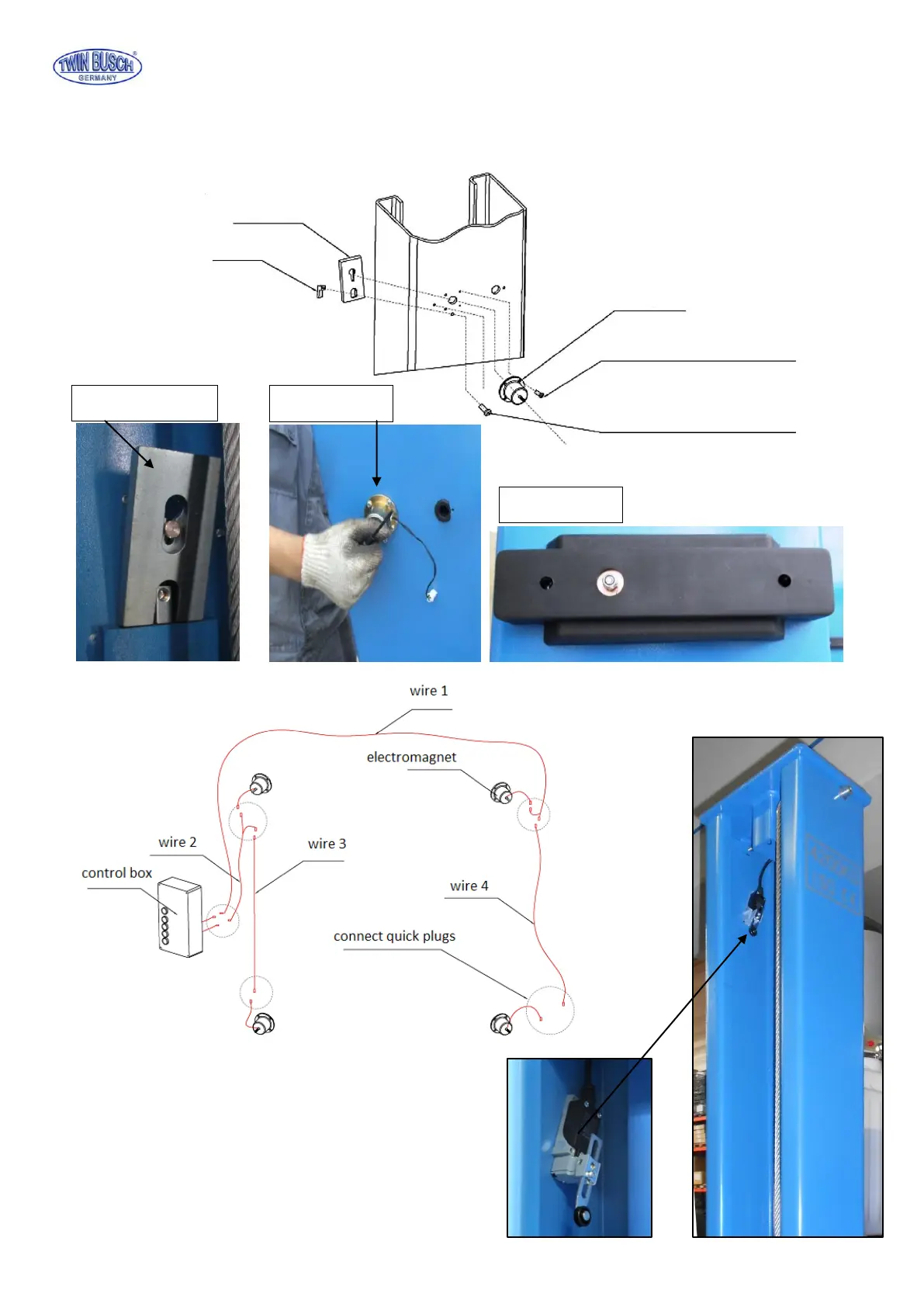

Step 7: Mount the safety mechanism and the electro magnets then the protection cover.
Mount the Limit switch on the upper inner side oft he main post.
Safety latch
Bracket
Electro magnet
M5*10 Screw
M6*16 Screw
Safety latch
Electro magnet
Protection cover
