twin busch TW 242 E - Page 34

TWIN BUSCH GmbH
Technical changes for purposes of a technical advancement as well as deviation in colour, errors and printing mistakes are reserved.
page 34 of 45

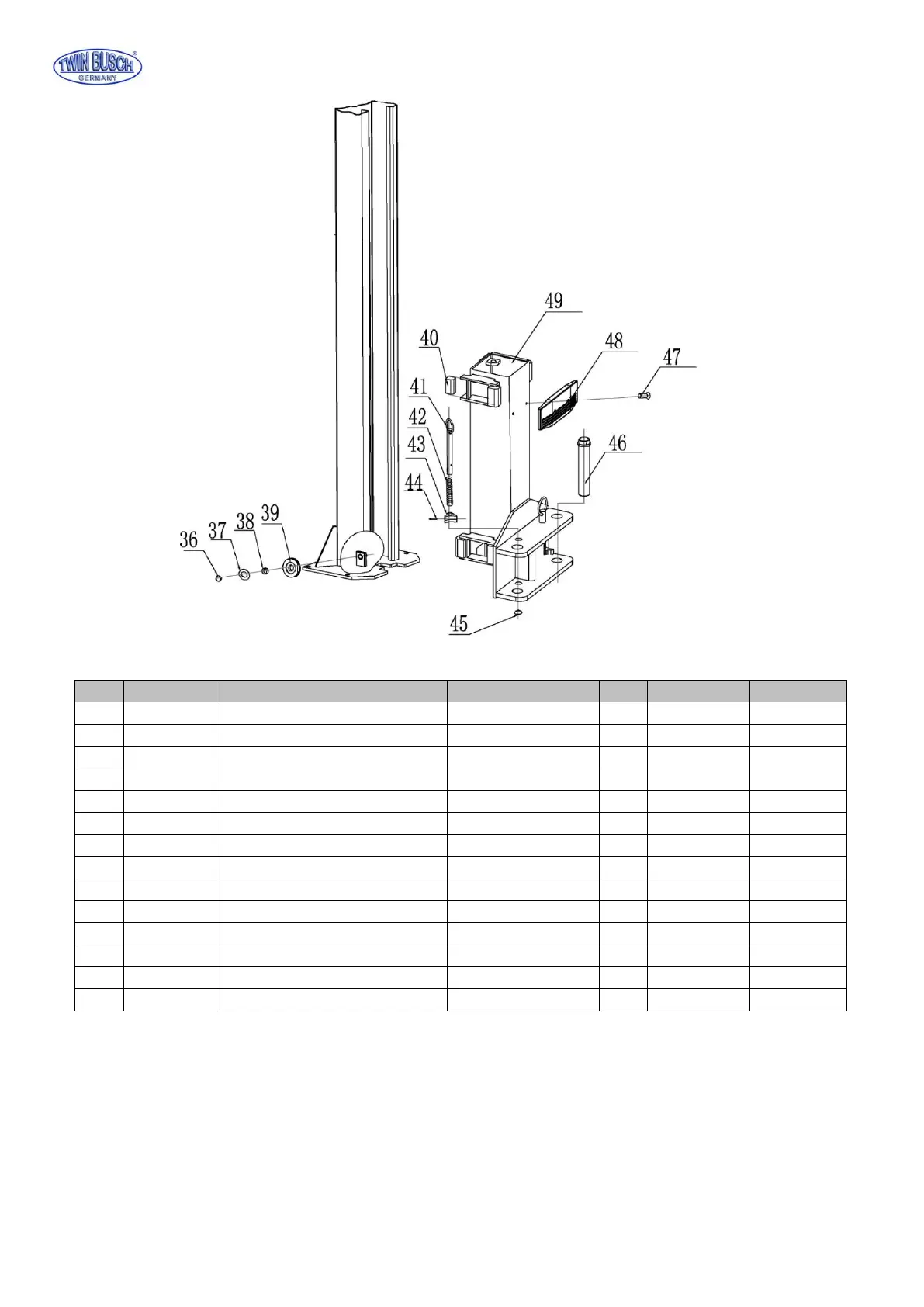

S/N
Material #
Name
Drawing#
Qty
Property
Note
36
Type B circlip 25
GB/T894.2-1986
4
Standard
37
38
Bearing 2516
SF-1
4
Standard
39
Down pulley
FL-8224-A1-B2
4
Zinc-plating
40
Slider
FL-8224-A3-B6
16
Nylon
41
Pulling rod
FL-8224-A3-B2
4
Zinc-plating
42
Pressure spring
FL-8224-A3-B5
4
Zinc-plating
43
Teeth block
FL-8224-A3-B6
4
Zinc-plating
44
Elastic pin 5*35
GB/T879.1-2000
4
Standard
45
Type B circlip 22
GB/T894.2-1986
4
Standard
46
Pin shaft assembly
FL-8224E-A12
4
Zinc-plating
47
Cross socket flat head screw M8*16
GB/T819.1-2000
4
Standard
48
Protection rubber pad
FL-8224-A3-B7
2
Rubber
49
Carriage assembly
FL-8224-A3-B1
2
Welded
