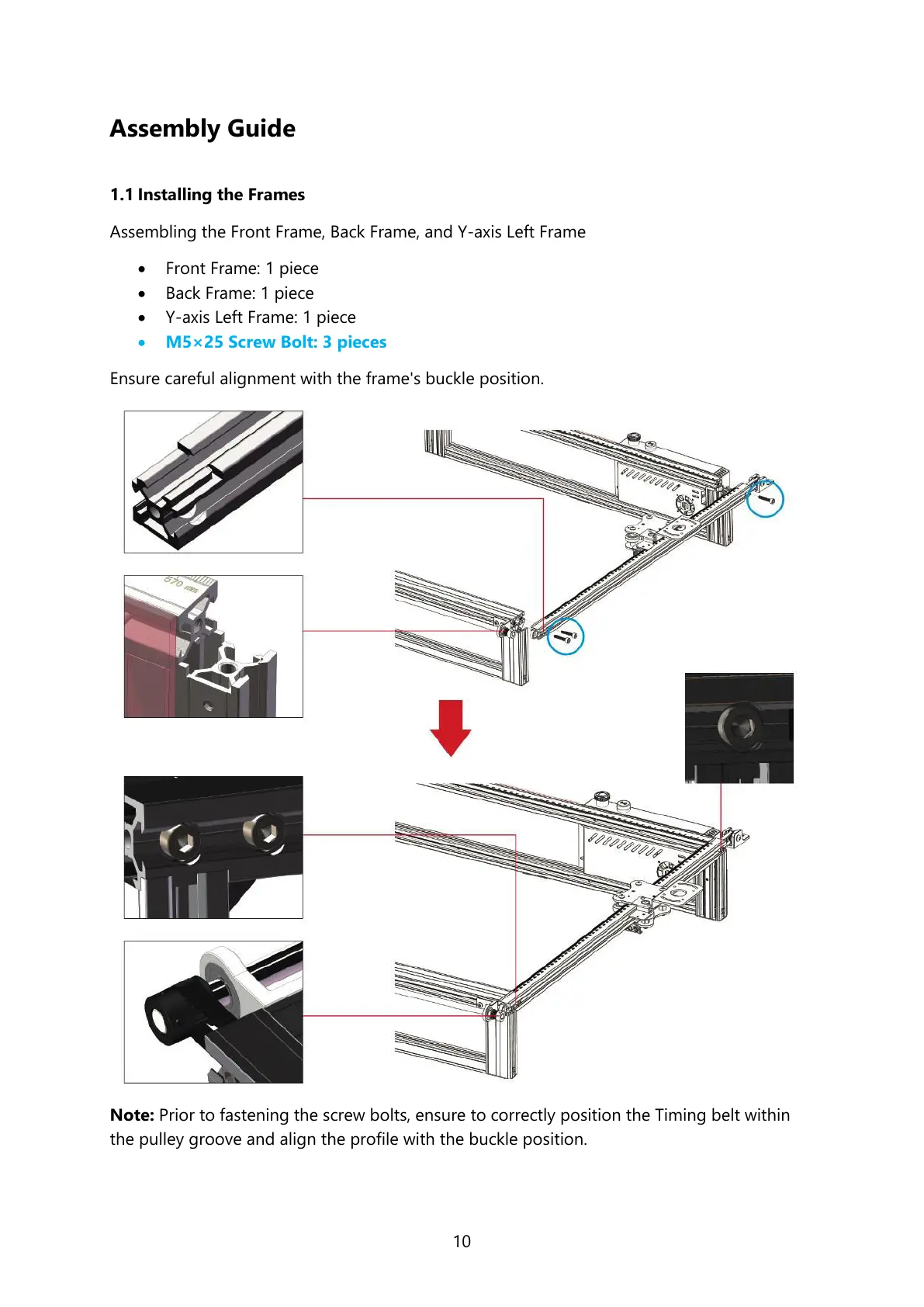

Assembly Guide
1.1 Installing the Frames
Assembling the Front Frame, Back Frame, and Y-axis Left Frame
Front Frame: 1 piece
Back Frame: 1 piece
Y-axis Left Frame: 1 piece
M5×25 Screw Bolt: 3 pieces
Ensure careful alignment with the frame's buckle position.
Note: Prior to fastening the screw bolts, ensure to correctly position the Timing belt within
the pulley groove and align the profile with the buckle position.
