TWO TREES TS2 - Motherboard Diagram

37

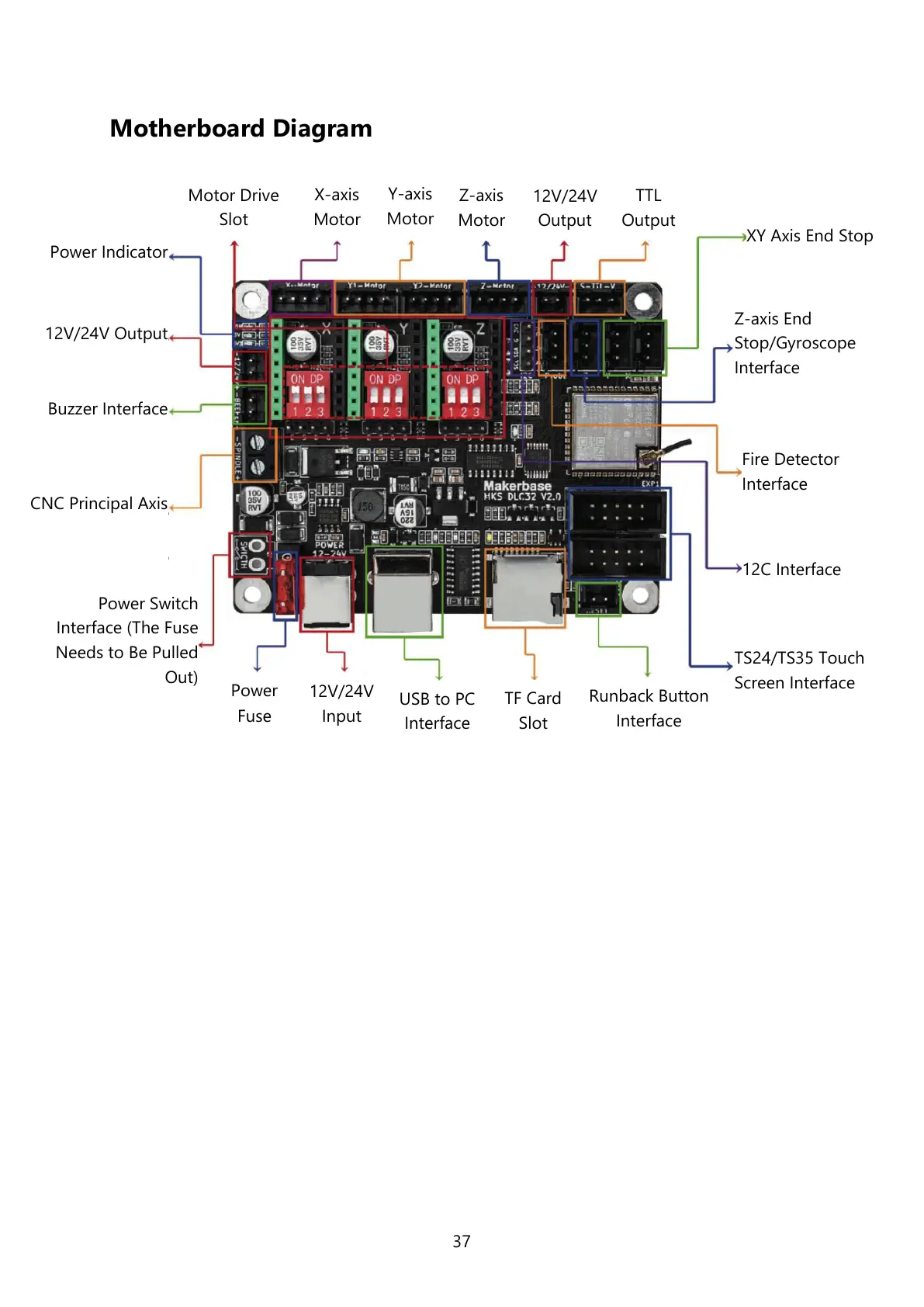

Motherboard Diagram
Power Indicator
12V/24V Output
Buzzer Interface
CNC Principal Axis
Power Switch
Interface (The Fuse
Needs to Be Pulled
Out)
Power
Fuse
12V/24V
Input
USB to PC
Interface
TF Card
Slot
Runback Button
Interface
TS24/TS35 Touch
Screen Interface
12C Interface
Fire Detector
Interface
Z-axis End
Stop/Gyroscope
Interface
XY Axis End Stop
TTL
Output
12V/24V
Output
Z-axis
Motor
Y-axis
Motor
X-axis
Motor
Motor Drive
Slot
