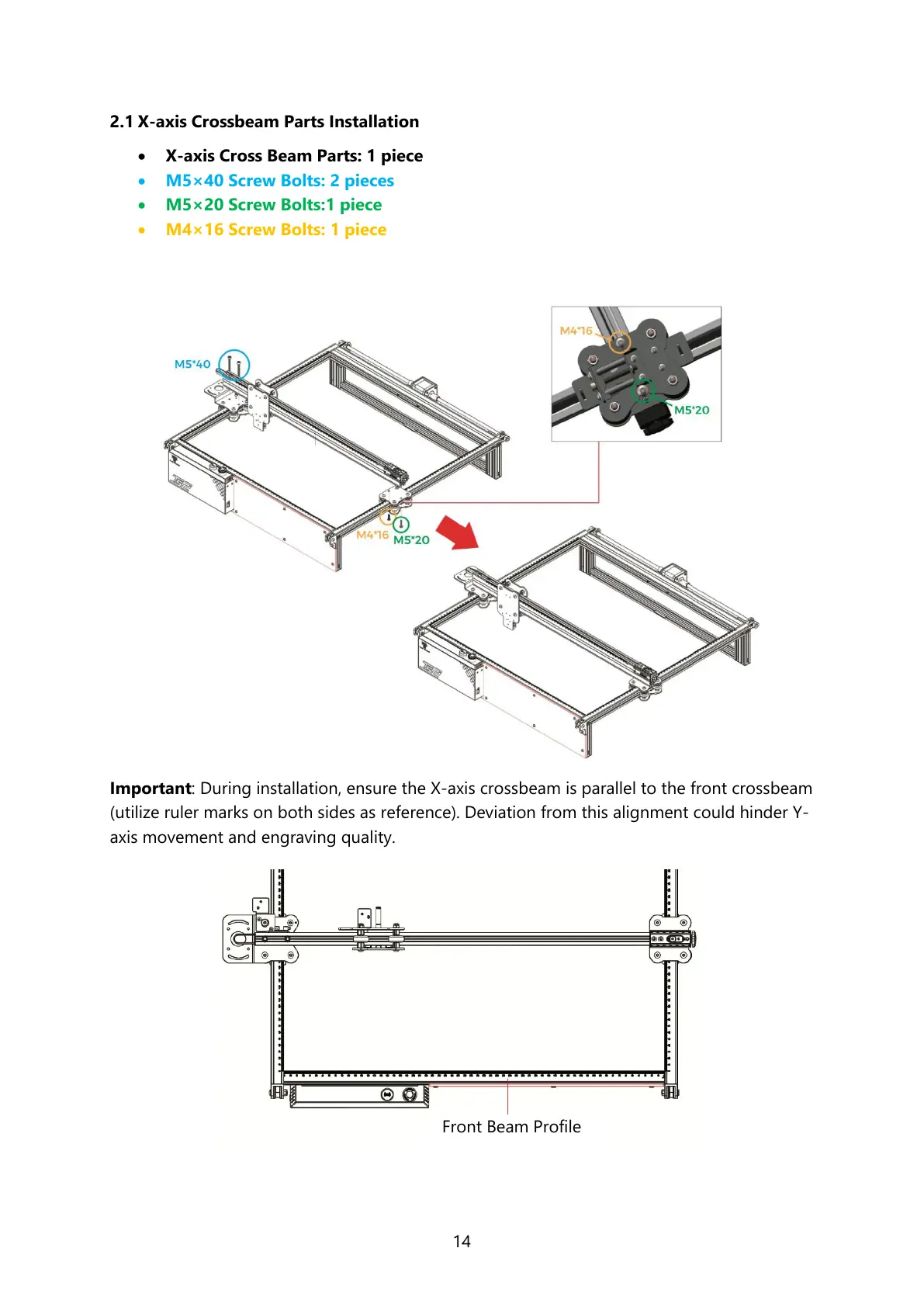

2.1 X-axis Crossbeam Parts Installation
 X-axis Cross Beam Parts: 1 piece
 M5×40 Screw Bolts: 2 pieces
 M5×20 Screw Bolts:1 piece
 M4×16 Screw Bolts: 1 piece
Important: During installation, ensure the X-axis crossbeam is parallel to the front crossbeam
(utilize ruler marks on both sides as reference). Deviation from this alignment could hinder Y-
axis movement and engraving quality.
Front Beam Profile
