17

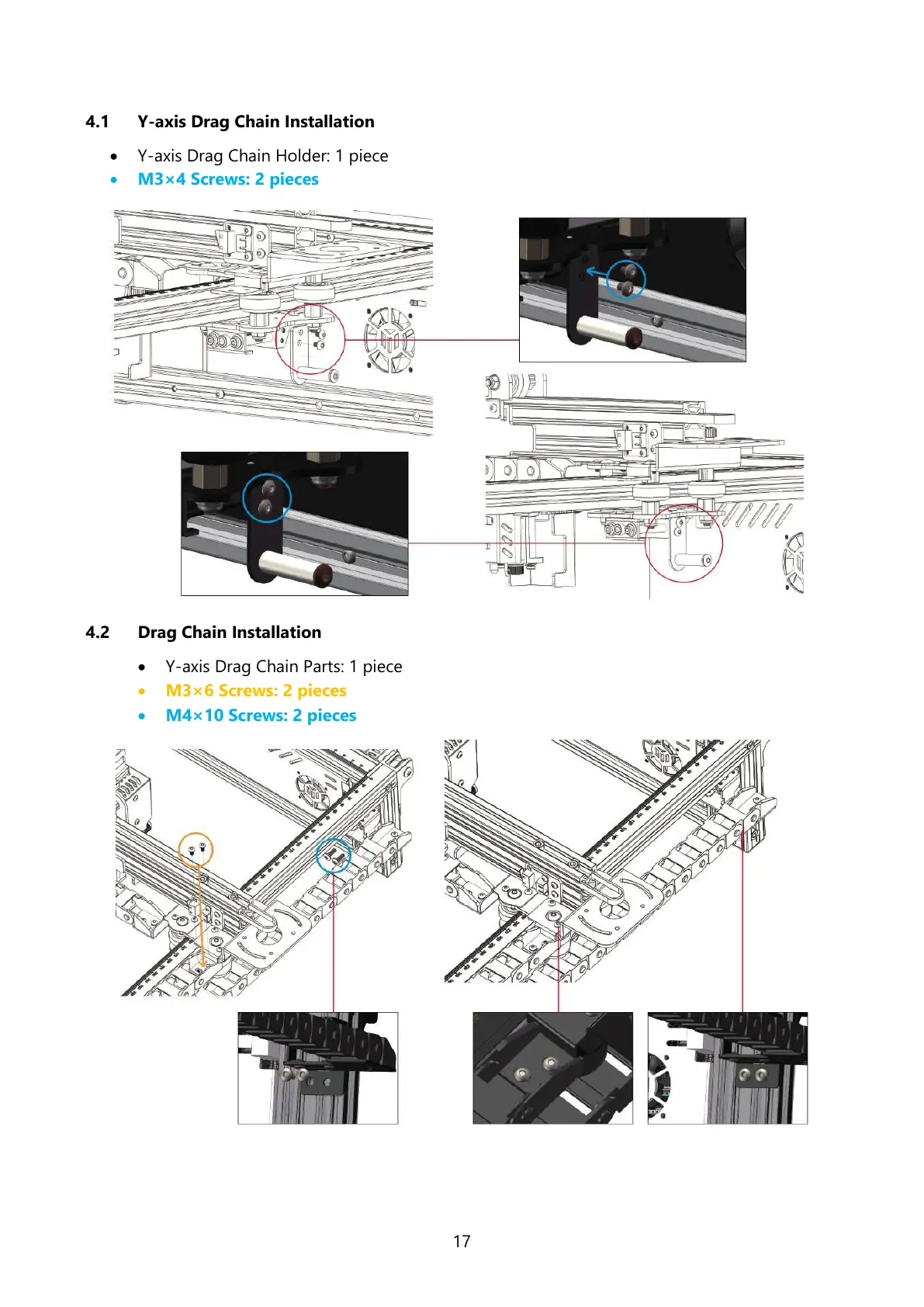

4.1 Y-axis Drag Chain Installation
Y-axis Drag Chain Holder: 1 piece
M3×4 Screws: 2 pieces
4.2 Drag Chain Installation
Y-axis Drag Chain Parts: 1 piece
M3×6 Screws: 2 pieces
M4×10 Screws: 2 pieces
