TWO TREES TTS-20 PRO - Assembling the Machine; Component Installation; Set Up TTS-20 PRO; Alignment and Fixing

0504
Push into the groove according to the shape of
the slider. If you cannot push in the slider,please
adjust the hand screw.

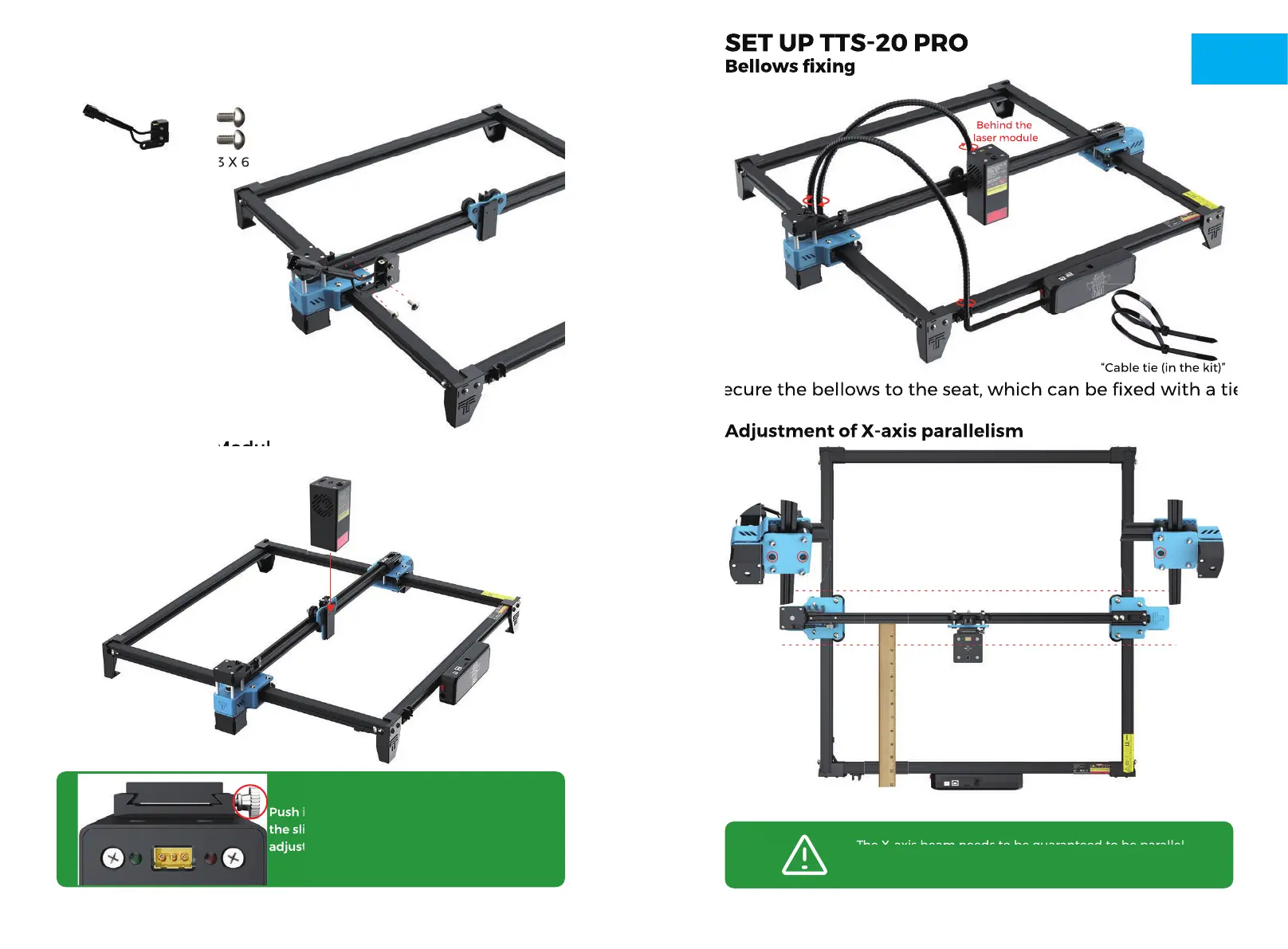

ASSEMBLING THE MACHINE
Installation of X-axis End Stop
Installation Laser Modul
Laser Module
M3 X 6X-axis End Stop
Installation Laser Modul
M3 X 6
Push into the groove according to the shape of
the slider. If you cannot push in the slider,please
adjust the hand screw.
Adjustment of X-axis parallelism
Secure the bellows to the seat, which can be fixed with a tie.
“Cable tie (in the kit)”
SET UP TTS-20 PRO
Bellows fixing
Behind the
laser module
Adjustment of X-axis parallelism
Secure the bellows to the seat, which can be fixed with a tie.
“Cable tie (in the kit)”
SET UP TTS-20 PRO
Bellows fixing
Behind the
laser module
“Cable tie (in the kit)”
The X-axis beam needs to be guaranteed to be parallel,
otherwise it will not engrave properly.
Adjustment of X-axis parallelism
The X-axis beam needs to be guaranteed to be parallel,
Adjustment by loosening the screw at the bottom.
The package does
not include the ruler.
EN
